Rotary SPOA10 Series User Manual

3

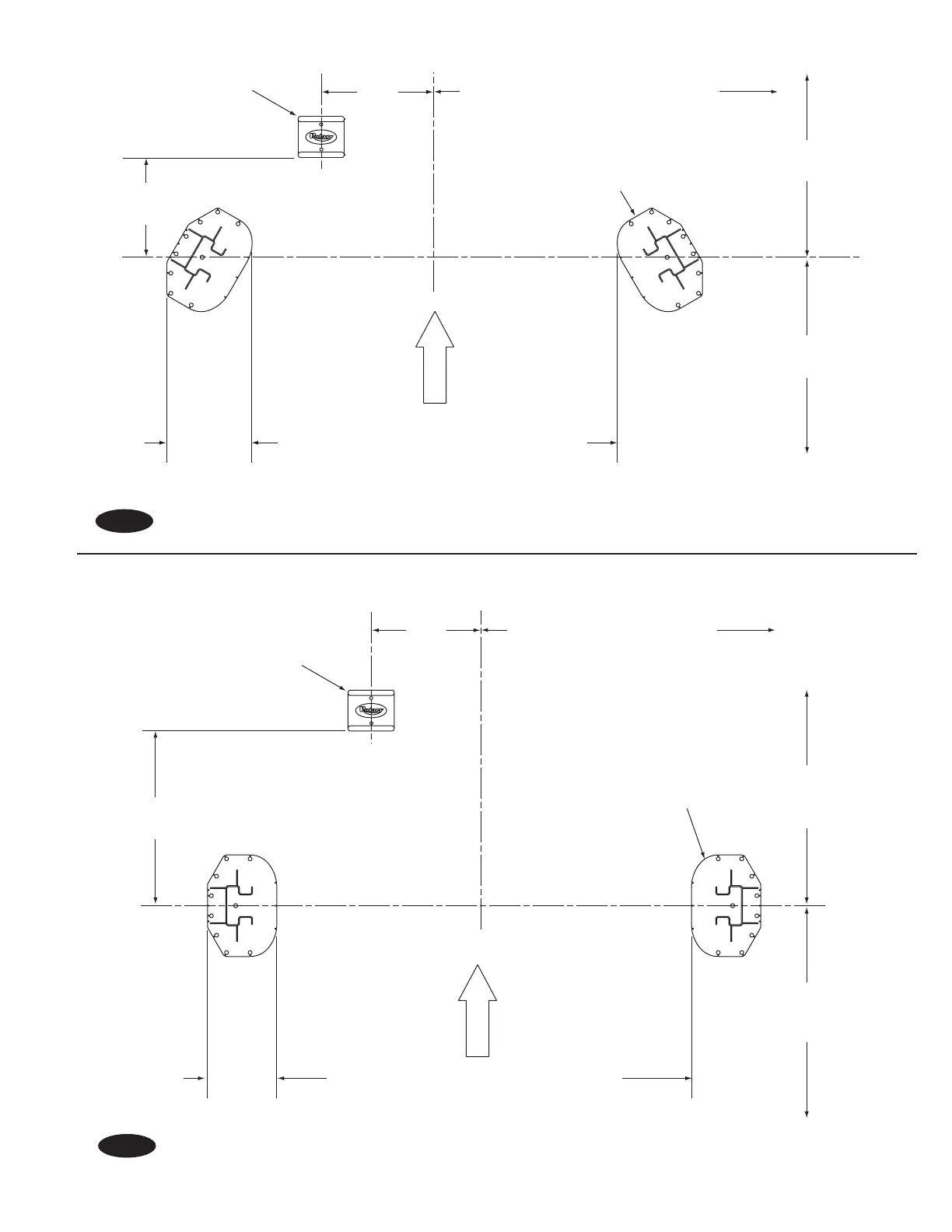

Fig. 1c
Fig. 1d
2' 5"
(737mm)
7' 9-7/8" (2384mm) SPOA10 Seismic Base Plate*
7' 9-7/8" (2384mm) SPOA7 Seismic Base Plate*
21-7/8"
(556mm)
2' 5"
(737mm)
9' 0" (2743mm) minimum
to nearest obstruction
15' 0" (4572mm) minimum
to nearest obstruction
APPROACH
6' 0" (1829mm) minimum to nearest
obstruction or bay. 7' 0" (2134mm)
minimum to nearest wall.
Power Unit Goes
on Passenger Side
Wheel Spotting Dish
*NOTE: Dimension is from Inside of Baseplate to Inside of Baseplate.
4' 3"
(1295mm)
8' 6-1/4" (2597mm) SPO10 Seismic Base Plate*
17-11/16"
(449mm)
2' 5"
(737mm)
6' 0" (1829mm) minimum to
nearest obstruction or bay.
7' 0" (2134mm) minimum to
nearest wall.
11' 0" (3353mm)
minimum to nearest
obstruction
APPROACH
13' 0" (3963mm)
minimum to nearest
obstruction
Power Unit Goes
on Passenger Side
Wheel Spotting Dish
*NOTE: Dimension is from Inside of Baseplate to Inside of Baseplate.

Rotary SPOA10 Series Specifications

General

Capacity	10, 000 lbs
Motor	2 HP
Power Source	Electric
Voltage	208-230V
Overall Width	132"
