Rotary SPOA10 Series User Manual

8
SPO10
3/8"-16NC x 3/4" HHCS
& Flanged Locknut
114"
(2896mm)
11-3/4"
(299mm)
SPOA10
3/8"-16NC x 3/4" HHCS
& Flanged Locknut
111-3/8"
(2829mm)
7-3/4"
(197mm)
7-3/4"
(197mm)
7-3/4"
(197mm)
SPOA7
SPOA10NB
(Narrow Bay
Setting)
3/8"-16NC x 3/4" HHCS
& Flanged Locknut
105-3/8"
(2677mm)
SPOA7NB
(Narrow Bay Setting)
3/8"-16NC x 3/4" HHCS
& Flanged Locknut
97-3/8"
(2473mm)

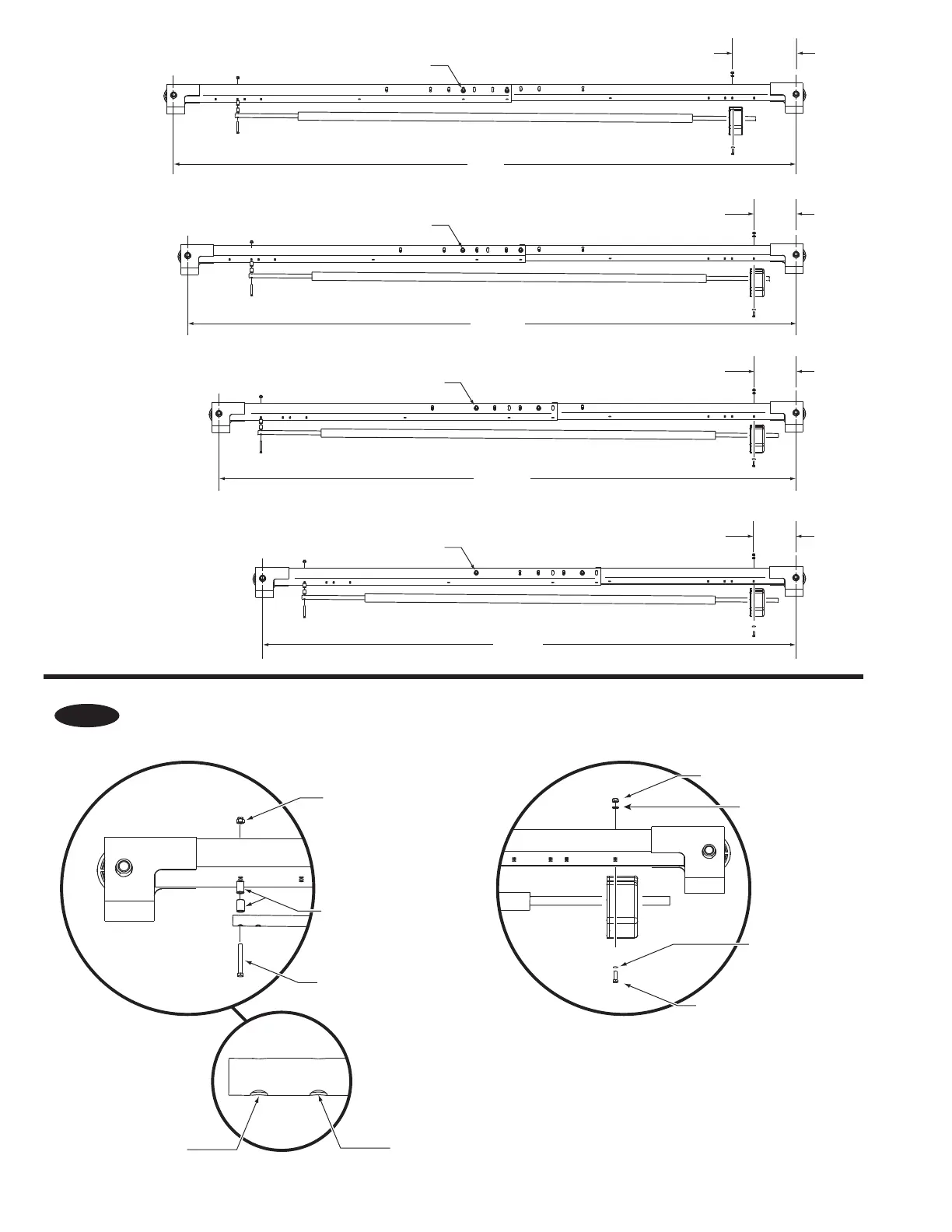

Hardware Detail For Overhead Assembly
1/4"-20NC x 2-3/4" HHCS
2 Spacers
1/4" Lock Nut
Open Bar Side
HOLE
DETAIL
SPO10
SPOA7
SPOA10NB
SPOA10
1/4"-20NC x 3/4" HHCS
1/4" Lock Nut
1/4" Star Lock
Washer
1/4" Flat
Washer
Switch Box Side
Fig. 11

Rotary SPOA10 Series Specifications

General

Capacity	10, 000 lbs
Motor	2 HP
Power Source	Electric
Voltage	208-230V
Overall Width	132"
