Rotary SPOA7 Series User Manual

2
4' 3"
(1295mm)
8' 11-5/8" (2734mm) SPO10*
15"
(381mm)
2' 5"
(737mm)
6' 0" (1829mm) minimum to
nearest obstruction or bay.
7' 0" (2134mm) minimum to
nearest wall.
11' 0" (3353mm)
minimum to nearest
obstruction
APPROACH
13' 0" (3963mm)
minimum to nearest
obstruction
Power Unit Goes
on Passenger Side
Wheel Spotting Dish
*NOTE: Dimension is from Inside of Baseplate to Inside of Baseplate.
2' 5"
(737mm)
7' 9-3/8" (2372mm) SPOA7*
7' 1-3/8" (2168mm) SPOA7 (Narrow Bay Setting)*
7' 9-3/8" (2372mm) SPOA10 (Narrow Bay Setting Including BMW Models-5BX)*
8' 3-3/8" (2524mm) SPOA10*, SPOA7 With Hybrid Arm/Pad*, SPOA7 With Low Arms
19-1/16"
(484mm)
2' 5"
(737mm)
9' 0" (2743mm) minimum
to nearest obstruction
15' 0" (4572mm) minimum
to nearest obstruction
APPROACH
6' 0" (1829mm) minimum to nearest
obstruction or bay. 7' 0" (2134mm)
minimum to nearest wall.
Power Unit Goes
on Passenger Side
Wheel Spotting Dish
*NOTE: Dimension is from Inside of Baseplate to Inside of Baseplate.

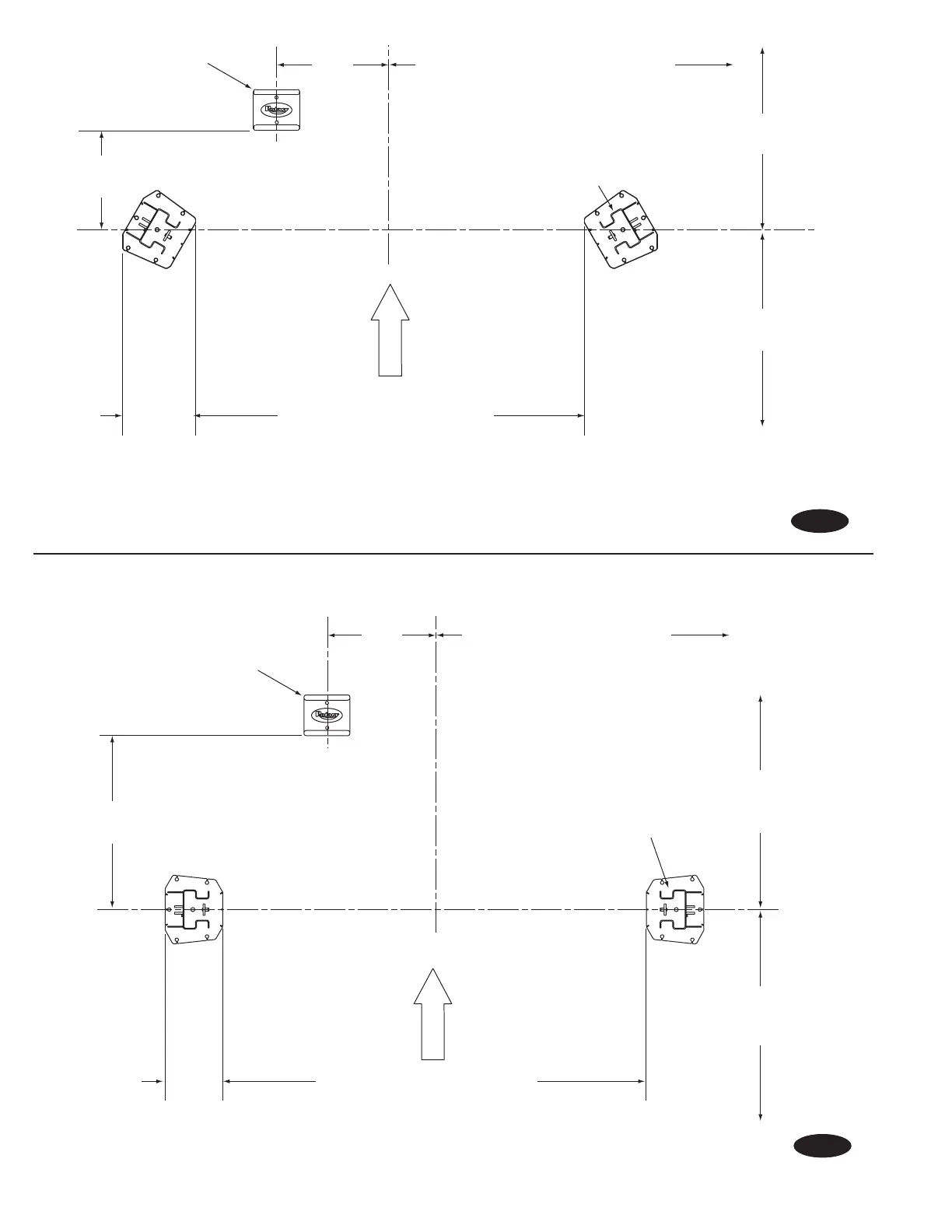

Fig. 1a
Fig. 1b

Rotary SPOA7 Series Specifications

General

Capacity	7, 000 lbs
Voltage	208-230V
Power Source	Electric
Drive-Thru Clearance	96 inches
Operation	Hydraulic
