2 x Product description
10
BA ROTEX HPSU compact 2 - 04/2011
1 Solaris - flow (1 swivel nut)
2 Cold water supply (1" outer thread)
3 Hot water (1" outer thread)
4 Heating flow (1" outer thread)*
5 Heating return flow (1" outer thread)*
6Circulation pump
7a Recommended accessories:
Non-return valves (2 each), 16 50 70
8 Cylinder container (double-wall polypropylene
sleeve with PUR rigid foam heat insulation)
9 Filling and drain connection (Tr. 32x3 outer thread)
with valve insert (with connection of a ROTEX
Solaris solar installation: Solaris - return)
10 Connection for equalising pipe (AGL,
16 01 08) or extension set for another
heat source (EWS, 16 01 10)
12 Corrugated stainless steel pipe heat exchanger
for domestic hot water heating
13 Corrugated stainless steel pipe heat exchanger
to storage tank charging
14 Stainless steel corrugated pipe heat exchanger
for heating support
15 Connection for optional booster heater
(R 11/2" internal thread)
17 Connection for optional backup heater
(R 11/2" internal thread)
19 Solar - flow stratification pipe (usable for
connection of optional ROTEX Solaris solar
installation)
20 Fill level indicator (water circuit)
21 Immersion sensor socket for storage
temperature sensors t
DHW1
and t
DHW2
22 Non-pressurised storage tank water
23 Solar zone
24 Hot water zone
25 Safety overflow connection
(Tr. 32x3 outer thread)
26 Handle
27 Type plate
28 Protective cover
30 Underfloor heating heat exchanger
31 Connection refrigerant liquid line
HPSU compact 508: CuT, Ø 6.4 mm (1/4"),
HPSU compact 516: CuT, Ø 9.5 mm (3/8")
32 Connection refrigerant gas line
CuT, Ø 15.9 mm (5/8")
36 Pressure gauge (heating circuit)
3UV1 3-way diverter valve hot water/heating
3UVB 3-way switch valve (temperature limiter)
HPR Control housing with elec. terminal strip
HPR1 Main control unit
HPRA1
Additional control unit
RPS3 Optional: Solaris regulation and pump unit
Safety devices
* Ball cock (1" internal thread) is included in
the delivery

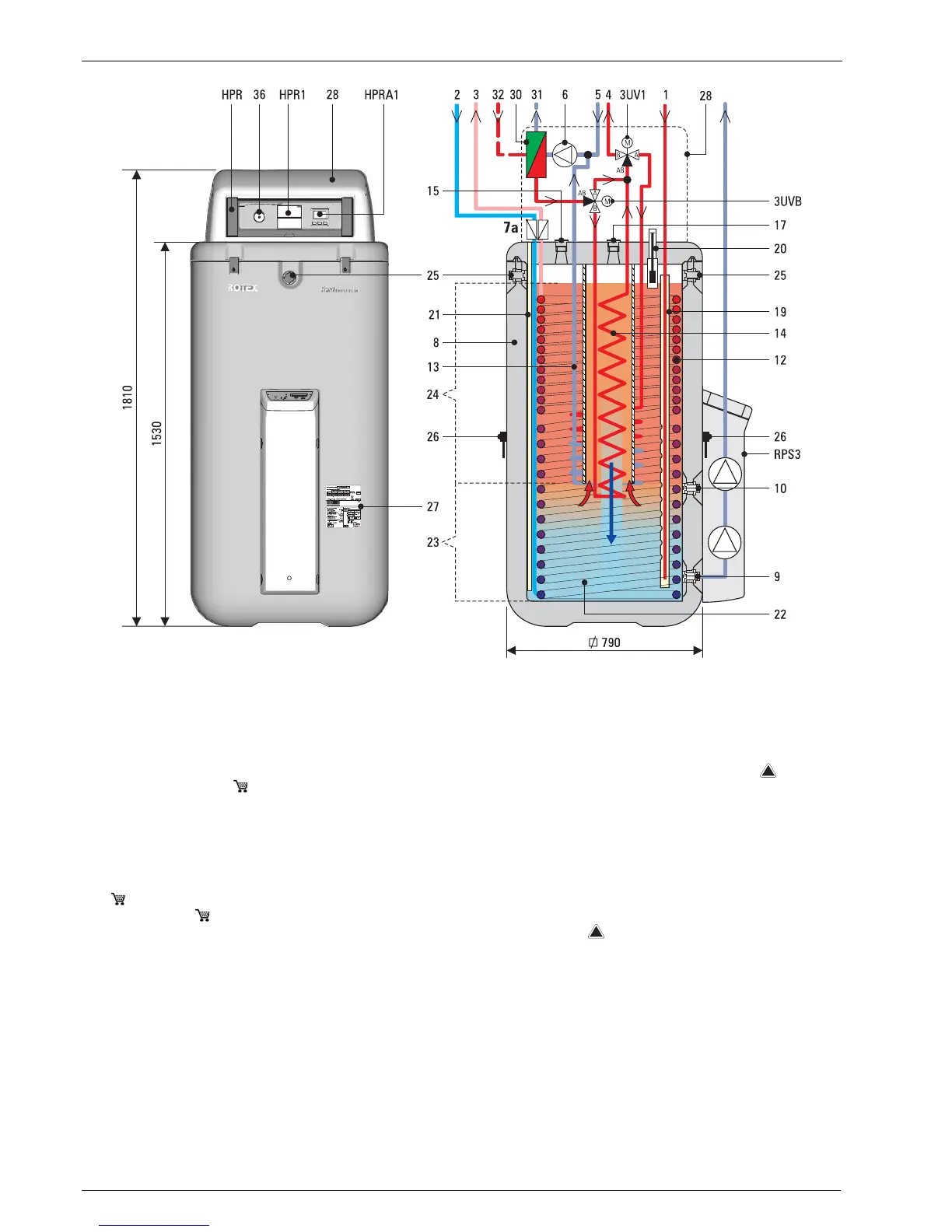

Fig. 2-3 Connections and dimensions HPSU compact (side view and interior)
!
!
