Rotex HPSU Installation Manual

4 Installation
Installation manual
5
RBLQ05+07C2V3
ROTEX HPSU monobloc compact outdoor unit
4P501825-1 – 2017.08

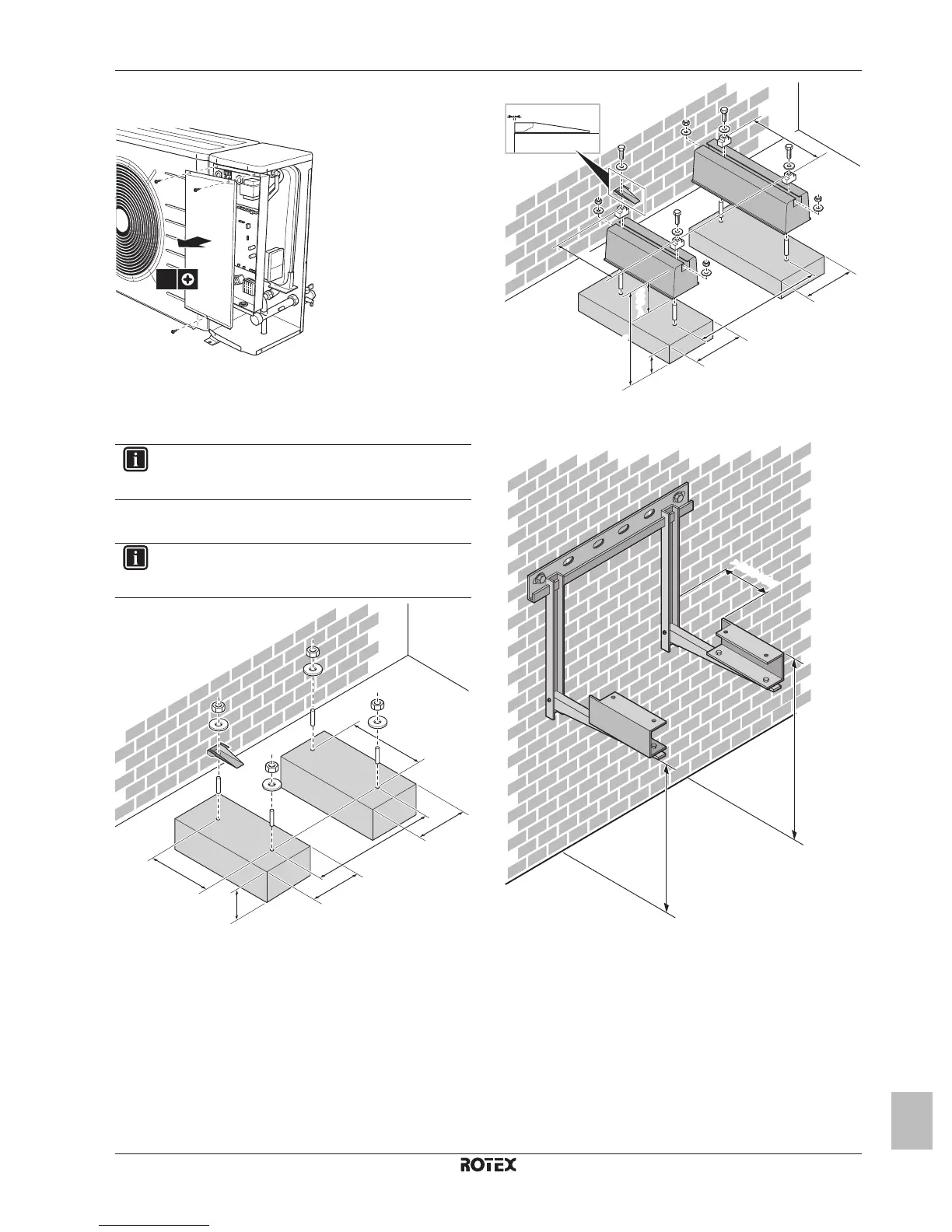

4.1.2 To open the switch box cover of the
outdoor unit
3×
4.2 Mounting the outdoor unit
4.2.1 To provide the installation structure
INFORMATION
For information on the available options, contact your
dealer.
If the unit is installed directly on the floor, prepare 4 sets of M8 or
M10 anchor bolts, nuts and washers (field supply) as follows:
INFORMATION
The maximum height of the upper protruding part of the
bolts is 15mm.
283
<100
(mm)
<100
330
>300
740
In any case, provide at least 300mm of free space below the unit.
Additionally, make sure the unit is positioned at least 100mm above
the maximum expected level of snow.
(mm)
<150
<150
a
330
>300
283
740
0 mm
>100
a Maximum snowfall height
It is possible to install the unit on brackets to the wall:
>250/400
>300
>250/400
(mm)
a
a Maximum snowfall height
