ROTOTILT ICS Direct - Overview; Control System Components; System Restrictions

© Rototilt Group AB 2018-04-27
1 2
3
4 5
EN
English

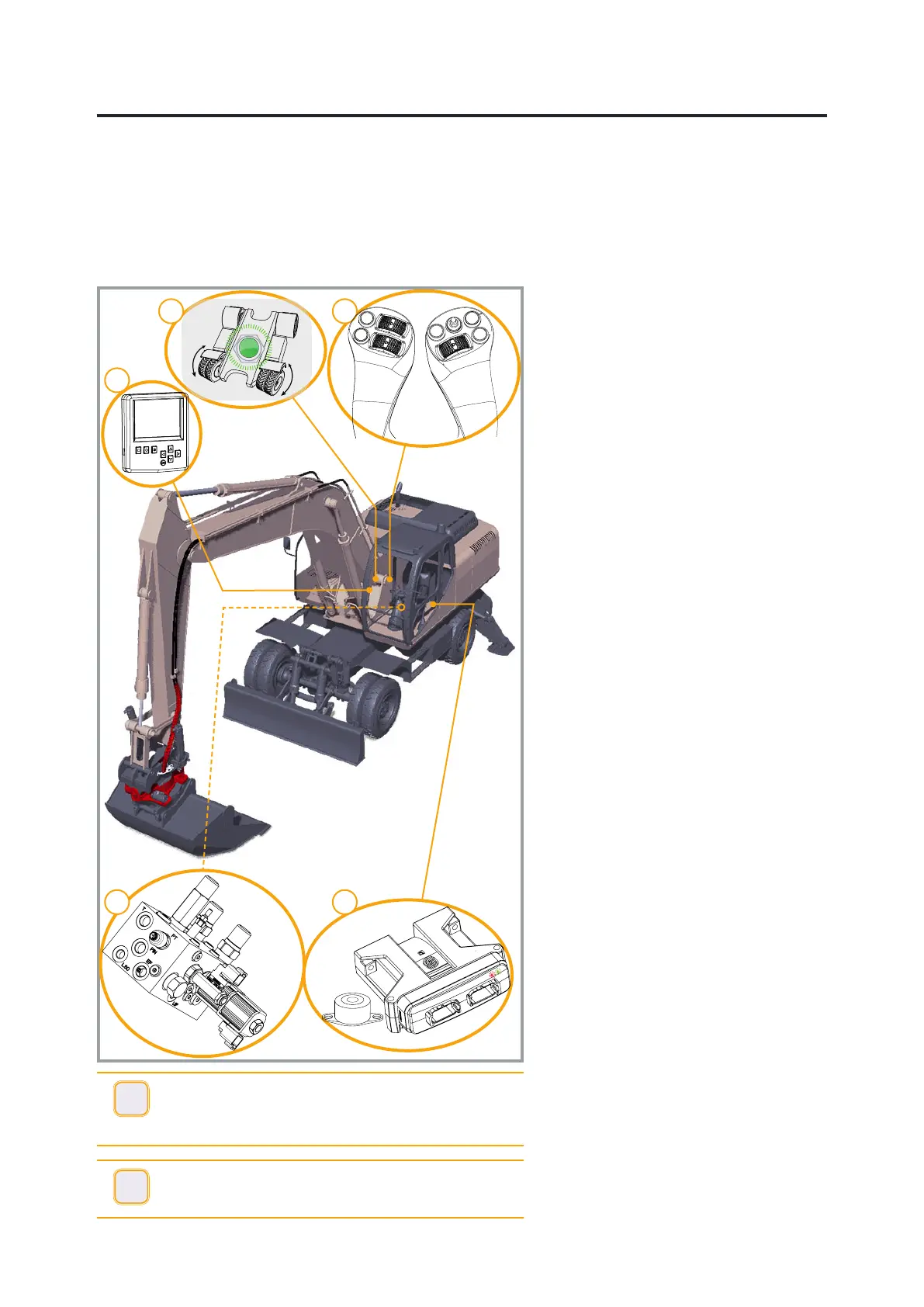

Overview
Control system of the ICS
Direct type
A base machine/excavator equipped with
ICS Direct wheel control has the following
components installed:
1. Indicator lamp
Decal - wheel control
2. Handles with controls to operate the
base machine/excavator, ordered
separately
3. Display - included in the control
system ICS,
ordered separately
4. Valve block - Wheel control
5. Control unit
Buzzer
!
IMPORTANT - Read through the instructions for the
control system, tiltrotator and base machine/excavator use
before starting work. Pay particular attention to the safety
instructions.
!
IMPORTANT -
If you suspect alternative control if malfunctioning, always
use the base machine/excavator's controls.
The product described in the document consists of components for the ICS Direct wheel control system.
The overviews show standard equipment and options.
Refer to the illustrations and lists below and on the following pages.
ICS Direct is design to facilitate the movement of the base machine/excavator when working. ICS Direct
wheel control is manoeuvred using switches and or rollers in the handles. In most cases this permits the
operator to work in a more ergonomic position.
Restriction
The system can and may not be used to
drive the base machine/excavator at a
higher than approved speed.
The speed restriction must be tested
during evasive action testing in
accordance with ISO 5010:2007, 10.4.
The test determines the approved speed
for alternative steering.
The highest permitted speed may never
exceed 20 km/h.
The base machine/excavator’s controls
for operation always have master priority
over alternative steering.
Steering wheel movement must under all
circumstances shut-off alternative control.
