ROTOTILT ICS Direct - System Operation; Activating and Deactivating Control

© Rototilt Group AB 2018-04-27

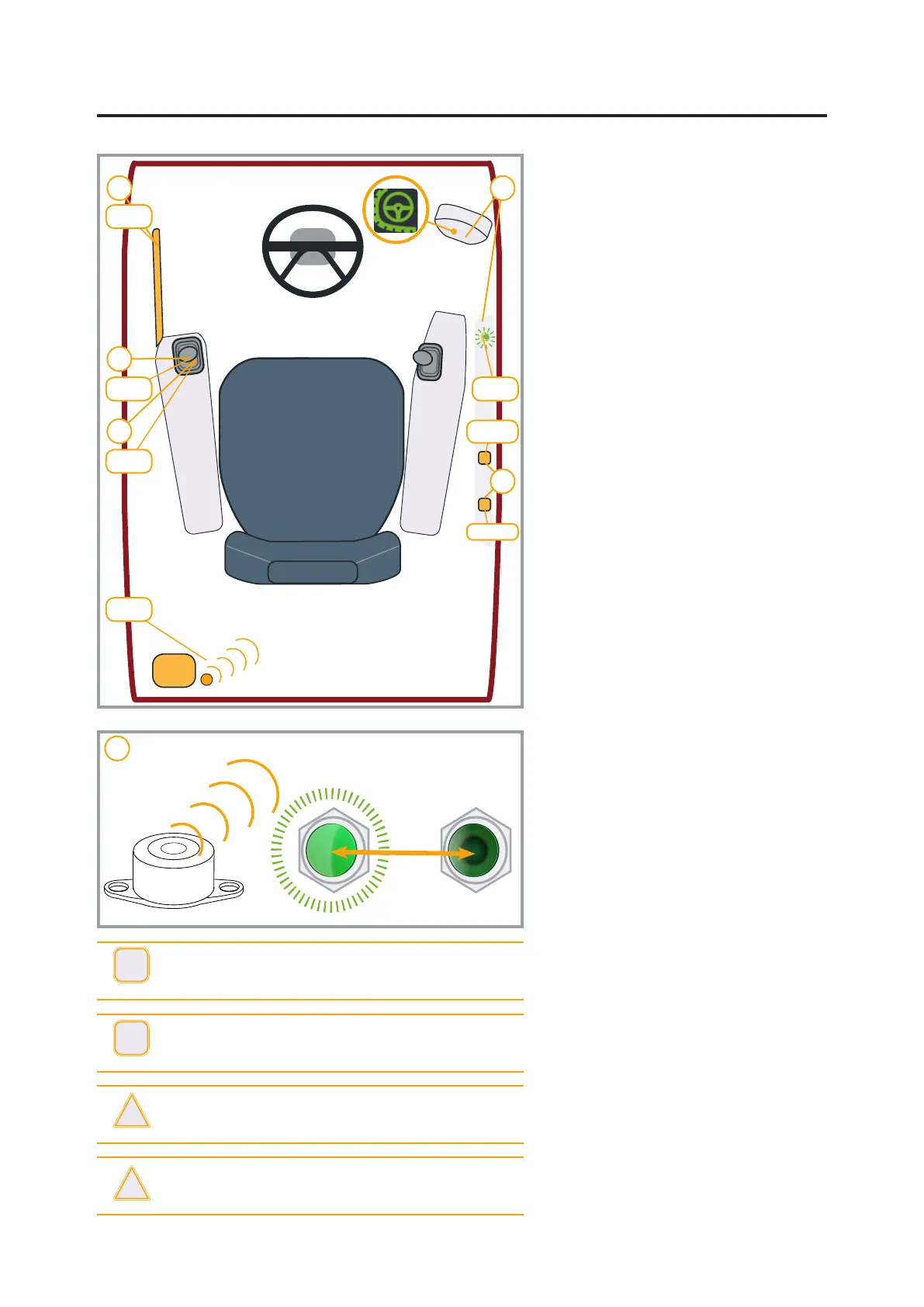

Inactivate
5
Activate
Sound
1
3
4
Shut off
Lever
Light
Warning Flashing light
Sound 3 sec.
6
Drive Mode
Switch
Travel Limit
2
EN
English
Operation
Activate alternative control
1. The operation inhibitor must be
deactivated, (usually occurs in the
horizontal position).
2. Turn the drive mode switch to work
mode. If there is a drive mode switch
for the speed, this should be turned
to low speed mode.
3. Activate alternative control with the
connected switch in the handle.
4. The control system's indicator lamp
lights to indicate that alternative
control is activated.
The alternative control symbol on the
display is shown.
The base machine/excavator’s controls
for operation always have master priority
over alternative steering.
Deactivate
ICS Direct is deactivated as follows:
5. Switch off alternative control with the
switch in the handle.
The control system's indicator lamp
goes out to indicate that alternative
control is deactivated.
The symbol is not shown on the
display.
or
6. Use the base machine/excavator’s
control for steering (wheel).
Alternative steering always has a
lower priority than the base machine/
excavator’s control. The control
system's indicator lamp ashes and
the buzzer sounds for 3 seconds to
warn that the system is switched off.
or
7. Turn the drive mode switch to
transport mode.
Warning signals as above.
!
IMPORTANT - If you suspect alternative control if
malfunctioning, always use the base machine/excavator's
controls.
i
INFO - If the voltage to the base machine/excavator fails,
the drive mode switch must be turned to work and
transport mode, as a function control.
!
WARNING!
Alternative steering must not be possible to use at a
higher than permitted and tested speed. Max. 20 km/h.
!
WARNING!
Steering wheel movement must under all circumstances
shut-off alternative control.
Operation
When alternative control is activated the
base machine/excavator is operated as
follows:
Drive (forwards and backwards) with
the right-hand handle. Steering (left and
right) with the left-hand handle.
2200401_ _7225
