INSTALLATION TIPS
How to use the quick-connect fittings.
TO DISCONNECT:
• Remove the “Blue Lock Clip” from the fitting.
• Use your thumb and index finger to press down the lock sleeve. Use your
other hand to pull out the tubing from the fitting (Figure 3).
Note: Do not try to pull out the tubing directly. This will damage the fitting and cause
leakage.
ASSEMBLY & INSTALLATION
Before installation & assembly, ensure the system, tubing connections and
the external power supply fit under your sink. For your own protection, wear
safety glasses and take the necessary safety precautions before beginning
installation.
Codes in the state of Massachusetts require installation by a licensed
plumber and do not permit the use of saddle valves.
If you live in the state of Massachusetts, review plumbing code 248-CMR
of the Commonwealth of Massachusetts before proceeding with the
installation.
REQUIRED TOOLS - NOT INCLUDED
TO CONNECT:

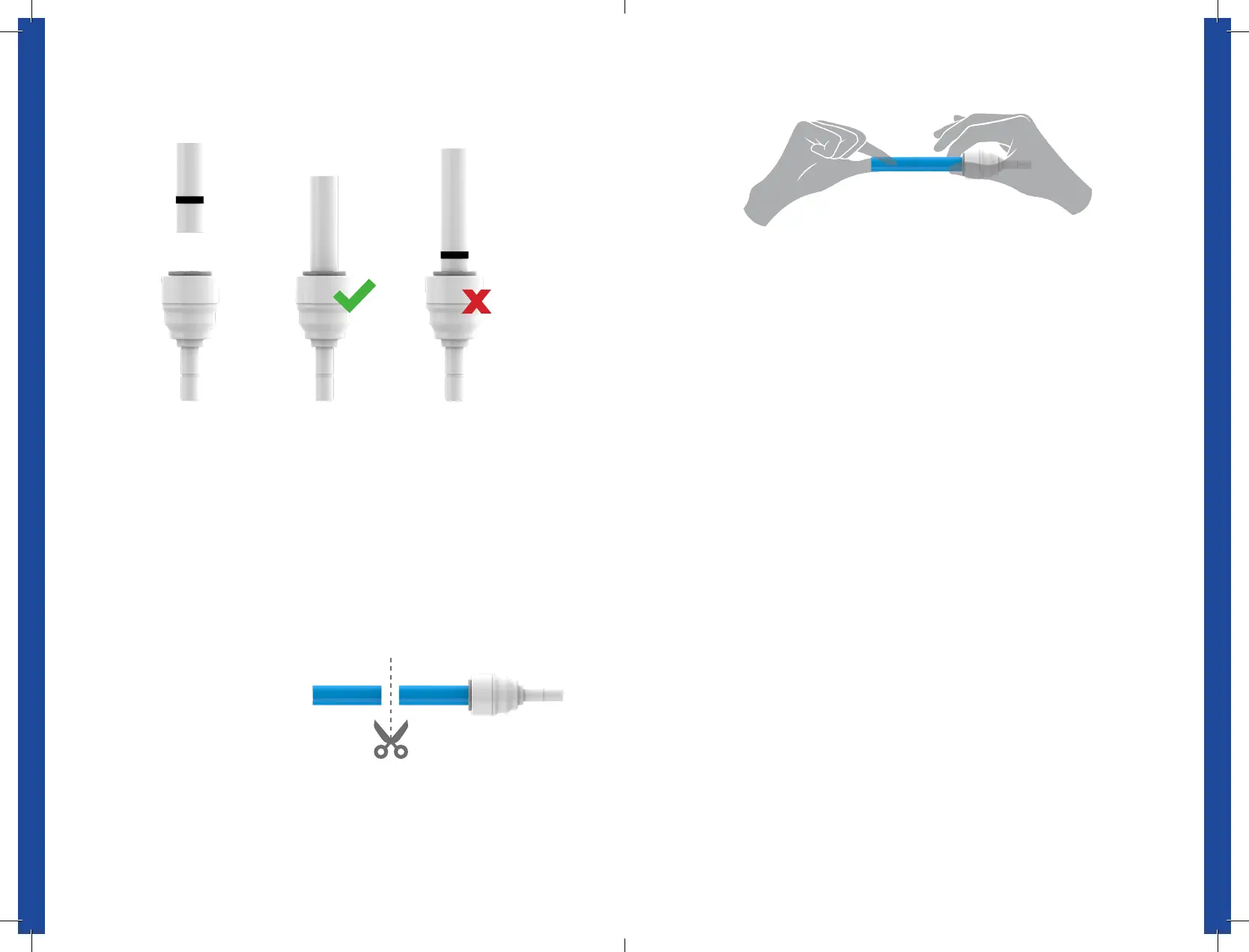

Note: There is an existing mark (Figure 1) at the end of the tubing for you to confirm if
the tubing is fully inserted into the fitting.
• Push the tubing into the fitting until you reach the mark on the tubing.
Note: If the tubing is not fully inserted, no seal will be created, and leakage will occur.
• When the tubing is fully inserted, put the “Blue Lock Clip” on the fitting. It
will lock the tubing in place and prevent it from falling o.
FIGURE 1
Note: If the tubing is too long, cut
it to a suitable length with a sharp
utility knife or scissors. Cut the tubing
squarely and cleanly (Figure 2). Make
sure the tubing is fully inserted.
FIGURE 2
FIGURE 3
• 1/4” Drill Bit for Drain Line
• 1” Drill Bit for Faucet Hole
• Adjustable Wrench
• Pliers
• Screwdriver
• Utility Knife or Scissors
• Flashlight
• Towels/Bucket
• Corded or Cordless Drill
• Tape
• Safety Googles
• Dust Mask
• Ear Protection
To Next Page
