15
RESPIRATOR SETUP AND CARE

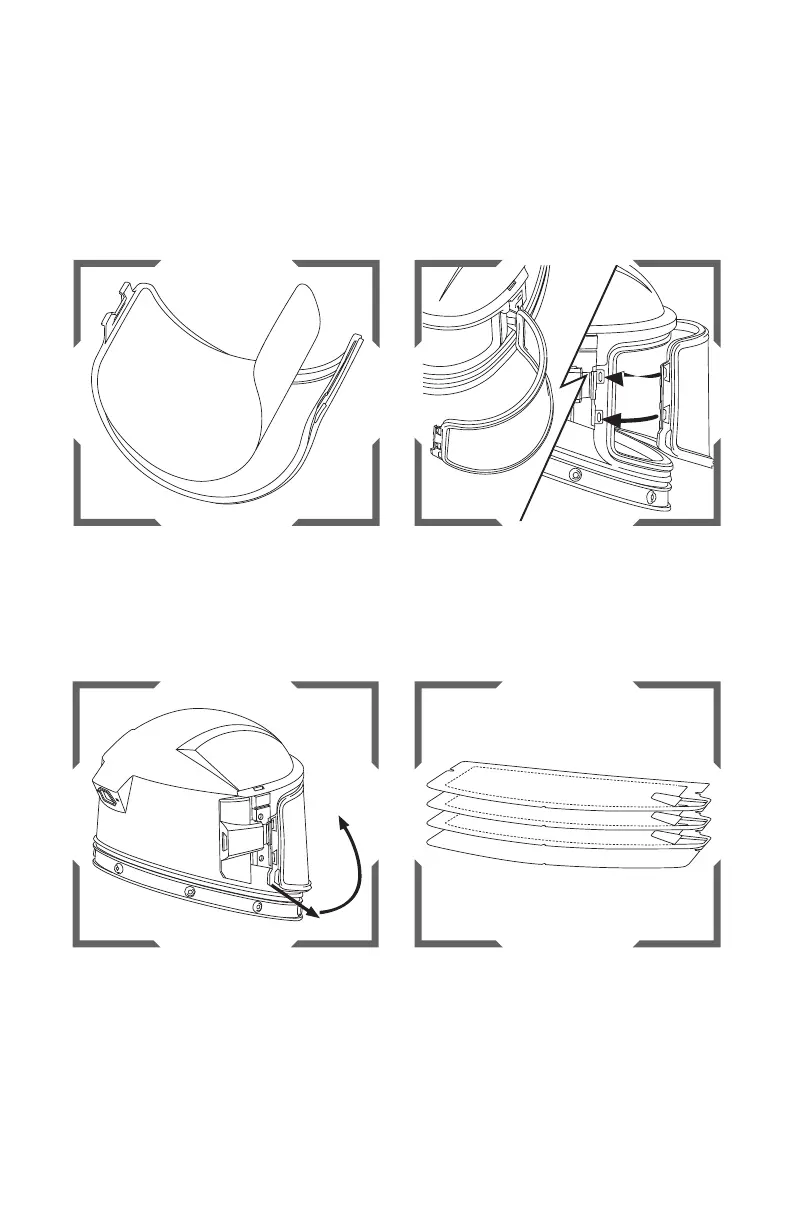

Place 3 Tear Off Lenses (N3-725) and 1 Outer
Lens (N3-724) on top of each other, make
sure the tabs are folded the same way.
Place RPB
®
Inner lens (NV3-722) into the left
of the Inner lens frame (NV3-723) and work
it round locating it into the frame and nally
clipping it into place on the right.
To remove the Inner lens frame pull frame
from the visor hinge mount rolling it round
and then dislocate the locating pins from the
Visor latch mount.
Secure locating Inner lens frame pins into
visor latch mount rolling the frame round the
inner lens seal and securing it onto the clips
at the visor hinge mount.
INNER LENS
TEAR OFF AND OUTER LENSES
FIGURE 3.1 FIGURE 3.2
FIGURE 3.3 FIGURE 3.4
