19

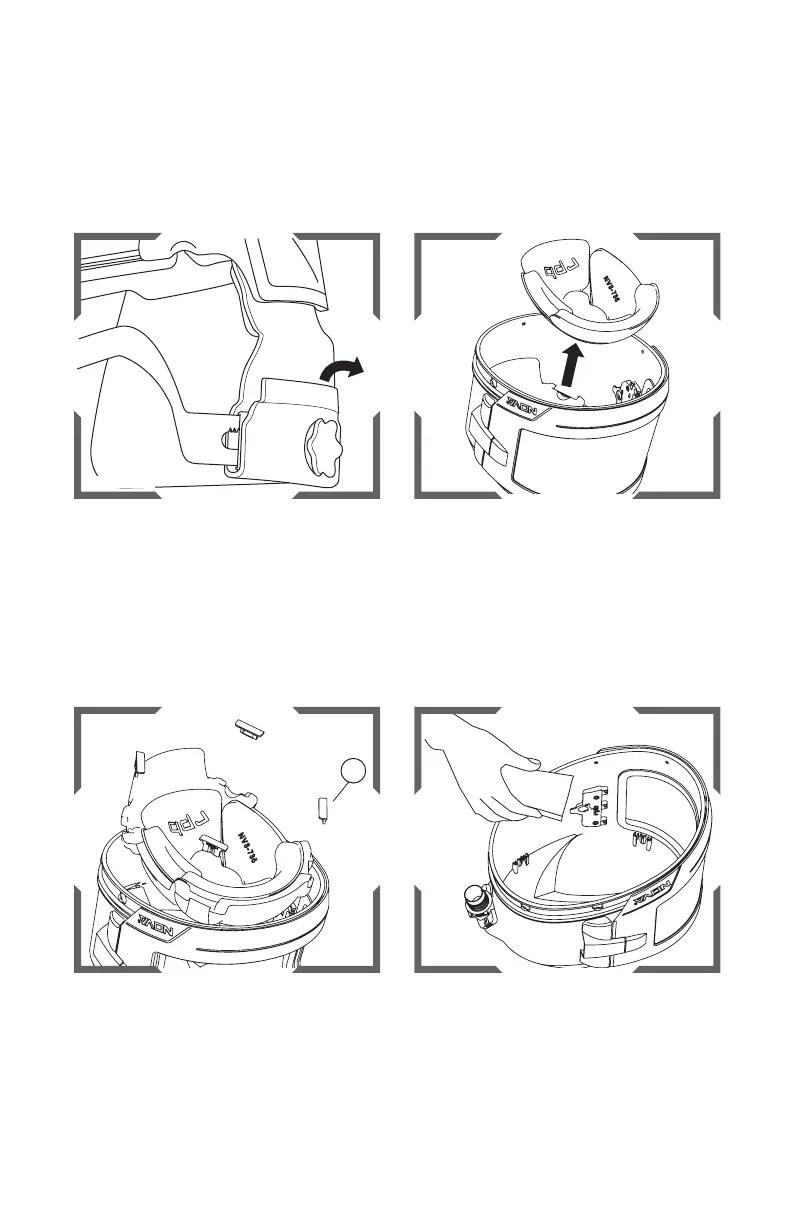

Remove Head Liner padding from the head
liner, the padding can be washed or disposed.
The padding is secured with hook fasteners.
Remove rear Pad
FIGURE 4.4
FIGURE 4.3
To remove the Head Liner, rst remove the
4 clips (a) then lift out. To clean, rinse in
a light detergent and water, or place in a
conventional washing machine. Do not clean
with volatile chemicals. Lay at to dry.
The inside of the helmet can be wiped clean
with a liquid detergent.
FIGURE 4.5
FIGURE 4.6
