RPS Falcon 200 - Adjustment of Rear Brake

15

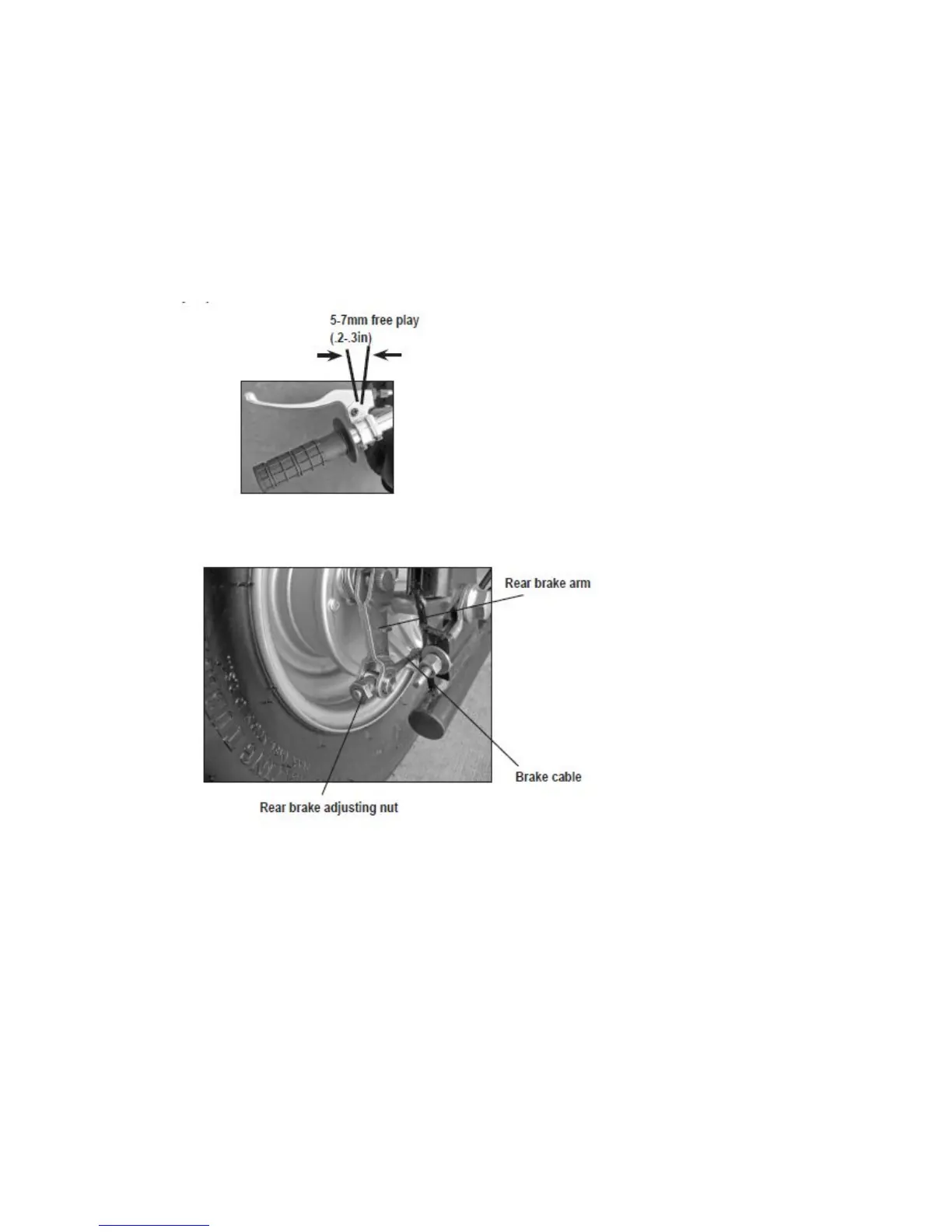

ADJUSTMENT OF REAR BRAKE
1. The front brake hand grip should have free operating movement of
5-7mm (.2-.3in) .
2. To make adjustment, turn rear adjusting nut clockwise to reduce and counterclockwise to increase the
free operating movement of the hand brake.
3. Brake shoes should be replaced by a qualified service technician once brake shoes are
worm.
