ADJUSTMENT OF CHAIN

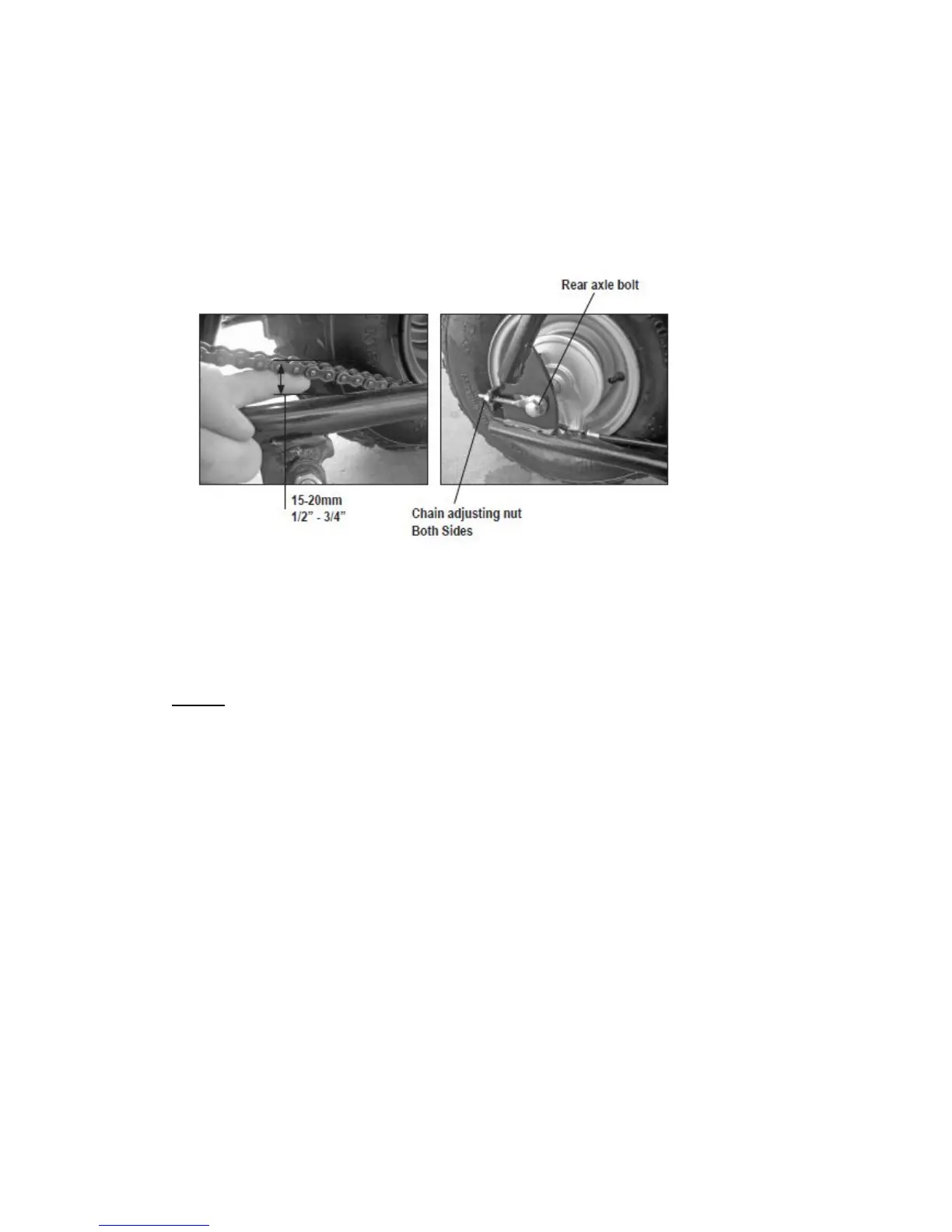

1. When chain adjustment is needed, loosen rear axle bolt.
2. Turn the chain adjusting nuts on the left and right sides to adjust the tension of the chain and to align
the marking of the chain adjuster with the engraved lines in the similar position on both sides.
3. Tighten rear axle bolt by a torque of 50-60Nm (37-44 ft.lb.).
4. Repetitively check the tension of the chain.
GREASING PROCEDURES TO THE DRIVING CHAIN
1. Shut off the engine
2. Add light amounts of machine oil or chain grease to the driving chain. (Too much machine oil or chain
grease may cause splattering to occur.)
Attention:
The chain should be replaced when the adjusting limit has reached it’s maximum.
