CSD5 Servo Drive
1-2 Before Using the CSD5 Servo Drive
Model Number of the
Drive

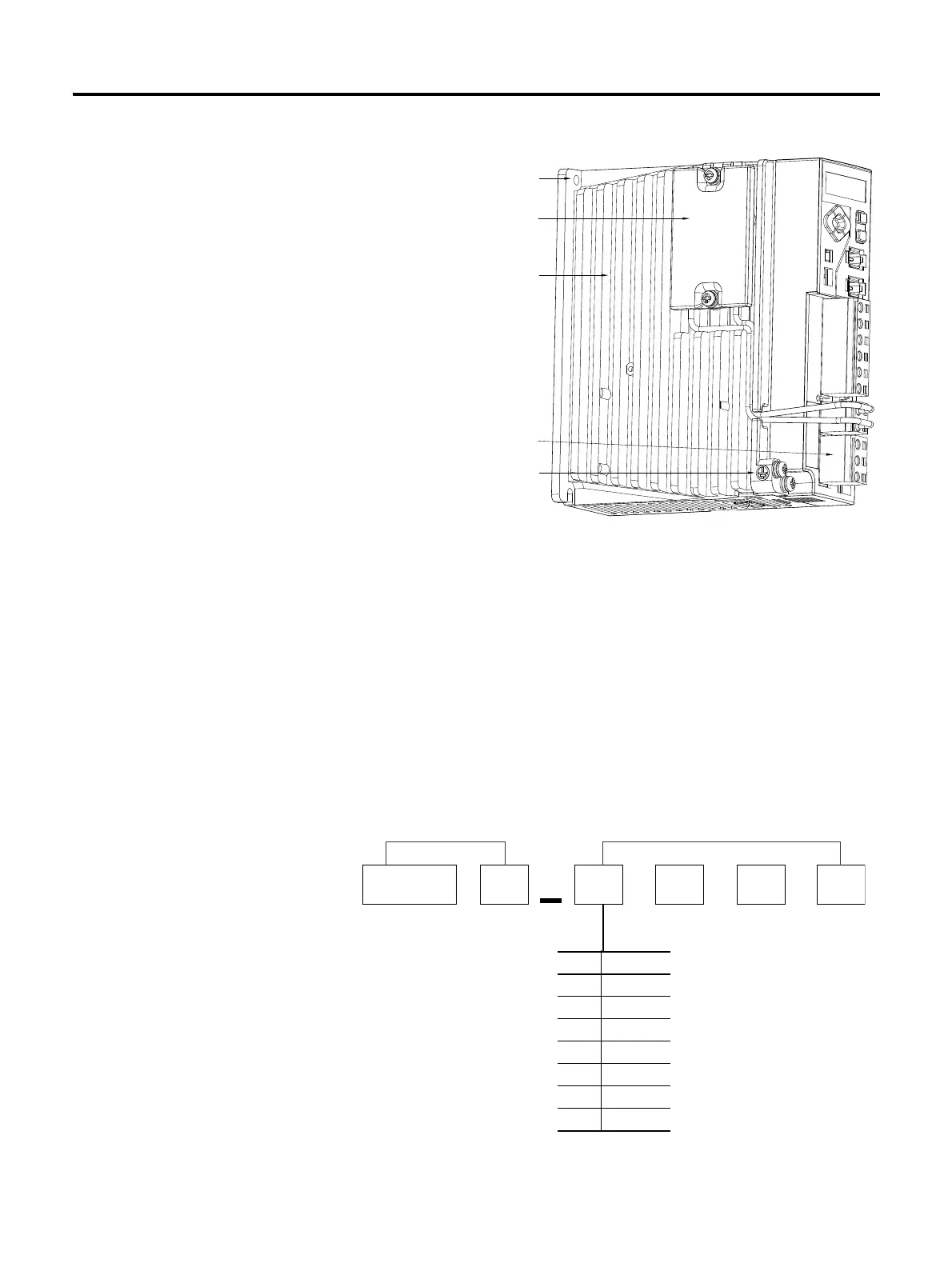

The following figure describes the model name on the nameplate of the servo
drive.
• The nameplate is attached on the side of the drive case. Check the
model name on the nameplate, and check if it corresponds to the
product ordered.
• The drive type is RS Automation Servo Drive CSD5 Series.
• The serial number is included on the nameplate. Be careful not to erase
the serial number during the use.
Mounting Hall (Top, Bottom)
Regenerative Resistor
(400 [W] or Higher Attached)
Heat Sink
Wiring Socket (6P, 2P, 3P) 3 PART
Ground Terminal (Heat Sink)
KNX 3 - K A P 0
Drive Type Example of Servo Drvicve Specification
Mask Rated
A5 50 [W]
01 100 [W]
02 200 [W]
04 400 [W]
08 800 [W]
10 1 [kW]
15 1.5 [kW]
