1 CSD5 Servo Drive
Chapter 1
Before Using the CSD5 Servo Drive
This chapter describes the general matters and optional specifications that you
should know before using the CSD5 SERVO DRIVE.
Product Type and Each
Part Name

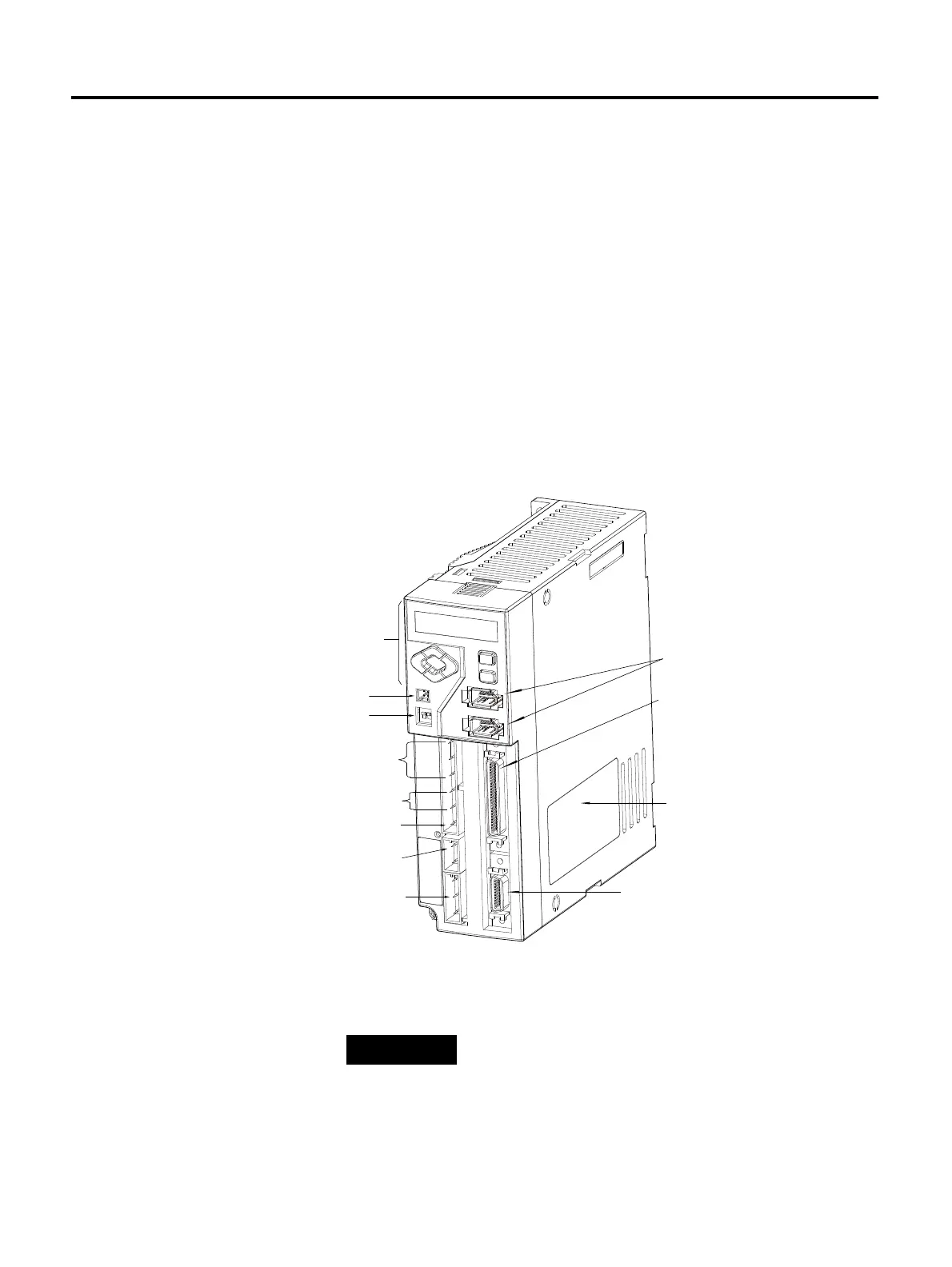

The following figure introduces the name of each part of the servo drive.
Drive Nameplate
I/O Signal Connector <I/O>
Encoder Cable Connector <Motor
Feedback>
Communication and Operator
Connector
AC Main Power Input Terminal
Control Power Input Terminal
DC Link Negative Output
Regenerative Resistor Terminal
Motor Cable Terminal
Operator
Analog Output Terminal
Terminating Resistance Setting
TIP
For more detail information about Operator, please refer to
“ Chapter 4 Operator, Basic Setting and Startup”.
