48

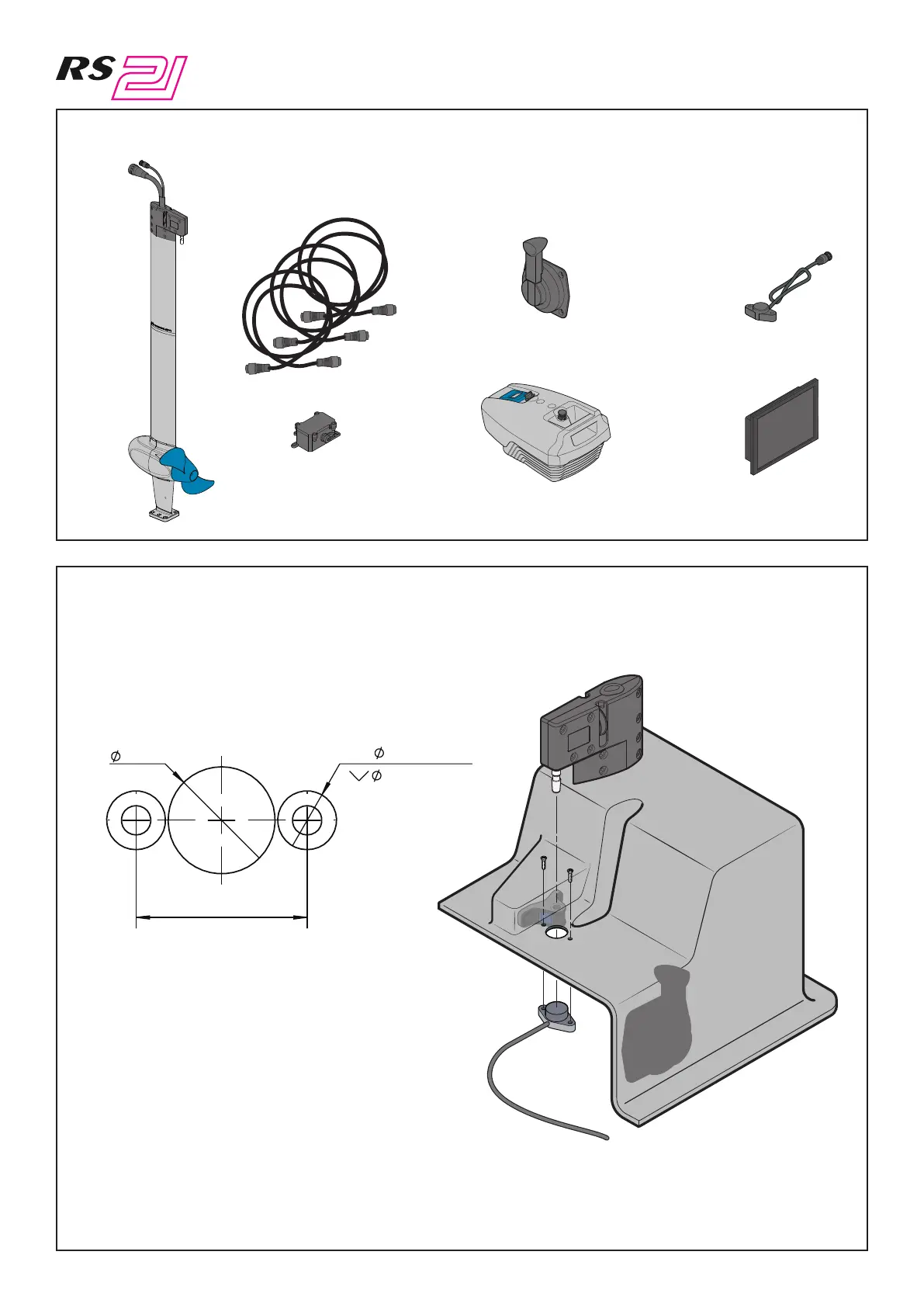

4.24 - Adding the Epropulsion Motor
Locate the following items:
Motor
Communication
Cables
Communication
Module
Battery
Throttle
Screen
Kill switch
a)
Kill switch installation
Three holes need to be drilled in the console,
ensuring the location pin is in the centre of
the 20mm sensor. A small amount of sealant
should be used to x the sensor in place.
32mm
20mm
2 x
5.50mm
11mm X 90°
Two No.5 x 16 pozi countersunk
head screws are used to x the
kill switch to the underside of
the console.
Test the hight of the locator pin,
using the motor head, adjust so
there is a small gap between
the pin and the sensor.
To Next Page
