10.4 Monitoring the bandwidth
On exiting from the bandwidth (LC+ = upper limit; LC- = lower limit) the programmer
stops. The program runs on if the process value (actual value) is running again in the
preset bandwidth. Fig.:72 shows the static program profile and is intended only to clarify the principle.
In fact the curve is delayed in keeping with the stop times.
Parameters: LC+ upper limit
LC- lower limit

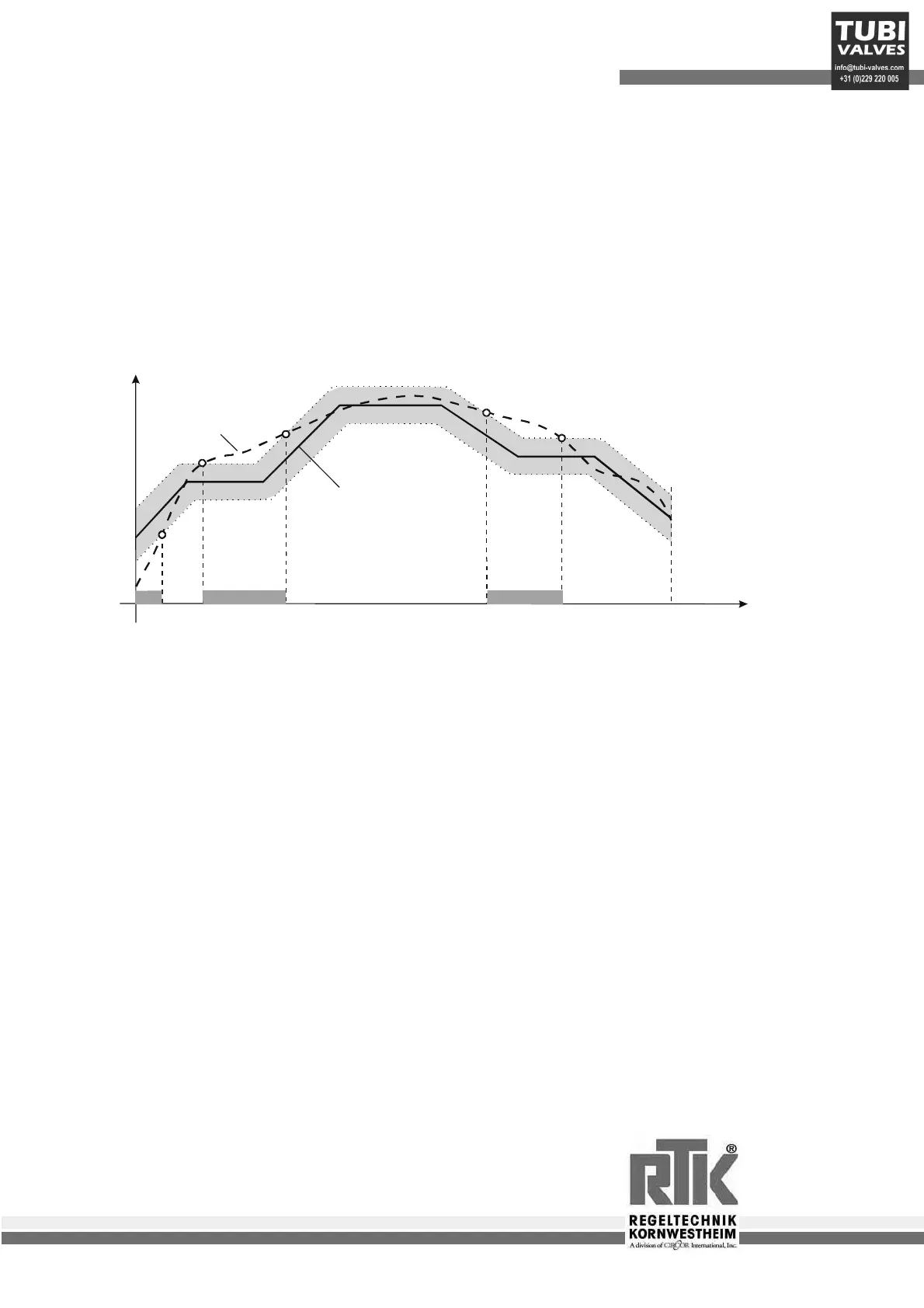

Fig.: 72 Monitoring the bandwidth
g With instruments with a "programmer" software option bandwidth can be effectively monitored even when
the programmer is not configured (standard operation). The LC and LC+ parameters can then be set
as standard parameters. Running set value ramps (Grw+/Grw-) are then stopped when the bandwidth is
exited!
Zeit
Istwert x
Stop Stop
Stop
LC+
LC-
Wp, X
Sollwertprofil
