FGS-2824 User Manual
Publication date: July, 2005
Revision A1
25
2-2. Typical Applications
The FGS-2824 L2 Managed Switch implements 24 Gigabit Ethernet TP ports
with auto MDIX and two slots for the removable module supporting comprehensive
fiber types of connection, including LC and BiDi-LC SFP modules. For more details
on the specification of the switch, please refer to Appendix A.
The switch is suitable for the following applications.
Central Site/Remote site application is used in carrier or ISP (See Fig. 2-13)
Peer-to-peer application is used in two remote offices (See Fig. 2-14)
Office network(See Fig. 2-15)

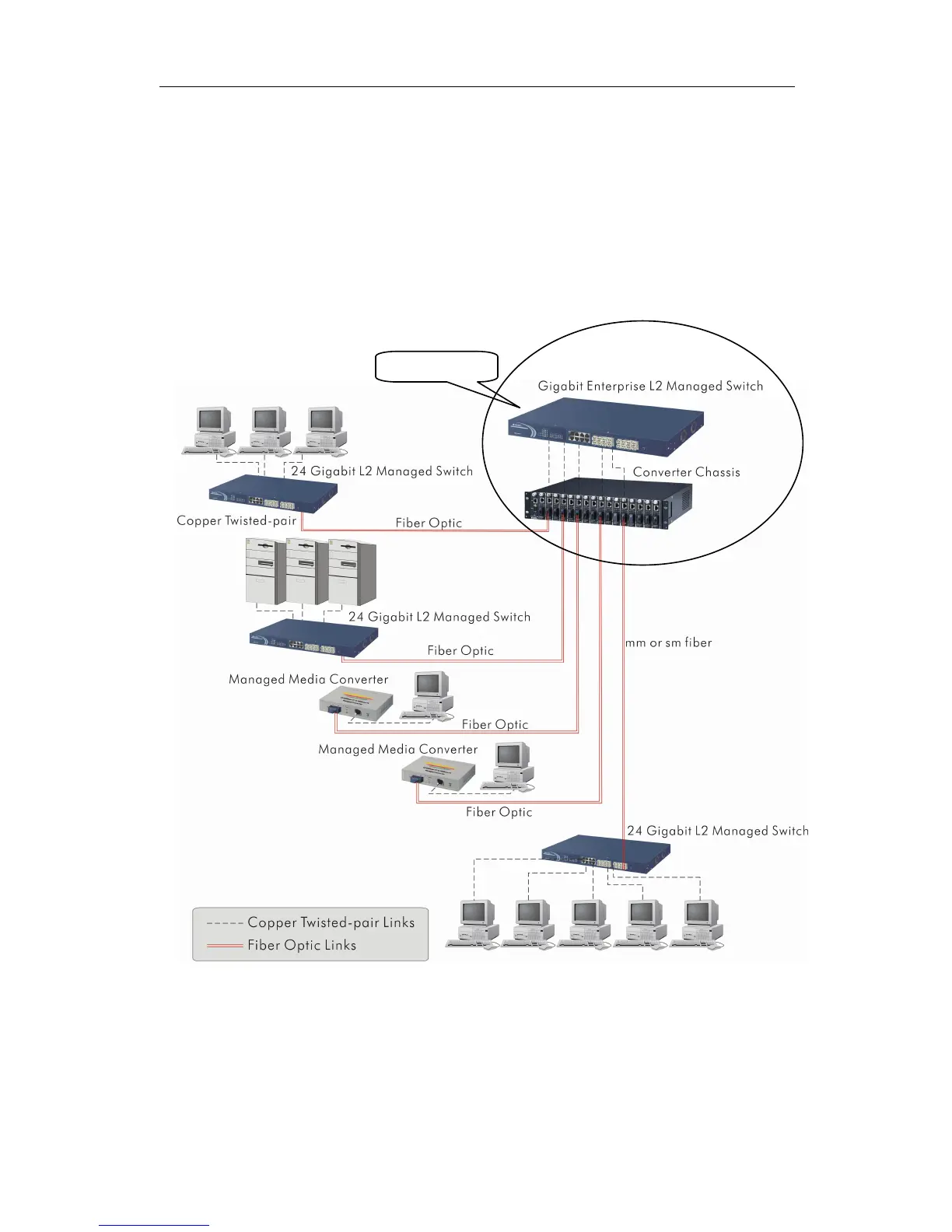

Fig. 2-13 is a system wide basic reference connection diagram. This diagram
demonstrates how the switch connects with other network devices and hosts.
Fig. 2-13 Network Connection between Remote Site and Central Site
