FGS-2824 User Manual
Publication date: July, 2005
Revision A1
63
Function name:
VLAN Tag Priority
Function description:
In vlan tag, there are 3 bits belonging to priority. According to these 3 bits, we
could arrange 8 traffics –0 0 0, 0 0 1, 0 1 0, 0 1 0, 1 0 0, 1 0 1, 1 1 0, 1 1 1. We
can set High priority or Low priority for each traffic class. For instance, if we let
VLAN-tagged priority 0 0 0 be high priority and VLAN-tagged priority 0 0 1 be
Low Priority, and then make port 1, 2, 3 be in the vlan 2. We sent in the
packets that have vlan-tagged Field appears 0 0 0 and VID equals 2 from the
port 2 and the packets that have vlan-tagged Field appears 0 0 1 and VID
equals 2 from the port 3. We let the two kinds of packets be transmitted for
port 1 until the port results in congestion. The result is that the packets will be
dropped partially from the port 3 because the packets that belong to Low
Priority. For the use of VLAN Tag Priority function, please press <Configure>
button at the right section for setting in advance.

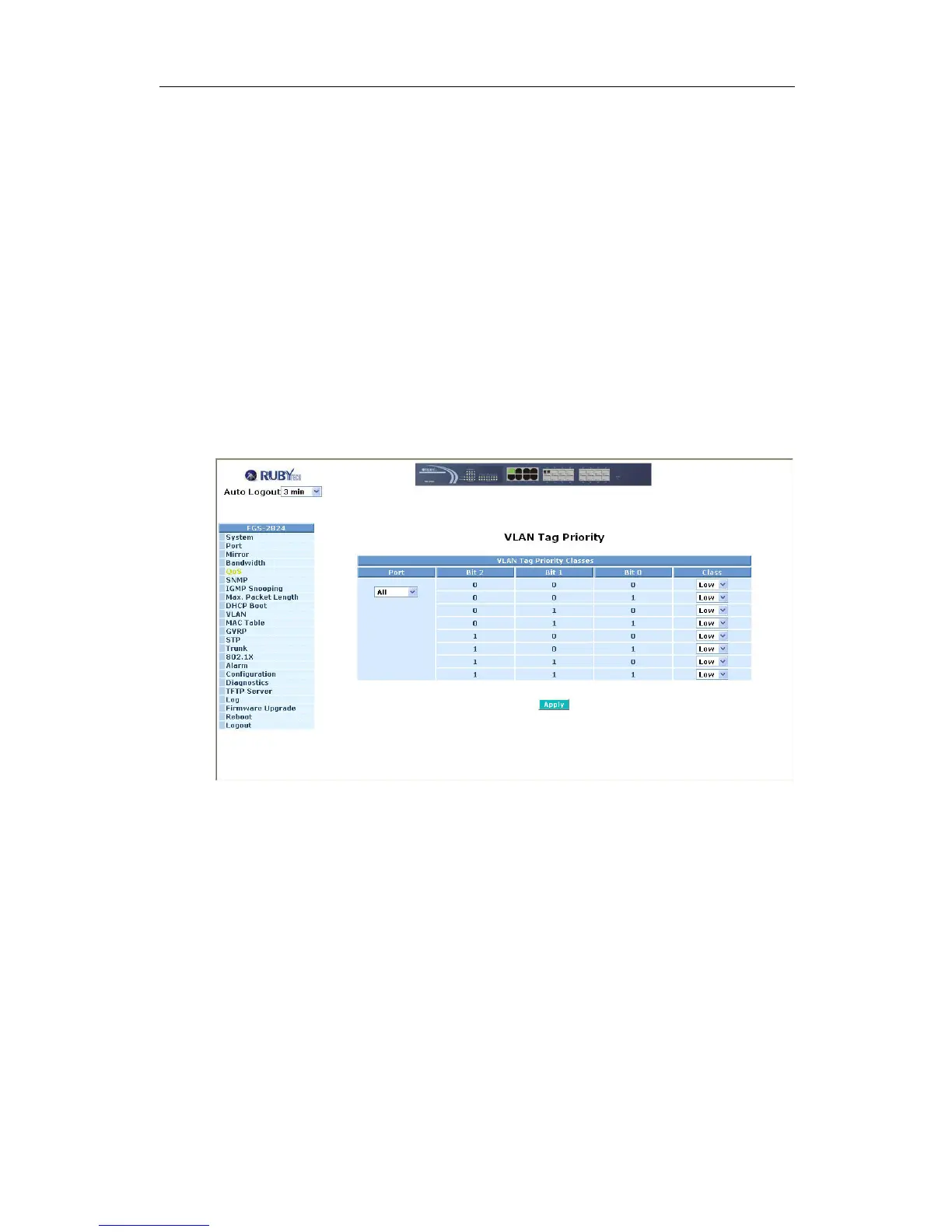

Fig. 3-19
Parameter description:
Quality of Service (QoS) Vlan Tag Configuration:
Used for setting up the QoS belongs to Vlan operation.
Port:
User can set up the port (1~24) respectively to let Vlan Tag QoS function
work on them. If you would like to set up all ports at a time, user is also
allowed to choose “All” in the selection list to simplify the procedure of
configuration.
