FGS-2824 User Manual
Publication date: July, 2005
Revision A1
79
Up-link Port:
This function is enabled only when metro mode is chosen in VLAN mode.
23:
Except Port 23, each port of the switch cannot transmit packets with
each other. Each port groups a VLAN with Port 23, thus, total 23
groups consisting of 2 members are formed.
24:
Except Port 24, each port of the switch cannot transmit packets with
each other. Each port groups a VLAN with Port 24, thus, total 23
groups consisting of 2 members are formed.
23&24:
Except Port 23 and Port 24, each port of the switch cannot transmit
packets with each other. Each port groups a VLAN with Port 23
and Port 24, thus, total 22 groups consisting of 3 members are
formed.

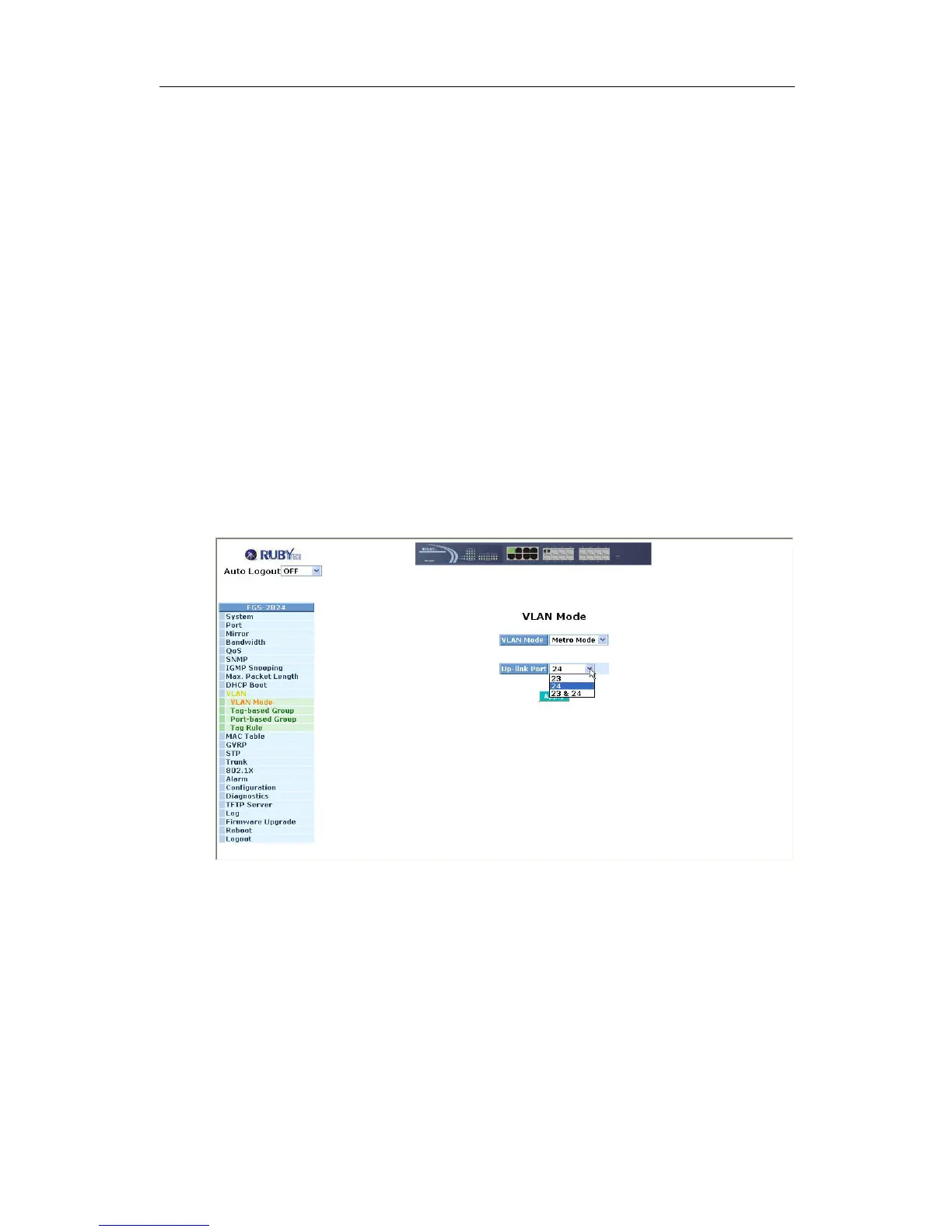

Fig. 3-29
To Next Page
