ELECTRICAL SYSTEM

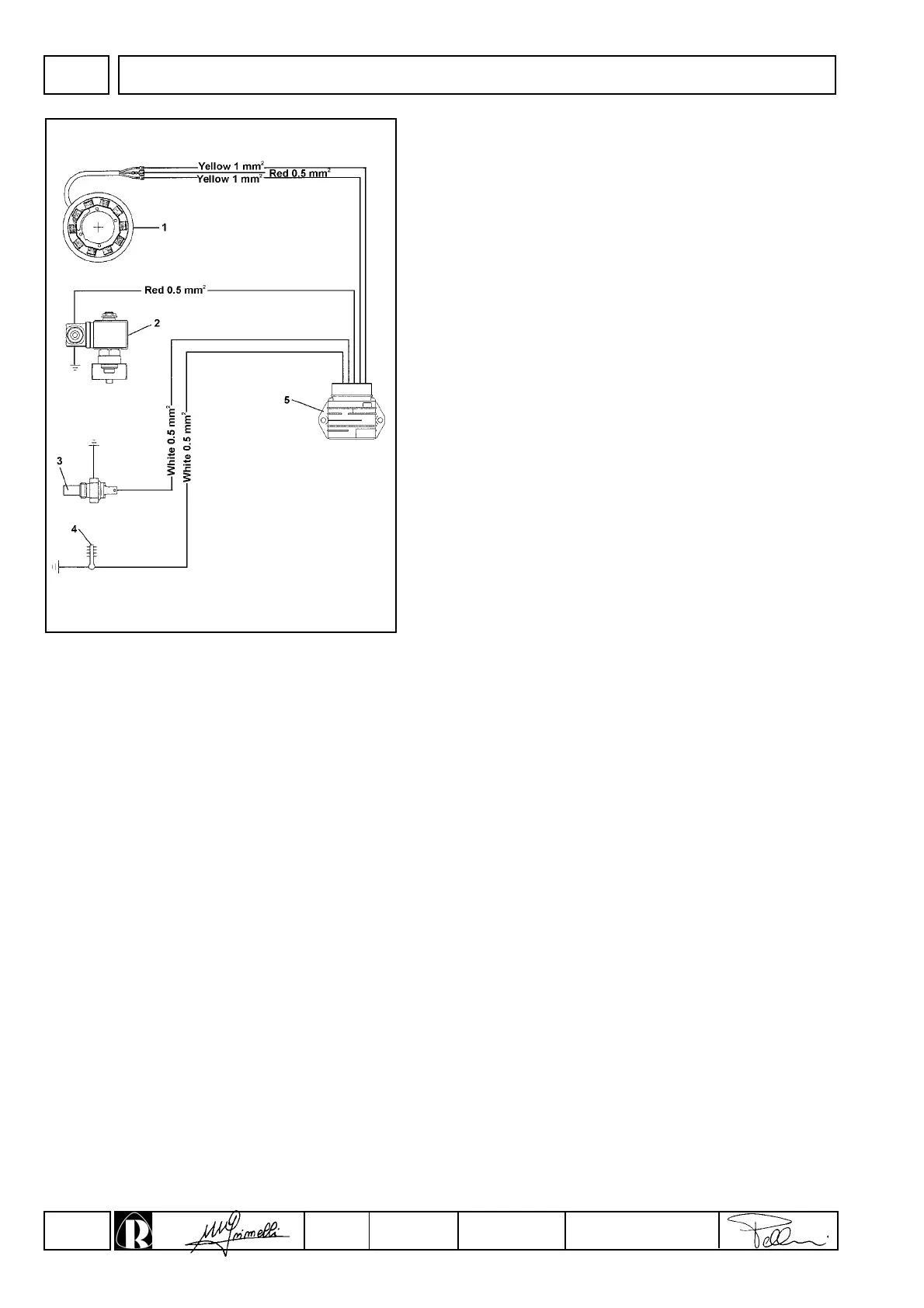

Diagram of electric starter motor protection with sole self-
winding starter - without battery - (optional)
Components:
1 Alternator
2 Solenoid valve
3 Pressure switch
4 Thermostat
5 A.c. motor stop device
