Hardware Installation and Reference Guide Starting and Configuring the Enterprise-class Router
20

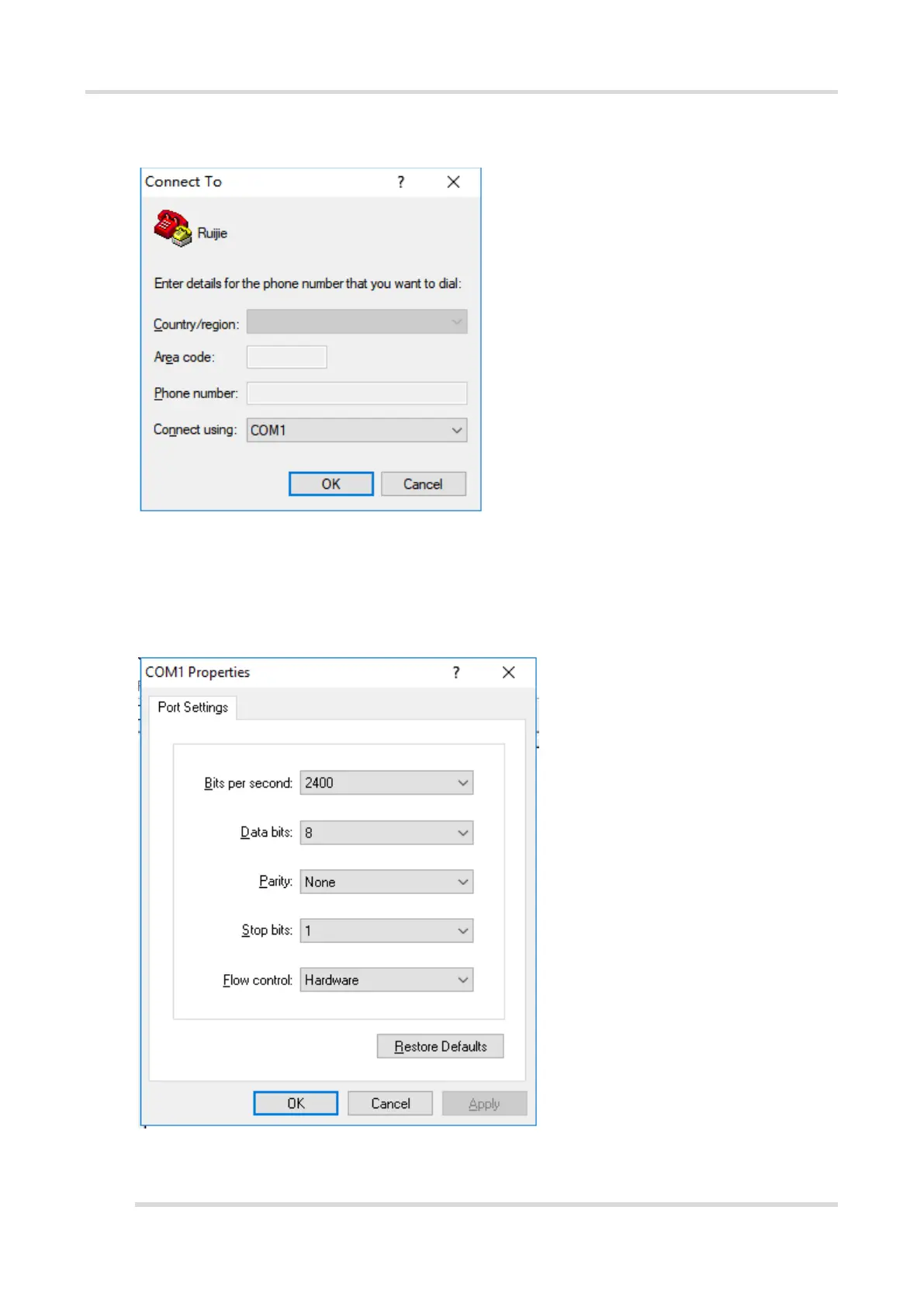

Figure 4-2 Select the Serial Port of Microcomputer Connecting with the Console Port of Enterprise-
class Router
(5) Configure the communication parameters: 9600 baud rate, 8-bit data bits, 1-bit stop bit, no parity check, and
no flow control, as shown in Figure 4-3;
Figure 4-3 Configure the Communication Parameters of the Serial Port
