b. Align the host with bracket and mounting plate to the bracket on the pole, and tighten the M8x20 screws to complete
installation.

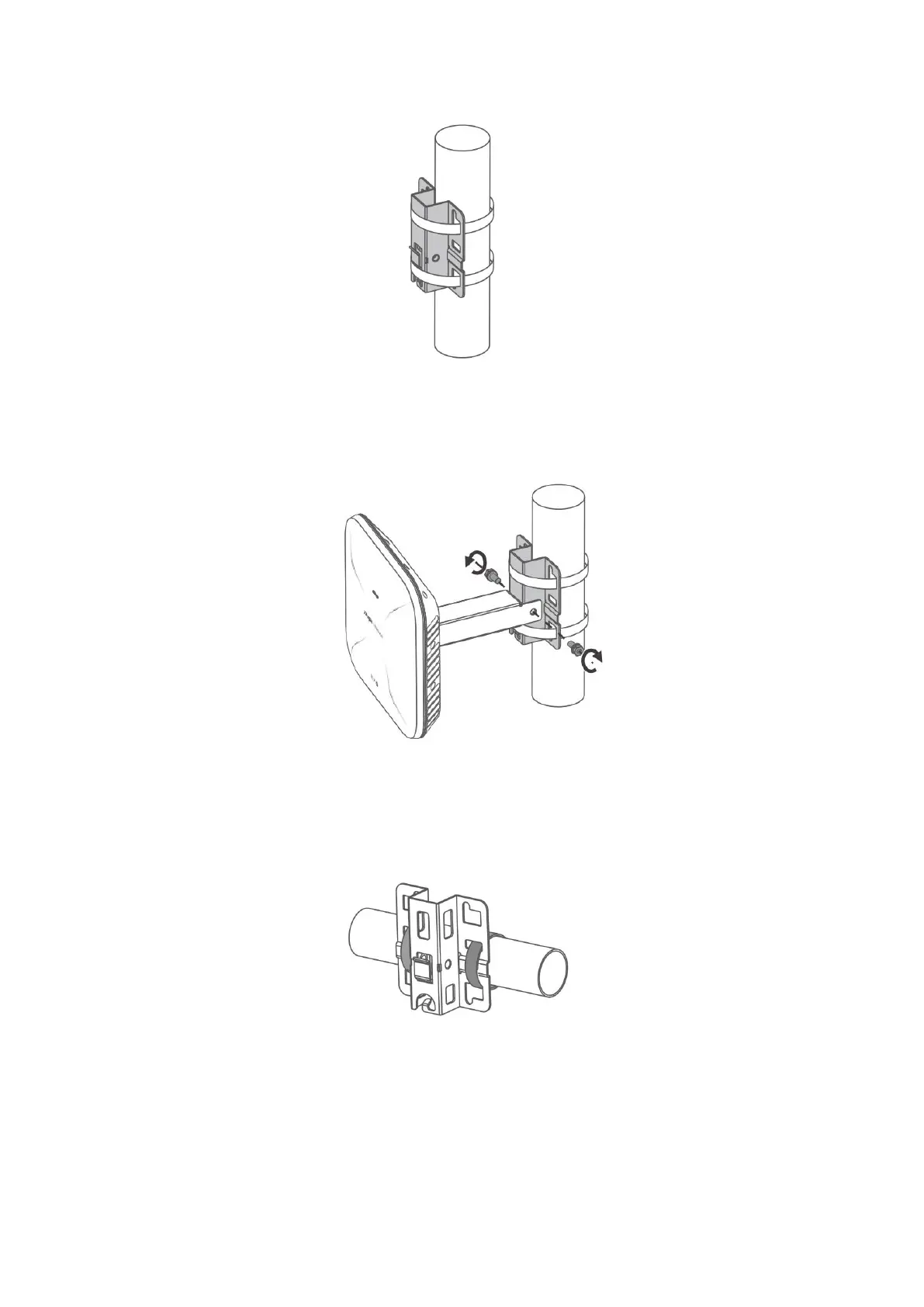

Figure 3-5 Vertical Pole Mounting
Pole mount (Horizontal)
a. Attach the bracket to a pole with hose clamps and fasten the clamps with screws and nuts.
Figure 3-6 Mounting the Bracket on a Pole
b. Align the host with bracket and mounting plate to the bracket on the pole, and tighten the M8×20 screws to complete
installation.
Figure 3-7 Horizontal Pole Mounting
