Ruijie RG-EG210G-E Series Routers Hardware Installation and Reference Guide Installing the Router
3.3 Mounting the Router
3.3.1 Mounting the Router to a Standard 19-inch Cabinet
The RG-EG210G-E series routers follow the EIA standard dimensions and can be installed in 19-inch cabinet.
Step 1: Attach the mounting brackets to the router with the supplied screws, as shown in Figure 3-1.

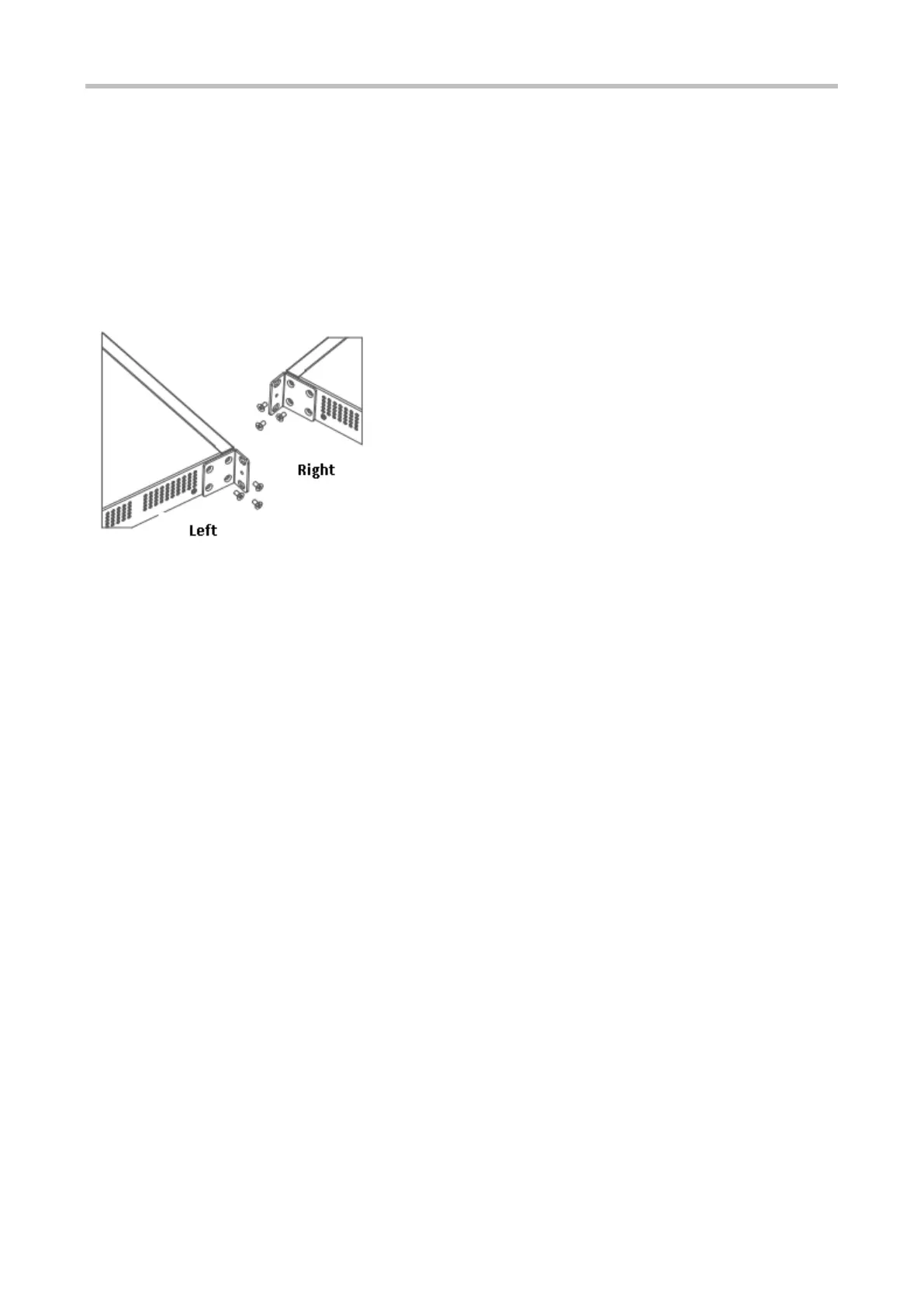

Figure 3-1 Attaching the Mounting Bracket to RG-EG210G-E
Step 2: Use the supplied M6 screws and cage nuts to securely attach the mounting brackets to the cabinet.
Installation Steps
Reserve sufficient space for front and back doors of the cabinet for maintenance.
Mount the cabinet at the designed location as planned.
Install the appropriate cable management bracket and cables.
Install the tray and wiring layer on the cabinet according to the configuration of one cabinet with one device installed or
one cabinet with multiple devices installed.
3.3.2 Mounting the Router to a Workbench
In some cases, users do not have the 19-inch standard cabinet. The common solution is to place the router on a clean
workbench. The operation is simple as follows:
Step 1: Attach the four rubber pads to the four corners on the bottom.
Step 2: Place the router on the workbench and ensure good ventilation condition around the router.
3.4 Grounding the Router
RG-EG210G-E has a PGND on the back panel. First connect the PGND to the grounding lug of the rack and then
connect the grounding lug to the grounding bar of the equipment room.
Precautions
The sectional area of the grounding wire should be determined according to the possible maximum current. Cables
of good conductor should be used.
