Ruijie RG-ES209GC-P Web-Based Configuration Guide

5
Configuration Guide
Configuration Guide

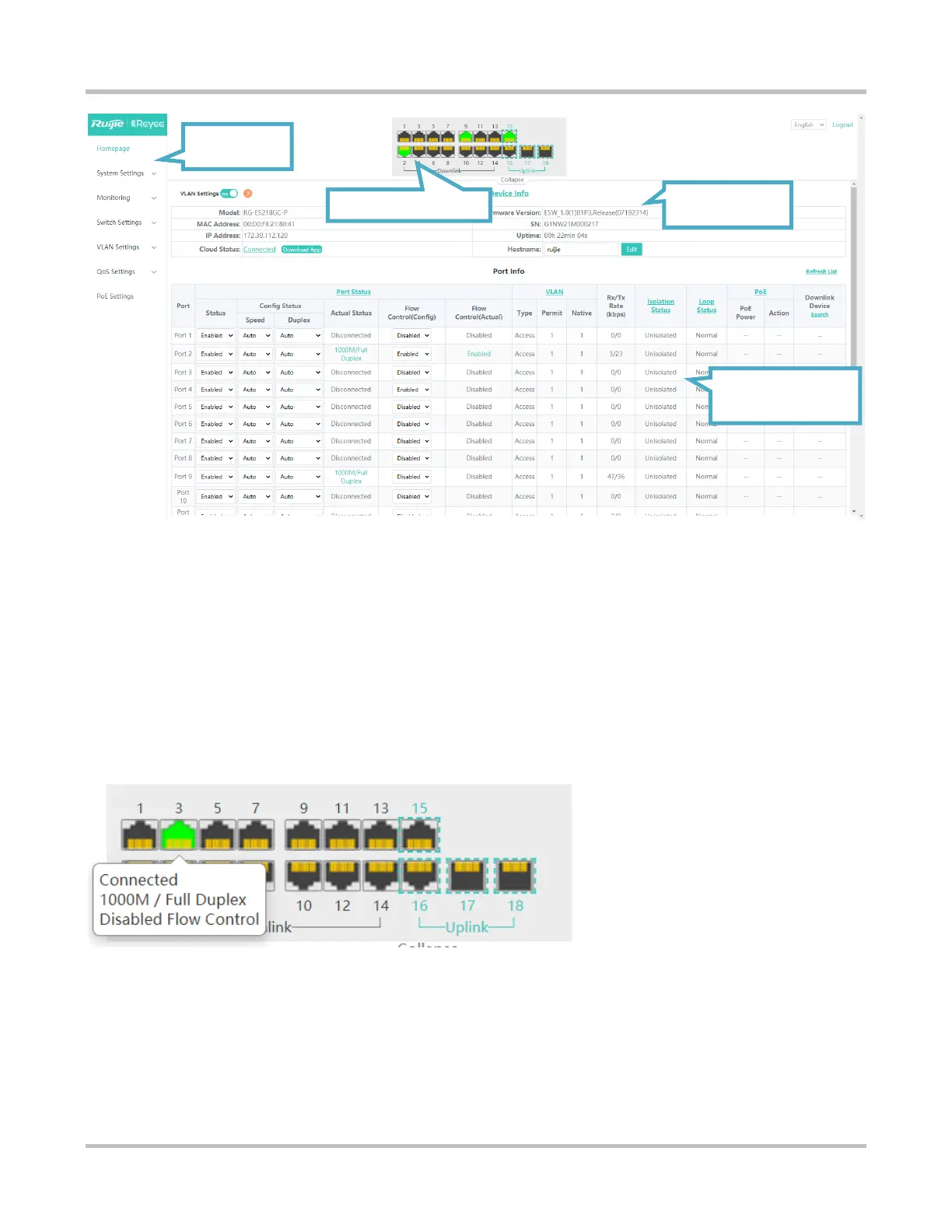

The Web GUI consists of the left and right portions.
The left portion is the menu bar and provides links to all configuration functions of the device, such as Monitoring and VLAN
Settings.
The right portion is the content area, which is divided into two parts. The upper part displays the port status bar and the
Logout button while the lower part displays the content and configuration area.
Port status bar:
Move the cursor over a port. Basic information about the port (including the port connection status, speed, duplex mode, and
flow control status) is displayed. There are uplink and downlink ports. You can click Collapse to hide the port status bar so
that a larger content area is displayed for viewing configuration details.
Function
menu bar
Switch port status bar
System
information bar
Port details list
and basic function
configuration bar
