RG-NBS3200-24GT4XS adopts side-to-rear heat dissipation, thereby ensuring normal function of the device in the
specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to
allow air circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.

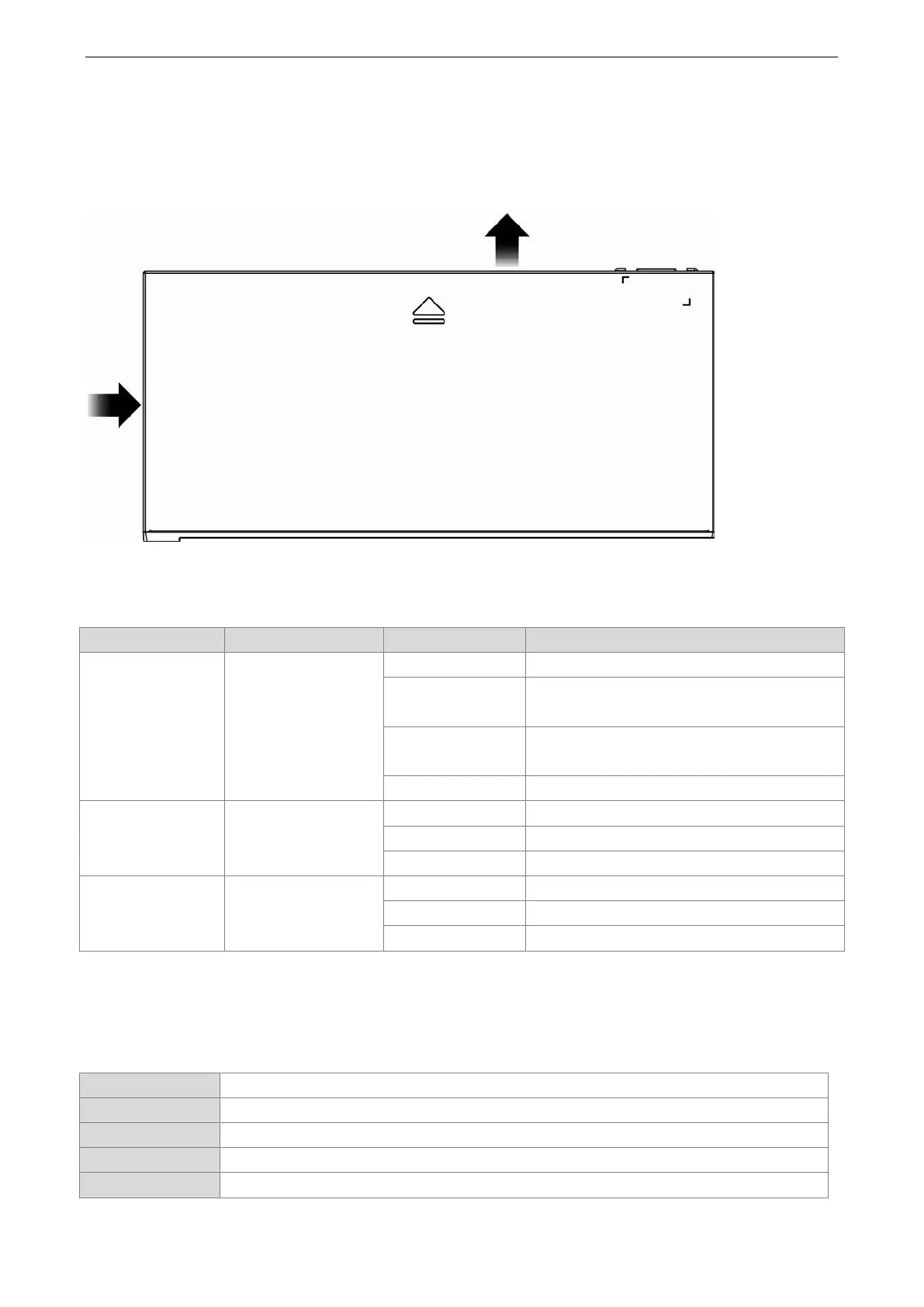

Figure 1-4 Flow Scheme of Heat Dissipation
LED
LED
Panel Identification
State
Meaning
System status LED
Status
Off
The switch is not receiving power.
Blinking green
(0.5Hz)
The switch is running, but is not connected to
Ruijie Cloud.
Blinking green
(10Hz)
The switch is being upgraded or initialized.
Solid green
The switch is connected to Ruijie Cloud.
10/100/1000Base-T
Ethernet port status
LED
1-24
Off
The port is not connected.
Solid green
The port is connected at 10/100/1000 Mbps.
Blinking green
The port is receiving or transmitting traffic.
SFP+ port status
LED
25F-28F
Off
The port is not connected.
Solid green
The port is connected.
Blinking green
The port is receiving or transmitting traffic.
1.2 RG-NBS3200-24SFP/8GT4XS
Technical Specifications
Model
RG-NBS3200-24SFP/8GT4XS
CPU
Built-in CPU, single-core processor, 800MHz
BOOTROM
N/A
Flash Memory
256 MB
SDRAM
DDRIII 512MB

Ruijie RG-NBS3200 Series Specifications

General

Brand	Ruijie
Model	RG-NBS3200 Series
Category	Switch
Language	English
