Ruijie RG-S5310-E Series

Hardware Installation and Reference Guide Product Overview
11

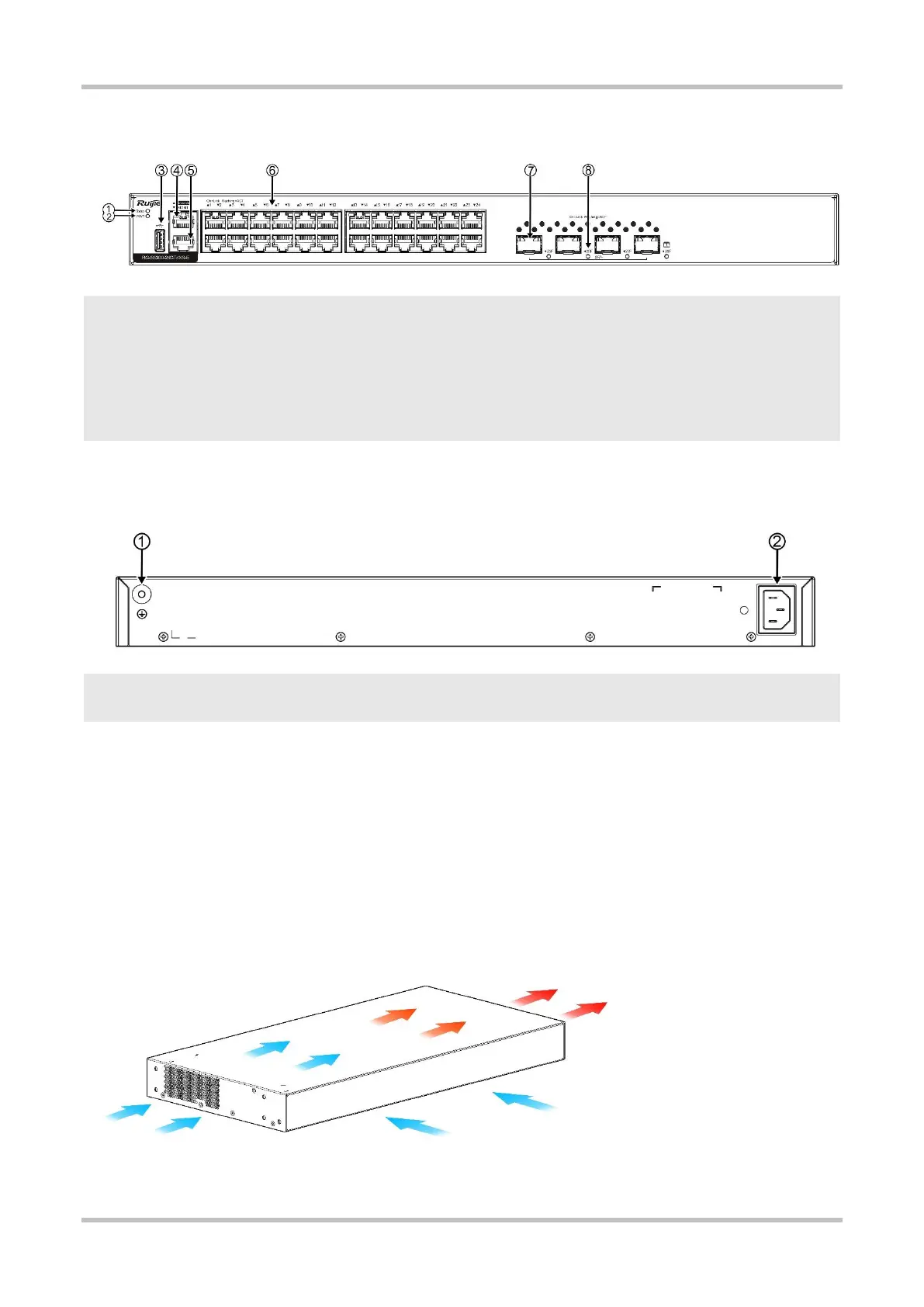

Figure 1-10 Front Panel of RG-S5300-24GT4XS-E
1. System Status LED
2. Management Port LED
3. USB Port
4. Console Port
5. Management Port
6. 10/100/1000Base-T Ethernet Port
7. 10GE SFP+ Port
8. Port LED
Back Panel
Figure1-11 Back Panel of RG-S5300-24GT4XS-E
1. Grounding Stud
2. AC Power Plug
Power Supply
The RG-S5300-24GT4XS-E switch has a built-in power supply module. The back panel has an an AC power plug.
Cooling
The RG-S5300-24GT4XS-E switch adopts a left-to-right and front-to-right airflow to ensure normal operation. Maintain a minimum
clearance of 100 mm (3.94 in.) around the device for air circulation.
Figure 1-12 Airflow Direction
