rulmeca 80LP - Page 17

15
Low Voltage High Voltage

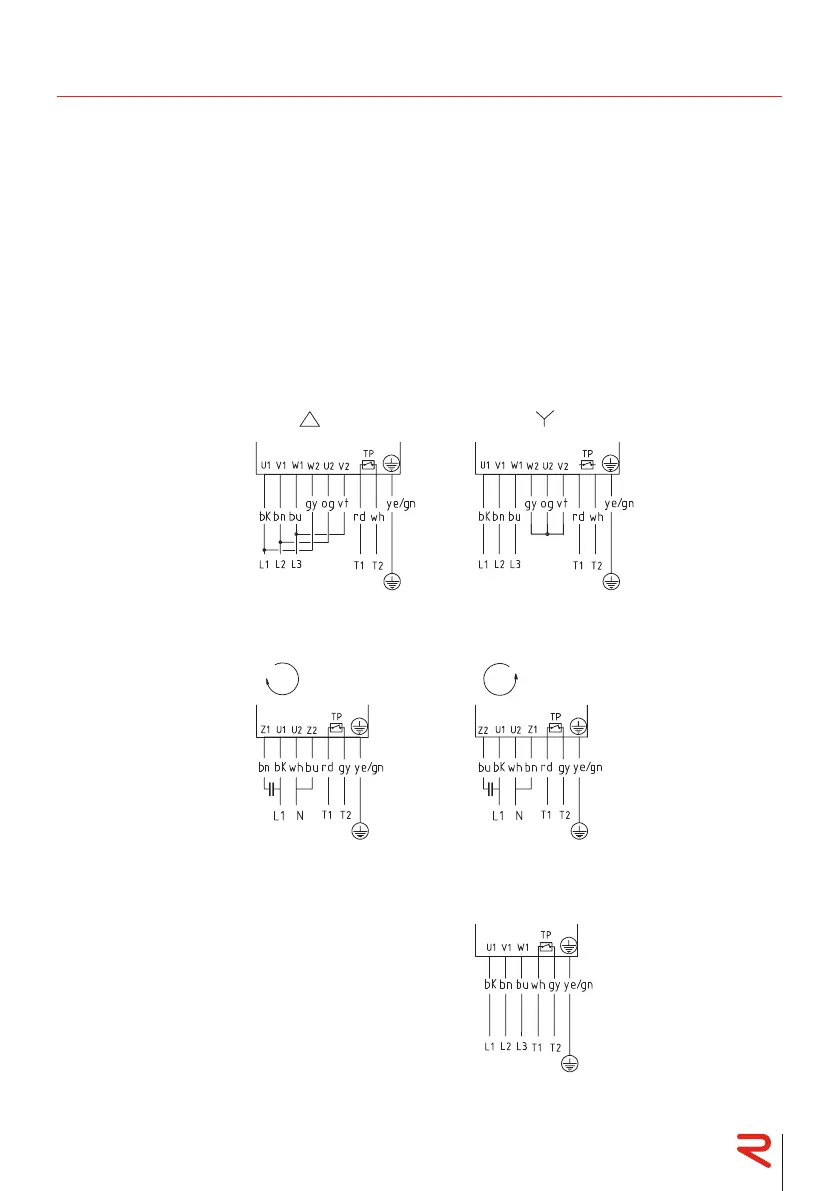

Wiring diagrams for Drum Motor cable
connection 80LP - 138LP
Colours or lead numbers for standard clockwise
rotation direction.
TP - Thermal protector T1 & T2
Colour code
bk - black
bn - brown
rd - red
og - orange
ye - yellow
gn - green
bu - blue
vt - violet
gy - grey
wh - white
3-Ph dual
voltage
motor with
TP
1-Ph motor
with TP
3-Ph single
voltage motor
with TP
80LP-138LP WIRING DIAGRAMS
