Runxin 17603 User Manual

MODEL F73（17603）
25
C. Remote Handling Connector
Online TDS meter monitors treated water other than a flow meter, or
PLC controls the regeneration time. When the controller receives a
contact closure from above instruments, regeneration begins. The wiring
refers to Figure3-10:
3.3. System Configuration and Flow Rate Curve
A. Product Configuration
Product configuration with tank, resin volume, brine tank and injector
Tank Size
(mm)
Resin
Volume
（L）
Flow
Rate
（t/h）
Brine Tank
Size (mm)
The Minimum Salt
Consumption for
Regeneration（Kg）
Injector
Model
φ300×1650
60
1.8
φ450×940
9.00
6306
φ355×1650
100
2.5
φ500×1060
15.00
6308
Attention: The flow rate calculation is based on linear velocity 25m/h; the
minimum salt consumption for regeneration calculation is based on salt
consumption 150g / L (Resin).

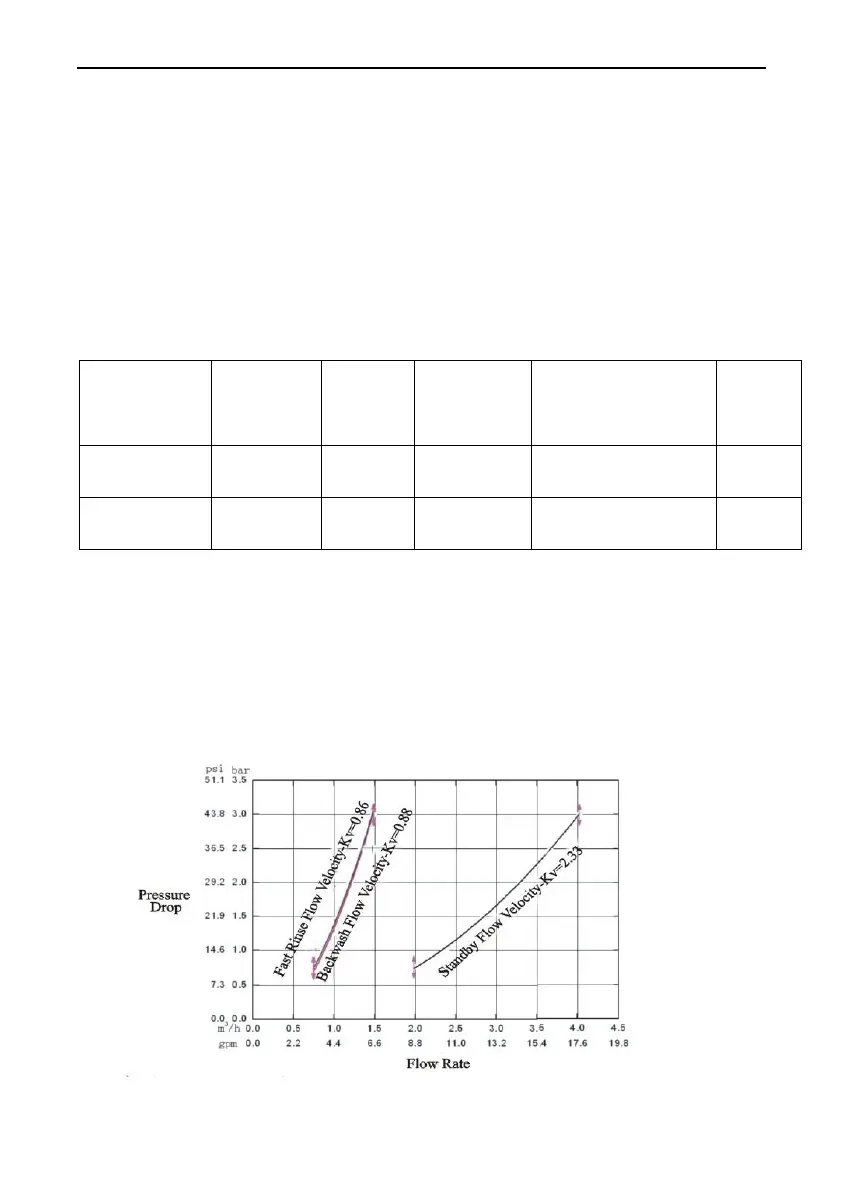

B. Flow Rate Characteristic
