MODEL F71B/F71G/F67C/F67G/N75A/N75B
18

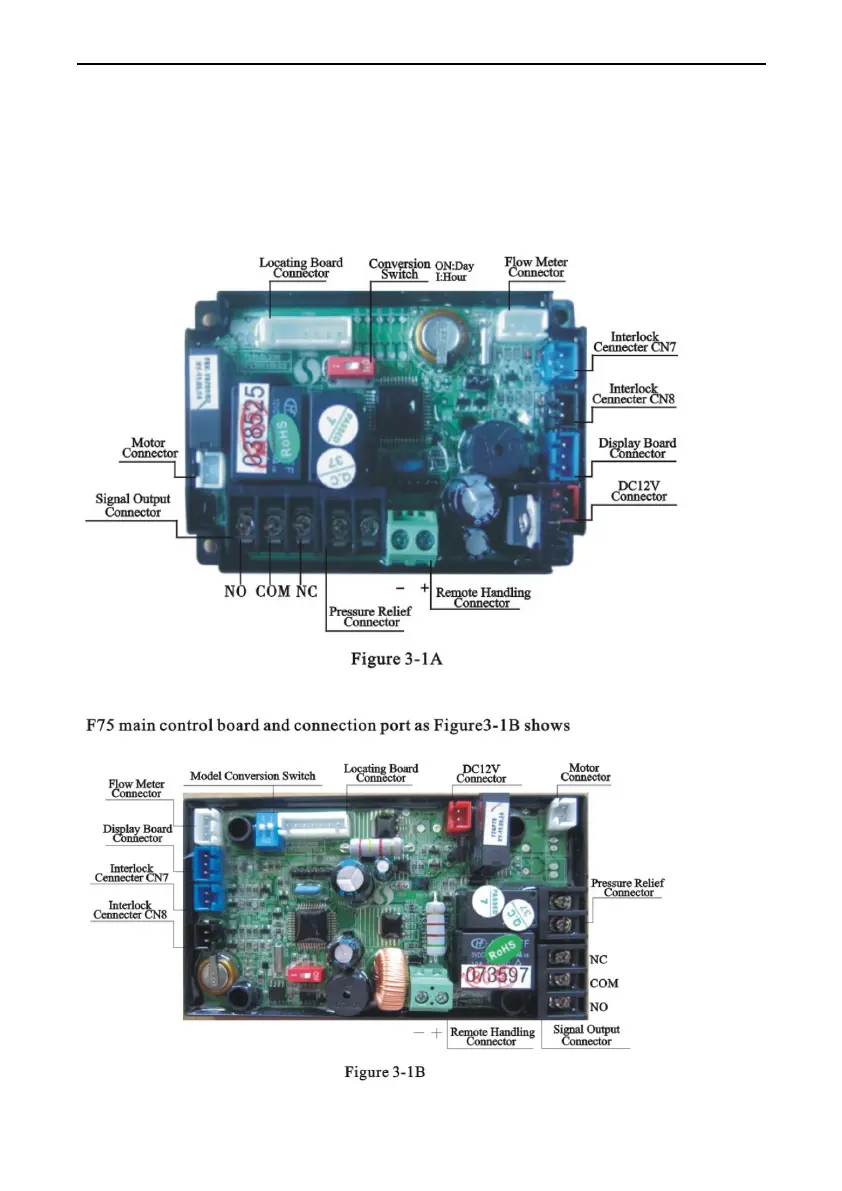

3.2. The Function and Connection of PC Board
Opening the front cover of control valve, you will see the main control
board and connection port as figure 3-1A shows（For F71, F67）
