Runxin 53502 User Manual

MODEL F71B/F71G/F67C/F67G/N75A/N75B
23

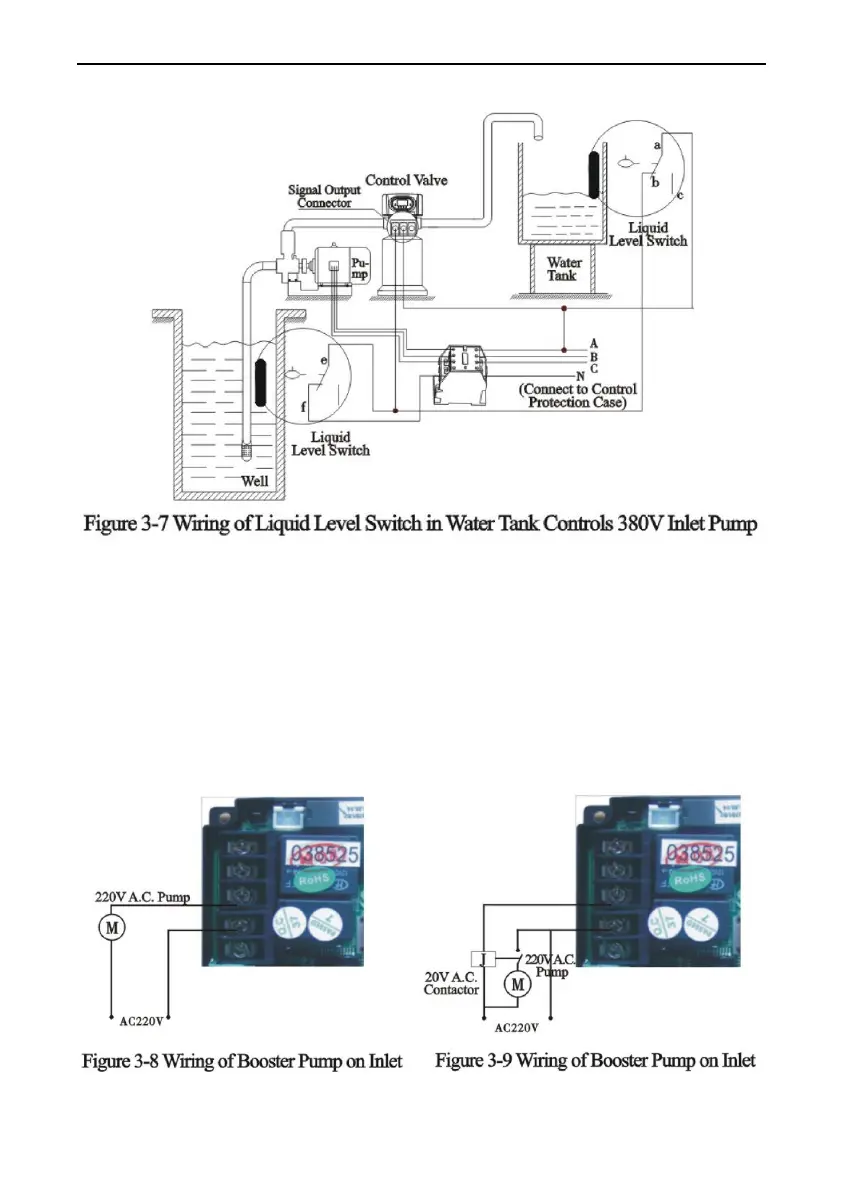

4） Control Inlet Booster Pump( Set b-01)
Instruction: If inlet water pressure is less than 0.15MPa, which makes
rinse drawing difficult, a booster pump is suggested to be installed on
inlet. Control mode b-01. When system in regeneration cycle, booster
pump is open, the wiring refer to Figure 3-8.IF the booster pump current
us bigger than 5A, system need to install an contactor, the wiring refer to
Figure3-9
