MODEL: 63518-N77A1 /63618-N77A3/ 53518-N77B1
27
F. Series System
This is a 2 or more than 2 valves system, all in service, with one flow
meter for the entire system. For the time type valve, the regeneration
time should be set and adjusted to the Max; for the volume type valve,
connect its signal output connector with the remote handle connector of
the time-type valve. That can realize the function of supplying water

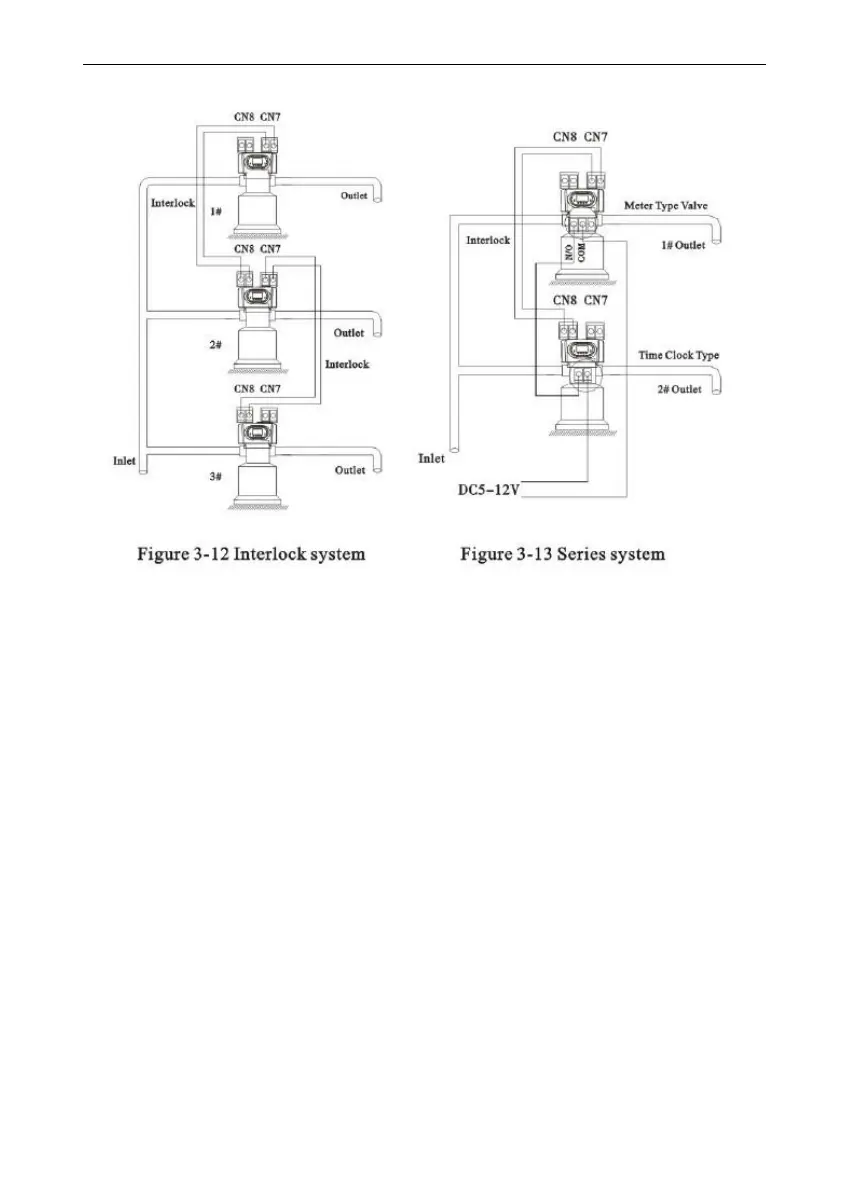

simultaneously and regenerating orderly. The wiring refer to Figure 3-13:
