MODEL 82602-F79A-LCD/82602B-F79B-LCD/82604-F82A-LCD/82604B-F82B-LCD
23
2) Liquid Level Controller Controls Inlet Pump (Two-phase motor)( Set
b-01)
Instruction: For the system using well or middle-tank supplying water,
switch of liquid level controller and valve together control pump opening or

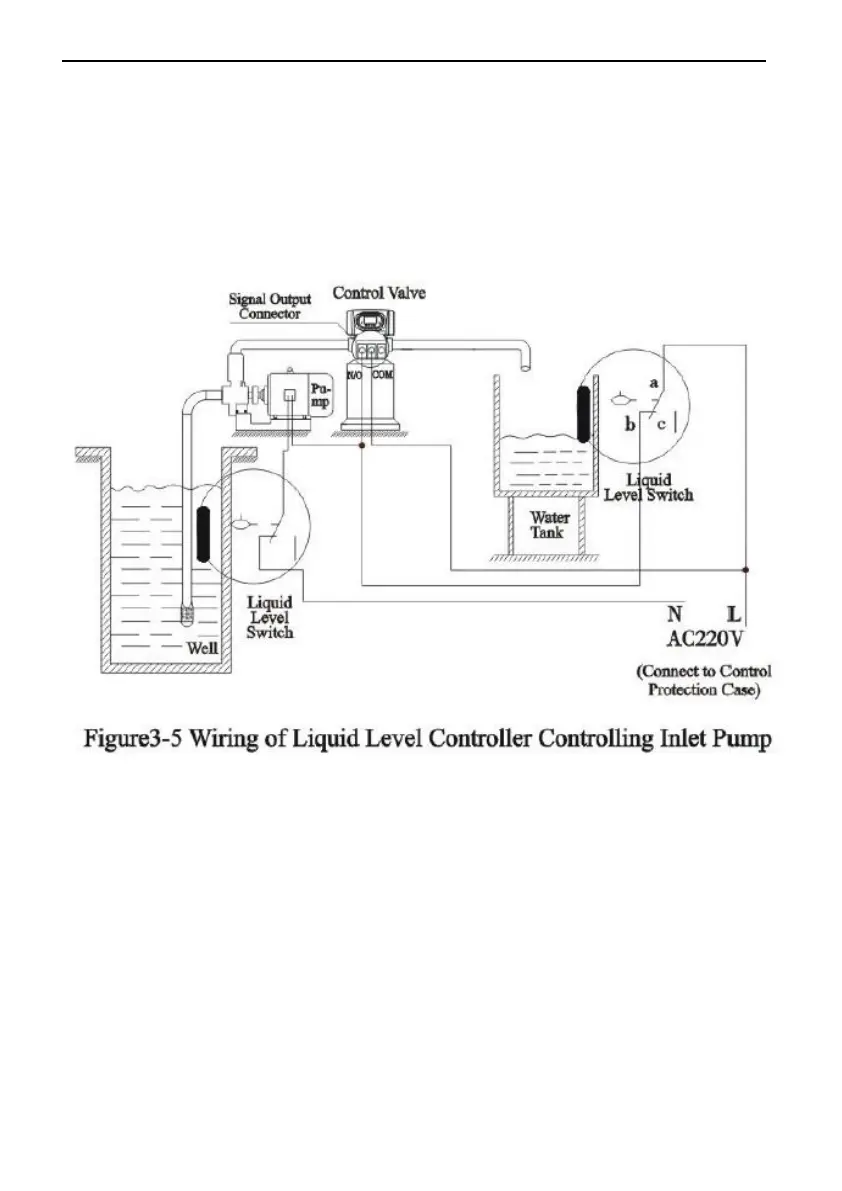

closing. The wiring refer to Figure 3-5:
Function:
When valve in service status, if water tank is short of water, start up
pump, if not, the switch of liquid level controller is closed, pump doesn’t.
When valve in regeneration cycle, inlet always has water no matter
what is water condition in water tank. As Runxin valve no water pass outlet
in regeneration cycle, it ensure no water fill into brine tank. A liquid switch
at the top opening O well or in middle water tank in RO system protect
pump from working without water in case of out of raw water.
3) Liquid Level Switch in Water Tank Controls Inlet Pump (Three-phase)
(Set b-01)
