MODEL：F67Q/F71Q/F68Q/F69Q/F116Q/F117Q
31

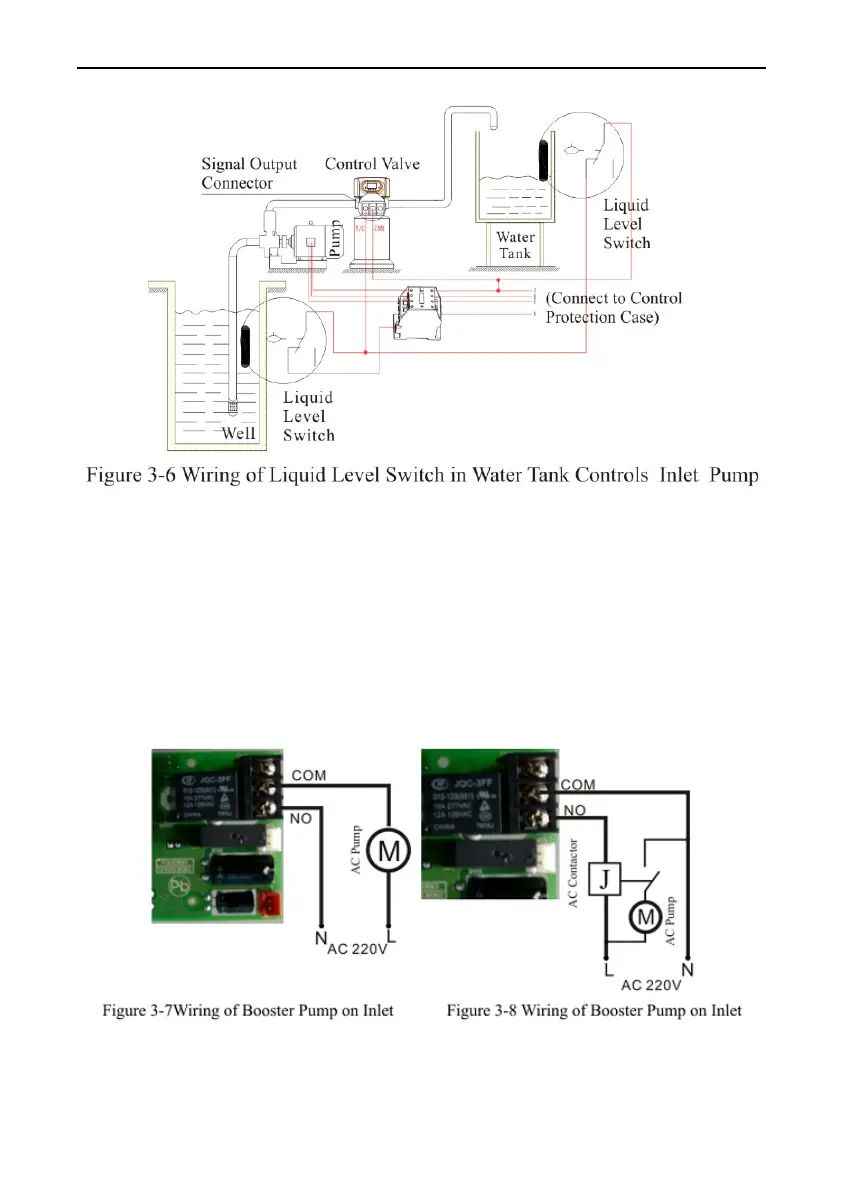

4） Control Inlet Booster Pump (Set as b-01 or as b-02)
Instruction: If inlet water pressure is less than 0.15MPa, which makes rinse
drawing difficult, a booster pump is suggested to be installed on inlet. Set
Control mode as b-01. When system in regeneration cycle, booster pump is
open, the wiring refers to Figure 3-7. If the booster pump current is bigger than
5A, system needs to install a contactor, the wiring refers to Figure3-8
