MODEL：F67Q/F71Q/F68Q/F69Q/F116Q/F117Q
16

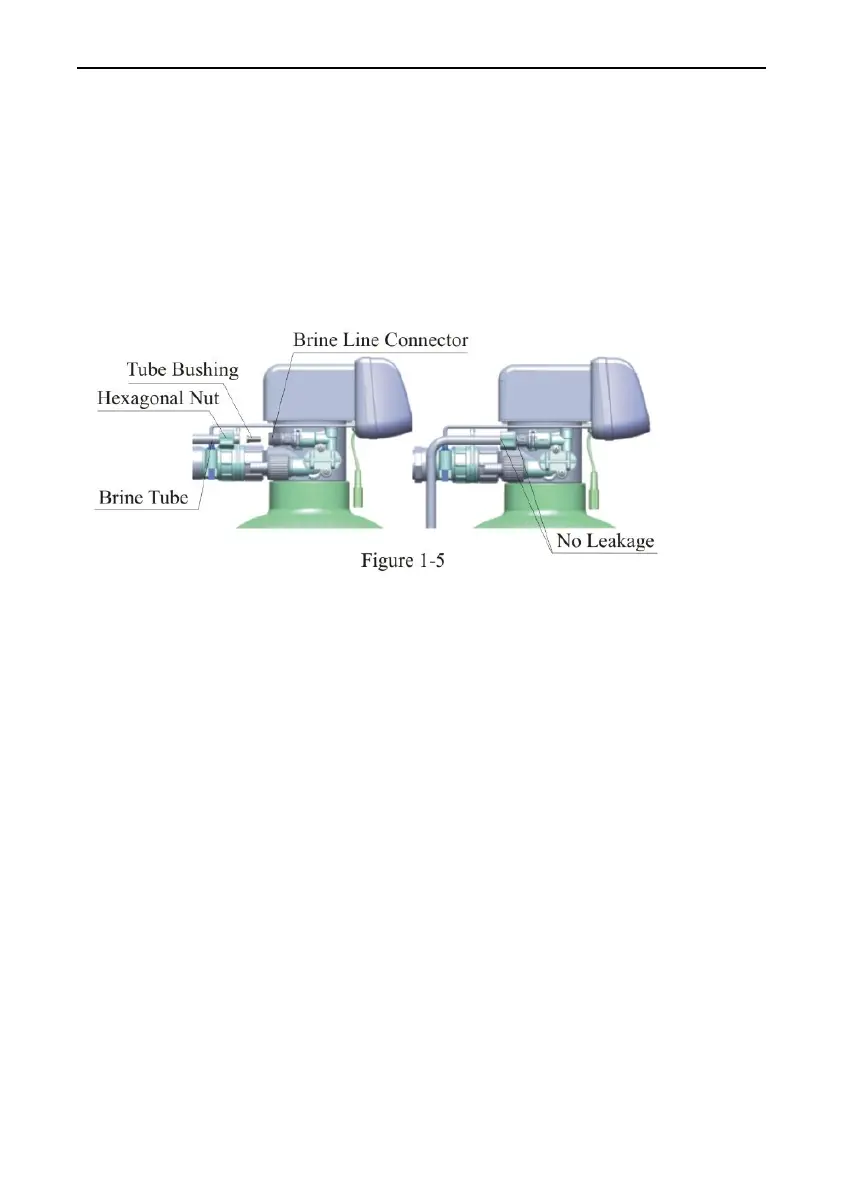

brine tube.
b. Insert tube bushing into the end of brine tube.
c. Tighten nut onto brine line connector.
d. Connect the other end of brine tube with the brine tank. (The liquid
level controller and air-blocker should be installed in the brine tank.)
Remark: The brine tube and drain pipeline should not be bended or
plugged.
2. Basic Setting & Usage
2.1. The Function of PC Board
Take time clock type valves F67Q1/F68Q1/F116Q1 and meter type
valves F67Q3/F68Q3/F116Q3 as example:
