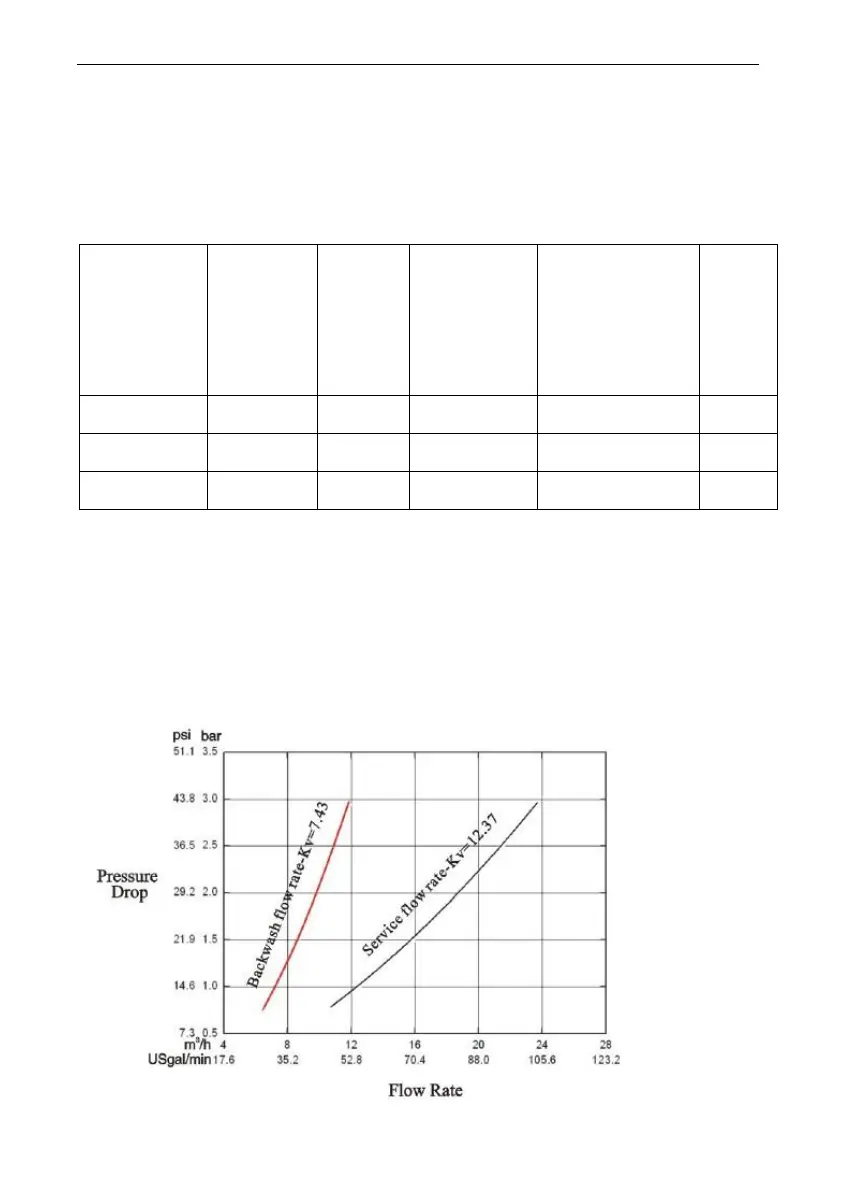

3.3. System Configuration and Flow Rate Curve
A. Product Configuration
Product configuration with tank, resin volume, brine tank and injector.
Tank Size
（mm）
Resin
Volume
（L）
Flow
Rate
（t/h）
Brine Tank
Size (mm)
The Minimum
Salt
Consumption for
Regeneration
（Kg）
Injector
Model
φ750×1800
450
11.0
φ840×1335
67.50
7702
φ900×2400
900
16.0
φ1080×1460
135.00
7703
φ1000×2400
1100
20.0
φ1240×1575
165.00
7704
Attention: The flow rate calculation is based on linear velocity
25m/hr; the minimum salt consumption for regeneration calculation
is based on salt consumption 150g / L (Resin).
B. Flow Rate Characteristic
1) Pressure-flow Rate Curve
