Wiring
• Power must be turned off at the circuit breaker before performing any wiring. Be sure
to follow Local and NEC electrical codes. To provide safe operation, the HydroSalt™ must
be properly grounded and bonded.
• Input Power for stand-alone operation:
• Wire the HydroSalt™ to the LOAD SIDE of the filter pump timer. It is very important
that the HydroSalt™ is powered only when the pump is running.
• Refer to the wiring label on HydroSalt™ as well as the diagram below to determine
correct wiring connections. The HydroSalt™ is shipped from the factory with a 220V
configuration. Until the jumpers are installed for the desired voltage, the unit should NOT
be turned on.
Bonding:

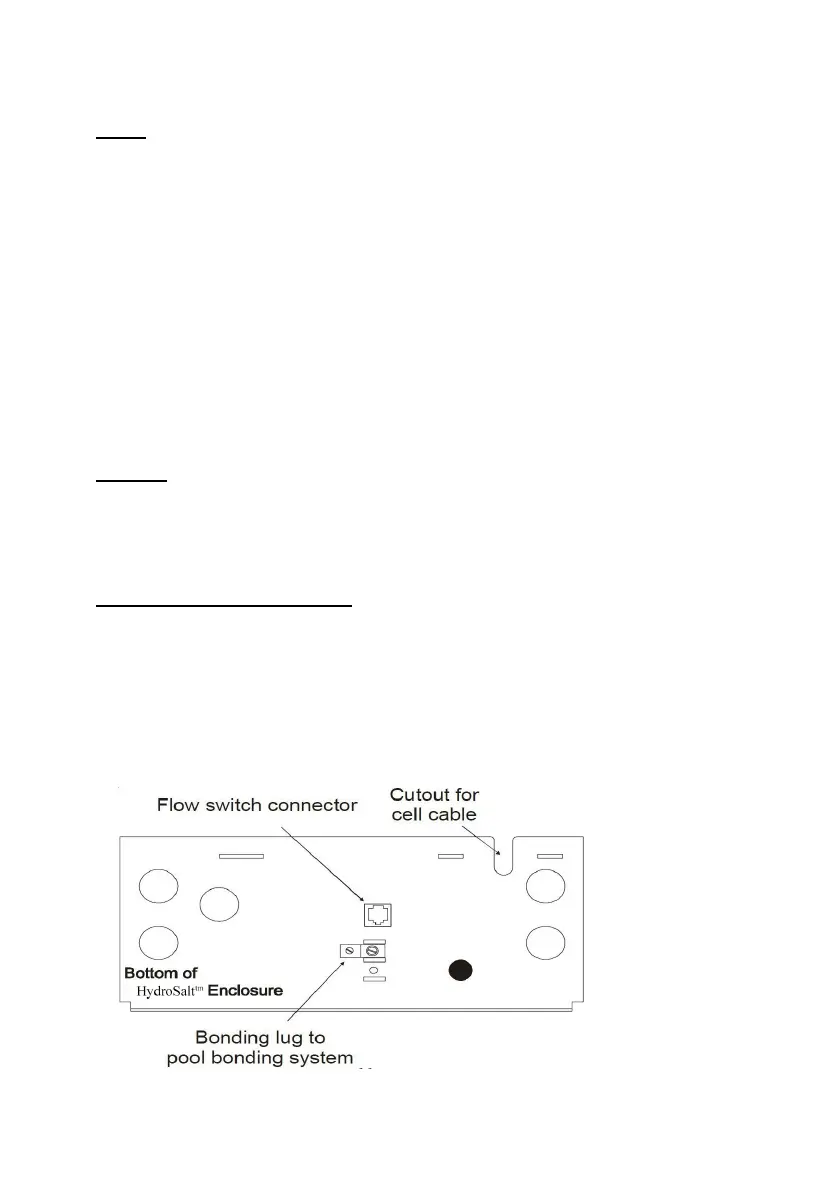

A lug used for bonding is attached to the bottom of the HydroSalt™ enclosure (see
diagram below). The HydroSalt™ must be bonded with an 8 AWG copper wire (6 AWG
Canada) to the pool bonding system.
Electrolytic Cell and Flow Switch:
The electrolytic cell and flow switch cables are terminated with connectors that plug into
the HydroSalt™ for easy attachment and removal. The door of the HydroSalt™ must be
open to access the cell cable connector. The flow switch plugs into a connector (similar to
a telephone jack) located outside, on the bottom of the enclosure. Refer to the diagram
below for the location of these connections.
