Examples of Operation, Model 9900A
52

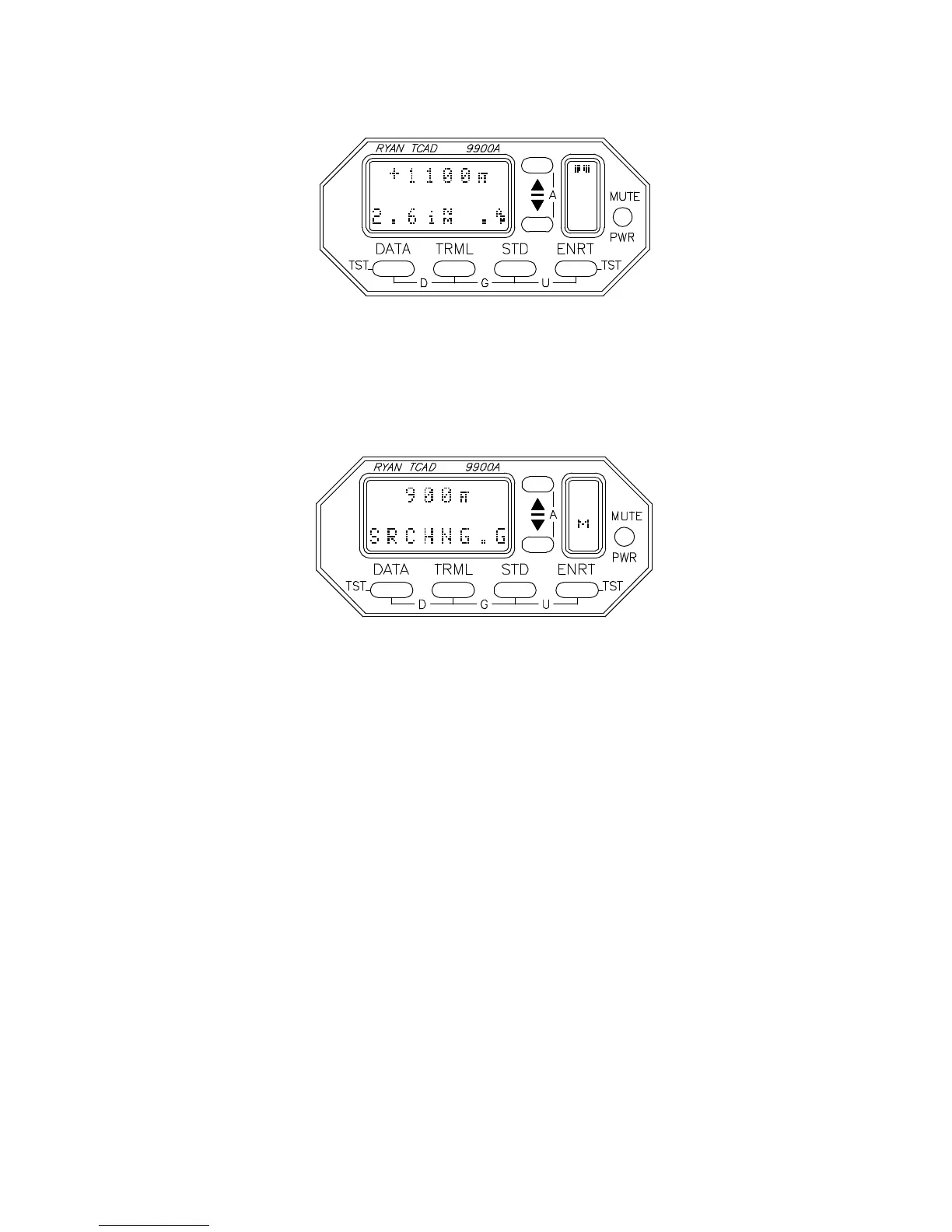

Pressing the s button, the secondary threat, shows 1,100 feet
above and 2.6 iNM. Note the airplane symbol is reversed
(see Section IV and Section IX). After a few seconds, only
the closer of the two threats is displayed.
The traffic eventually passes out of the shield. On short
final, TCAD automatically transitions to the Ground Mode.
