12
REN-O-THIN
ADJUSTMENTS

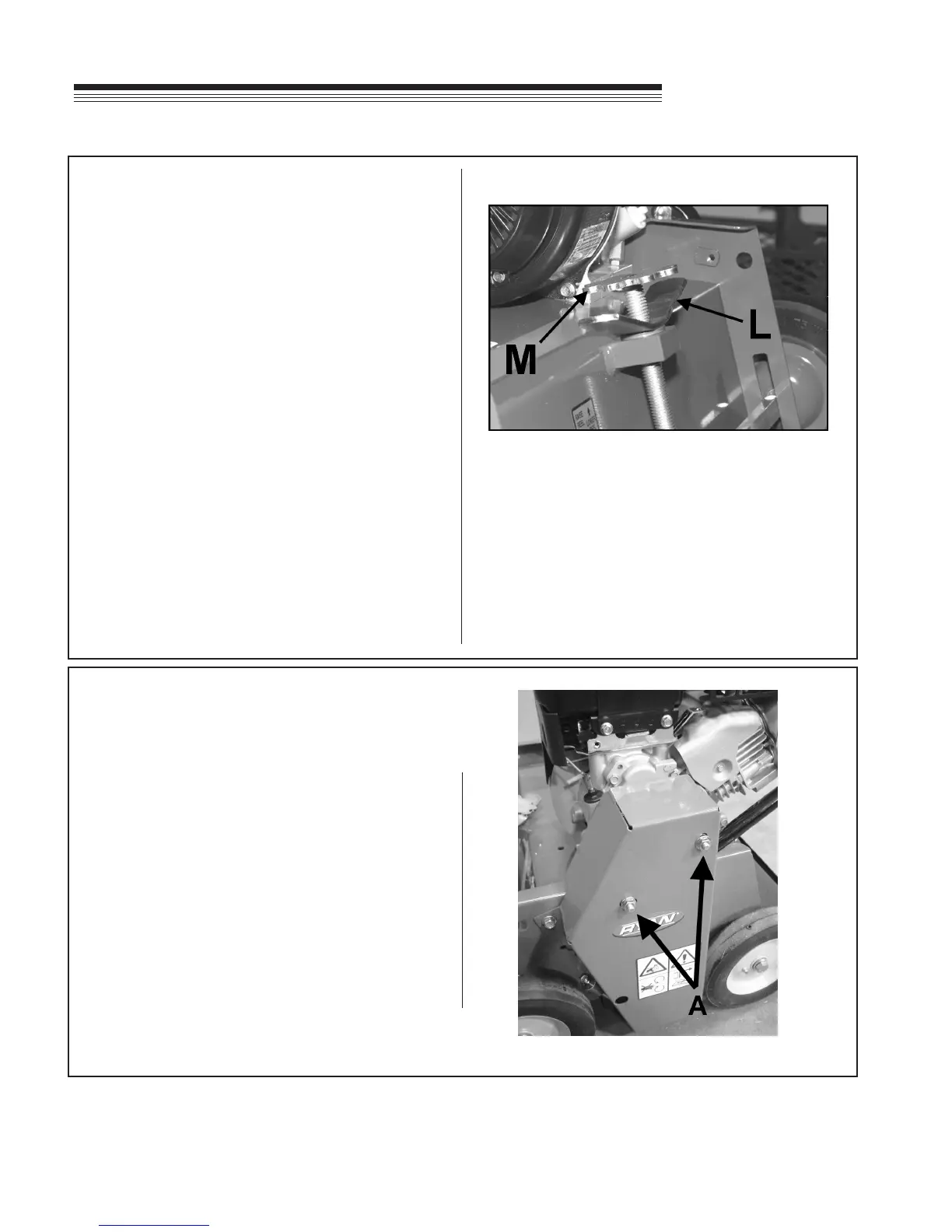

BELT GUARD ROD ADJUSTMENT
There are two belt guide rods A mounted in the
belt guard. The guides hold the belt so it doesn't
grab when declutched. Adjust as necessary so
belt declutches.
BLADE HEIGHT ADJUSTMENT
Blade height is adjusted by loosening the locking
lever L and turning the adjusting knob M to raise
or lower the front wheels.
After installing any reel, make the rst adjustment
on a hard level surface.
Adjust the blades to 1/8" (3 mm) above the
surface. Test this setting on a small area, then
adjust the blades to turf conditions as required.
Each number on the adjustment decal represents
a change of 1/8" (3mm).
If the desired blade position cannot be obtained
by adjusting the front wheels, the rear wheels
can be adjusted. Mounting the wheels in the top
hole lowers the blades and mounting the wheels
in the bottom hole raises the blades.
The front axle may be locked in the down
position to prevent the oating action if desired.
Install and secure 1/2" screws, washers, lock
washers and nuts in the slots above the axle.
This will prevent the axle from moving.
