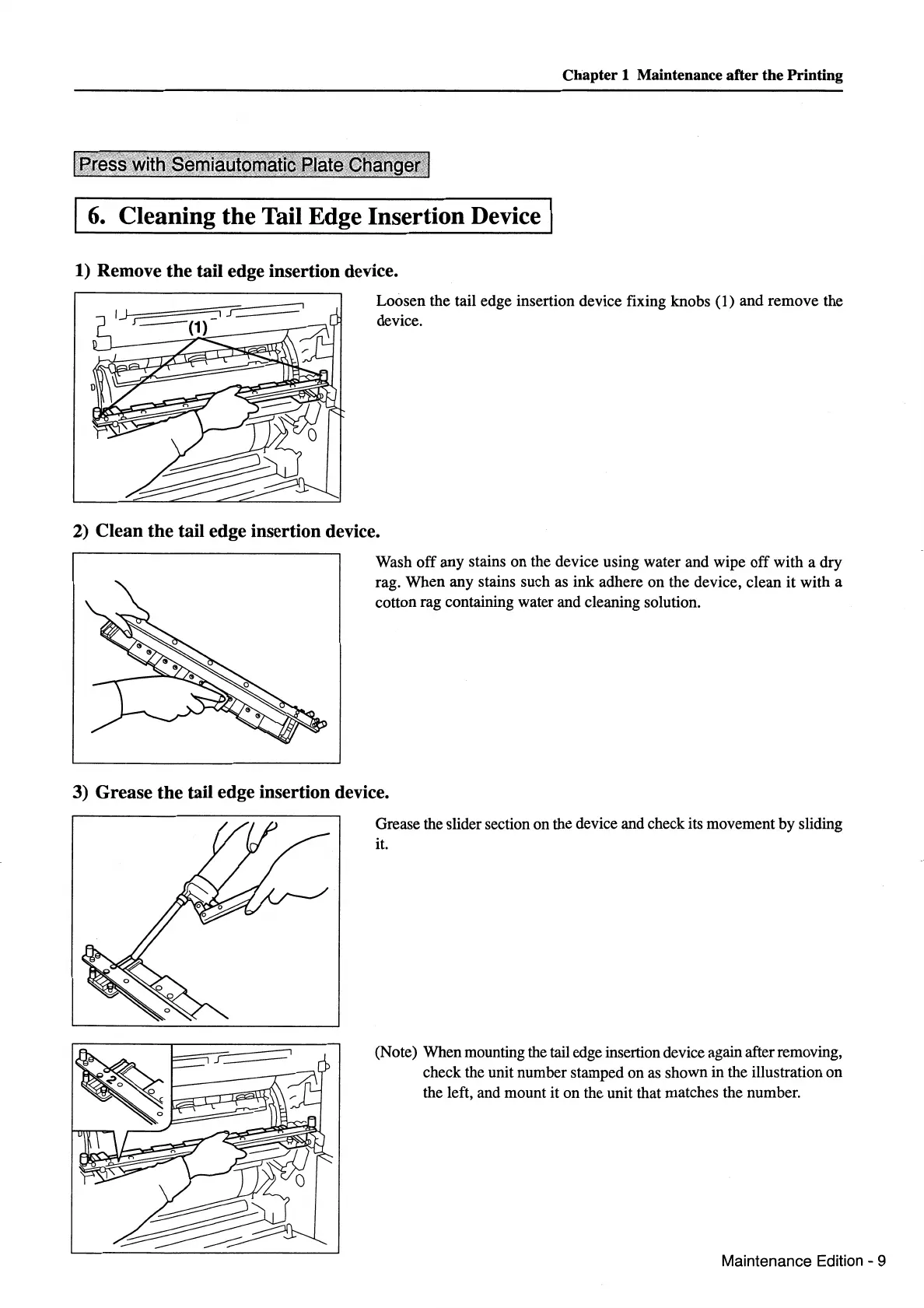

Chapter 1 Maintenance after the Printing
I 6. Cleaning the Tail Edge Insertion Device I
1) Remove the tail edge insertion device.
Loosen the tail edge insertion device fixing knobs (1) and remove the
device.
2) Clean the tail edge insertion device.
Wash off any stains on the device using water and wipe
off
with a dry
rag. When any stains such as ink adhere on the device, clean it with a
cotton rag containing water and cleaning solution.
3) Grease the tail edge insertion device.
Grease the slider section on the device and check its movement by sliding
it.
(Note) When mounting the tail edge insertion device again after removing,
check the unit number stamped on
as
shown in the illustration on
the left, and mount it on the unit that matches the number.
Maintenance Edition - 9
