Chapter
4 Replacing
the_
Supplies

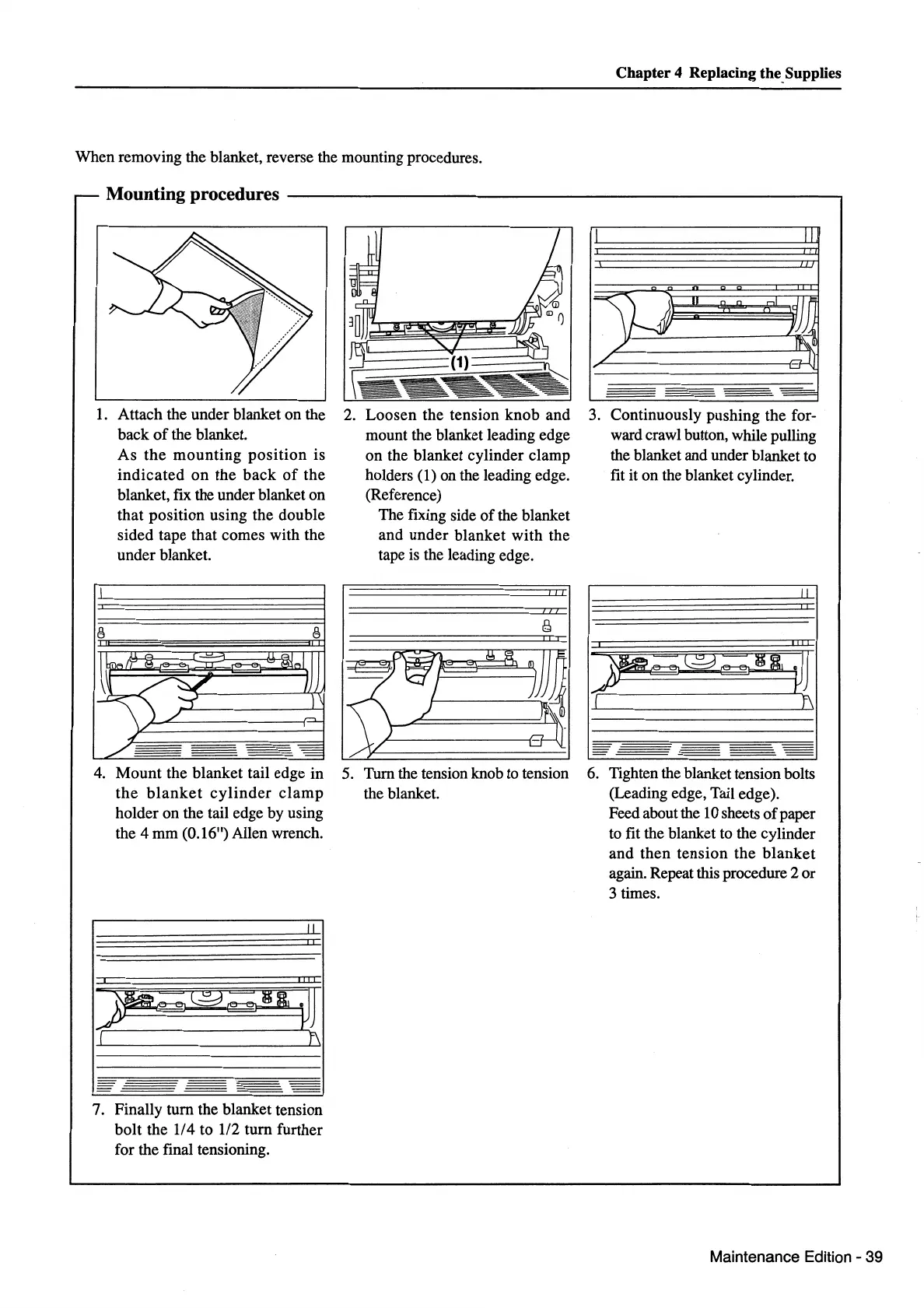

When removing the blanket, reverse the mounting procedures.
Mounting procedures
----------------------------.
1.
Attach the under blanket on the
back
of
the blanket.
I
8
As the
mounting
position
is
indicated
on
the
back
of
the
blanket, fix the under blanket on
that position using the double
sided tape that comes with the
under blanket.
8
~~
~,.,1
L
~
~
/=
--
=~
4.
Mount the blanket tail edge in
the
blanket
cylinder
clamp
holder on the tail edge by using
the 4 mm (0.16") Allen wrench.
II
7. Finally turn the blanket tension
bolt the
114
to
112
turn further
for the final tensioning.
2.
Loosen the tension knob and
mount the blanket leading edge
on the blanket cylinder clamp
holders (1) on the leading edge.
(Reference)
The fixing side
of
the blanket
and under blanket with the
tape is the leading edge.
5. Turn the tension knob
to
tension
the blanket.
I
II
l=vJ
n n
jJl
1'1'\
/
/
~
~
3.
Continuously pushing the for-
ward crawl button, while pulling
the blanket and under blanket to
fit it on the blanket cylinder.
11
6.
Tighten the blanket tension bolts
(Leading edge, Tail edge).
Feed about the
10
sheets
of
paper
to
fit the blanket
to
the cylinder
and then tension the
blanket
again. Repeat this procedure 2 or
3 times.
Maintenance Edition - 39
