Chapter
3
Periodic
Maintenance
19)

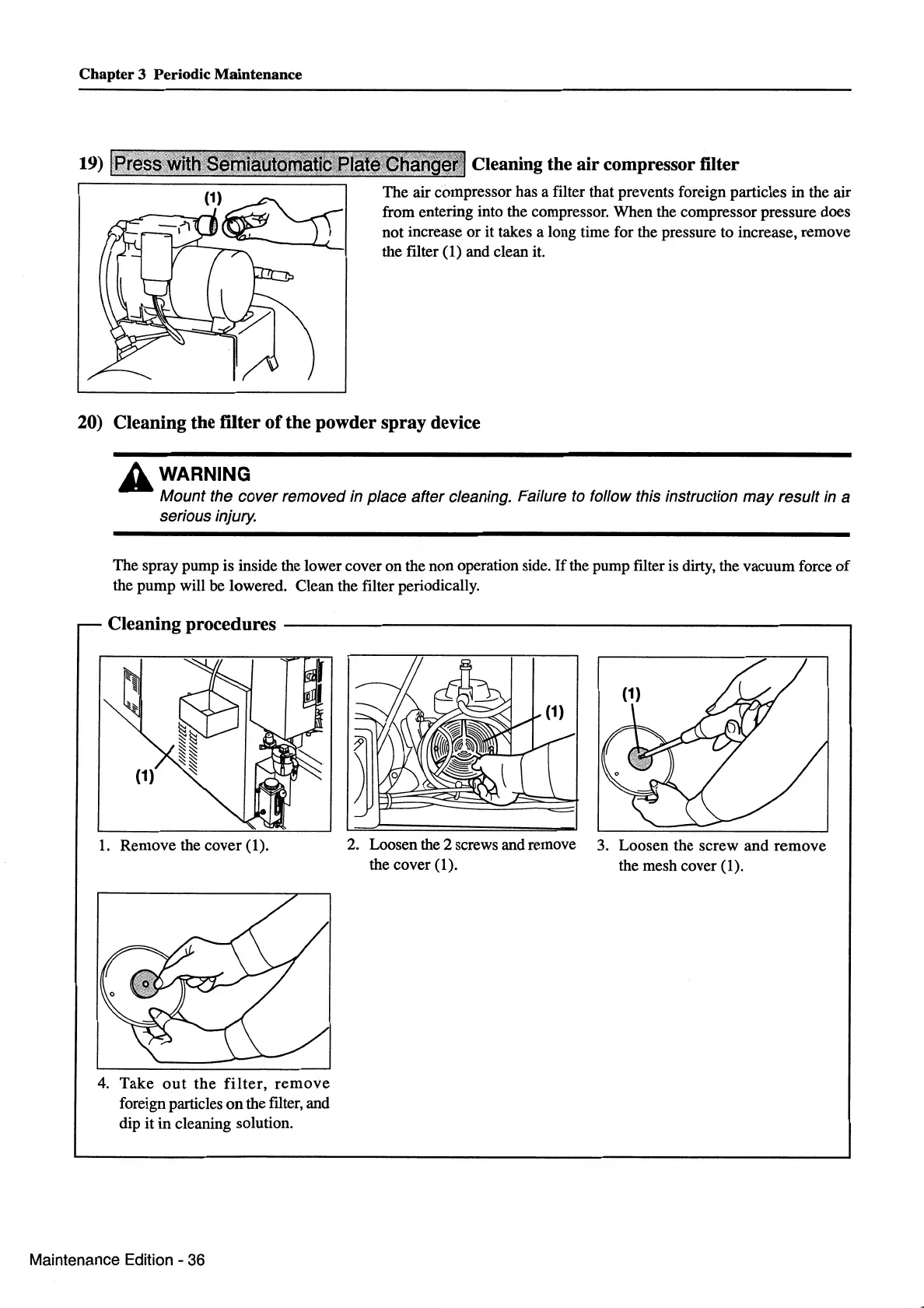

Cleaning the
air
compressor filter
The air compressor has a filter that prevents foreign particles in the air
from entering into the compressor. When the compressor pressure does
not increase
or
it takes a long time for the pressure to increase, remove
the filter (1) and clean it.
20) Cleaning the filter
of
the powder spray device
A wARNING
Mount the cover removed in place after cleaning. Failure
to
follow this instruction may result
in
a
serious injury.
The spray pump is inside the lower cover on the non operation side.
If
the pump filter
is
dirty, the vacuum force
of
the pump will be lowered. Clean the filter periodically.
Cleaning procedures
-------------------------------.
1.
Remove the cover (1).
4.
Take
out
the
filter,
remove
foreign particles
on
the filter, and
dip it
in
cleaning solution.
Maintenance Edition - 36
2. Loosen the 2 screws and remove
the cover
(1
).
3. Loosen the screw and
remove
the mesh cover (1).
