J
PRINT
I
COUNTS
A II
X10
MACHINE
I
COUNTS
B II
Ill
c D
~
X10
E
DOD
F
0
G
f--0
ODD~
0
CYCLE
SET
00
H
1
!PRINT!
~
5 6
~
2
3
4
~
(4:)
eM
••
7
8
9
Ti
cfJ

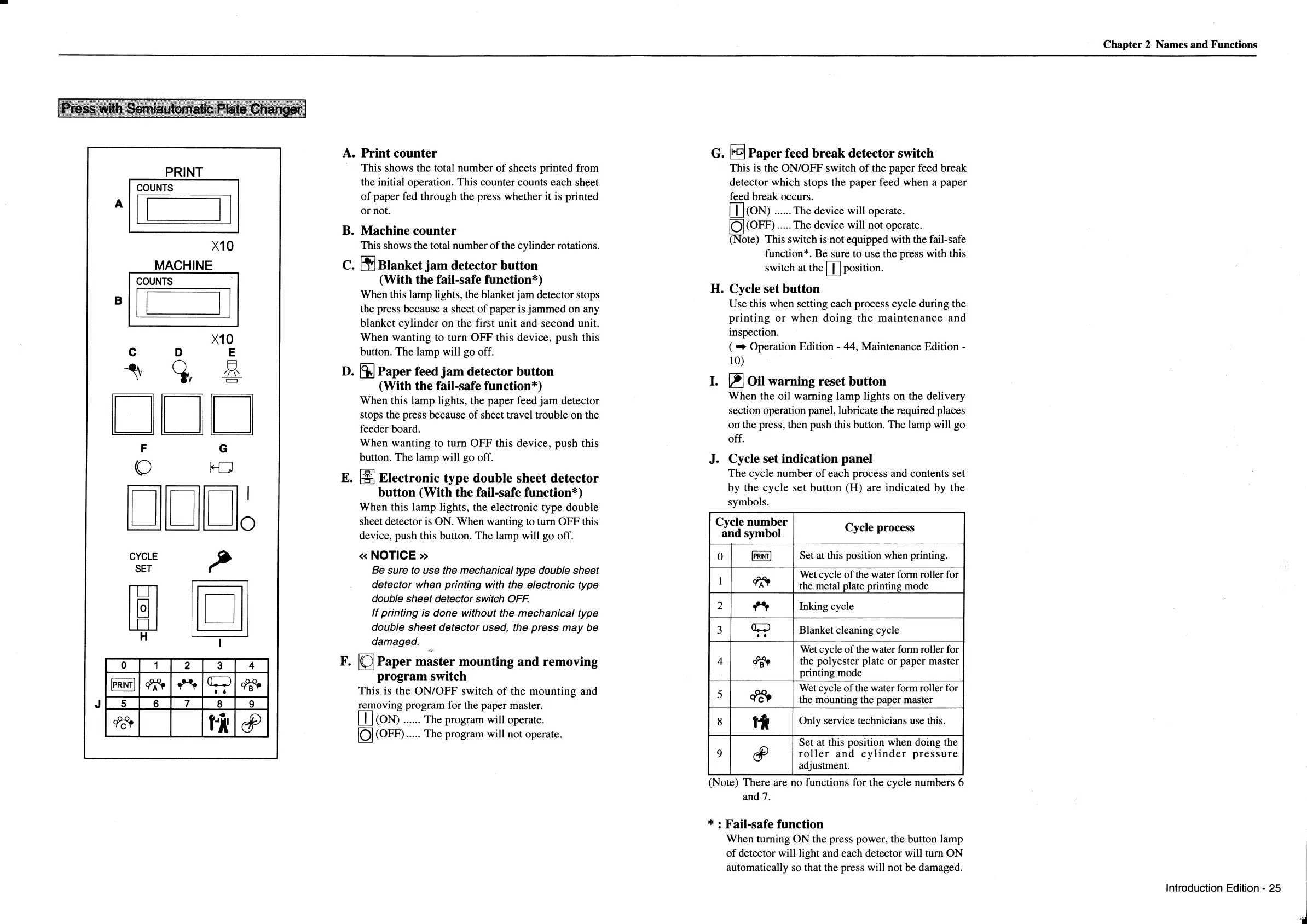

A.
Print
counter
This shows the total number
of
sheets printed from
the initial operation. This counter counts each sheet
of
paper fed through the press whether it is printed
or
not.
B. Machine
counter
This shows the total number
of
the cy Iinder rotations.
C.
~
Blanket
jam
detector
button
(With
the
fail-safe function*)
When this lamp lights, the blanket
jam
detector stops
the press because a sheet
of
paper is
jammed
on any
blanket
cylinder
on the first unit and second unit.
When
wanting
to
tum
OFF
this device,
push
this
button.
The
lamp
will go off.
D.
~
Paper
feed
jam
detector
button
(With
the
fail-safe function*)
When this lamp lights, the paper feed
jam
detector
stops the press because
of
sheet travel trouble on the
feeder board.
When
wanting
to
tum
OFF
this device,
push
this
button. The lamp will go off.
E.
~
Electronic
type double sheet
detector
button
(With the fail-safe function*)
When
this
lamp
lights, the electronic type double
sheet detector is ON. When wanting to
tum
OFF
this
device, push this button. The lamp will go off.
«NOTICE»
Be sure to use the mechanical type double sheet
detector when printing with the electronic type
double sheet detector switch
OFF
If
printing
is
done
without the
mechanical
type
double
sheet
detector
used, the
press
may
be
damaged.
F.
[Q]
Paper
master
mounting
and
removing
program
switch
This
is
the
ON/OFF
switch
of
the
mounting
and
removing program for the paper master.
OJ
(ON) ...... The program will operate.
[QJ
(OFF) ..... The program will not operate.
G.
~Paper
feed
break
detector switch
This is the ON/OFF switch
of
the paper feed break
detector which stops the
paper
feed when a
paper
feed break occurs.
OJ
(ON) ...... The device will operate.
[QJ
(OFF) ..... The device will not operate.
(Note) This switch is not equipped with the fail-safe
function*.
Be
sure to use the press with this
switch at the
OJ
position.
H. Cycle set
button
Use this when setting each process cycle during the
printing
or
when
doing
the
maintenance
and
inspection.
(
.,.
Operation Edition - 44, Maintenance Edition -
10)
I.
~
Oil warning reset
button
When
the oil warning
lamp
lights on the delivery
section operation panel, lubricate the required places
on the press, then push this button. The lamp will
go
off.
J. Cycle set indication panel
The cycle number
of
each process and contents set
by
the
cycle
set
button
(H) are
indicated
by
the
symbols.
Cycle
number
Cycle process
and
symbol
0
jPRINTj
Set at this position when printing.
I
~
Wet
cycle
of
the water form roller for
the metal plate printing mode
2
n
Inking cycle
3
0
Blanket cleaning cycle
••
Wet
cycle
of
the water form roller for
4
~
the polyester plate or paper master
printing mode
5
~
Wet
cycle
of
the water form roller for
the mounting the paper master
8
Tt
Only service technicians use this.
&
Set at this position when doing the
9
roller
and
cylinder
pressure
adjustment.
(Note) There are no functiOns for the cycle numbers 6
and 7.
* : Fail-safe function
When turning
ON
the press power, the button lamp
of
detector will light and each detector will tum
ON
automatically so that the press will not be damaged.
Chapter
2 Names
and
Functions
Introduction Edition - 25
