Chapter 1 Operation Procedures
Operation Edition - 4
(1)
(1)
/

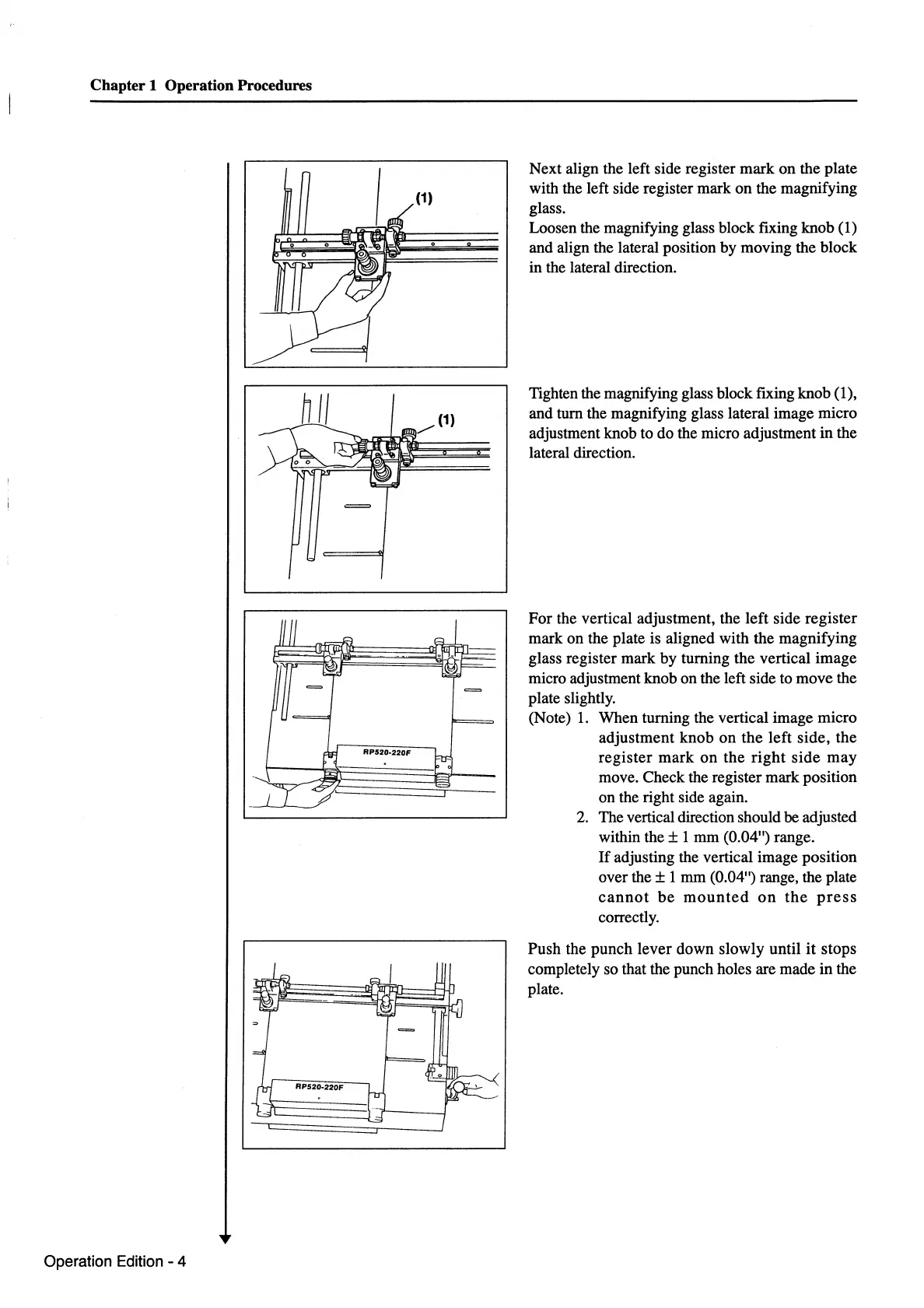

Next align the left side register mark on the plate
with the left side register mark on the magnifying
glass.
Loosen the magnifying glass block fixing knob
(1)
and align the lateral position by moving the block
in the lateral direction.
Tighten the magnifying glass block fixing knob (1),
and turn the magnifying glass lateral image micro
adjustment knob to do the micro adjustment in the
lateral direction.
For the vertical adjustment, the left side register
mark on the plate is aligned with the magnifying
glass register mark by turning the vertical image
micro adjustment knob on the left side to move the
plate slightly.
(Note)
1.
When turning the vertical image micro
adjustment knob on the left side, the
register mark on the
right
side
may
move. Check the register mark position
on the right side again.
2.
The vertical direction should be adjusted
within the
± 1 mm (0.04") range.
If
adjusting the vertical image position
over the
± 1 mm (0.04") range, the plate
cannot
be
mounted
on
the
press
correctly.
Push the punch lever down slowly until it stops
completely so that the punch holes are made in the
plate.
