Ryobi 765r - Parts List

E22
PARTS LIST

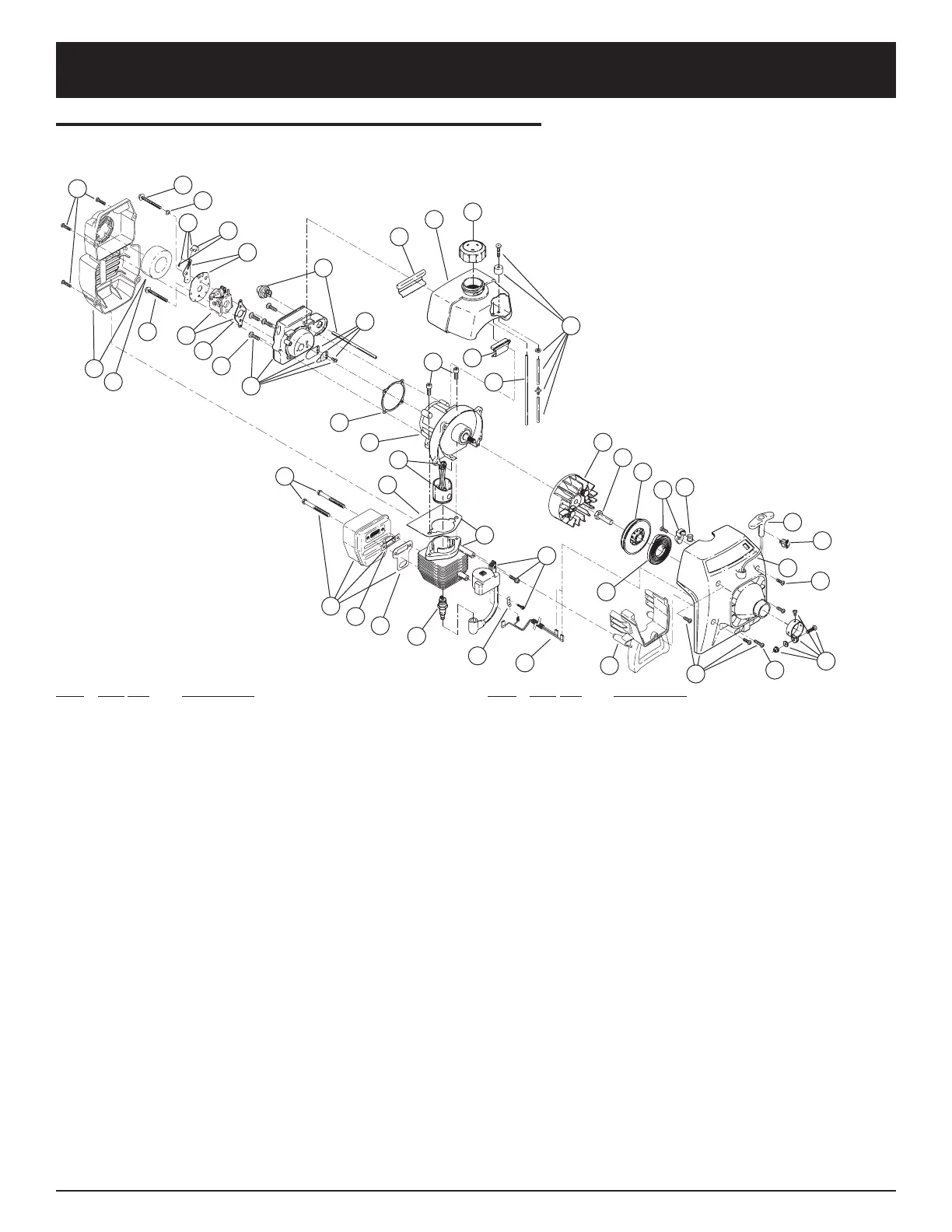

ENGINE PARTS - RYOBI 765r
2-CYCLE GAS TRIMMER
PPN - 41BD765G034
34
1
2
3
8
10
12
3
4
5
7
6
11
13
14
15
44
45
21
46
19
16
17
18
20
23
24
25
28
29
27
30
31
33
34
35
32
22
36
47
37
43
38
39
41
26
9
40
42
Item
Part No. Description
28 791-181889 Pulley Retainer Assembly
29 753-04241 Switch Assembly (includes 36)
30 791-181079 Pull Handle
31 791-613103 Rope
32 753-04300 Starter Housing Assembly
(includes 25-31, 33 & 34)
33 791-181862 Screw
34 791-181345 Screw
35 791-153597 Upper Clamp Assembly
36 753-04242 Wire Lead
37 753-04324 Module Assembly
38 791-610311 Spark Plug
39 753-04159 Exhaust Gasket
40 791-182066 Muffler Assembly (includes 39, 41 & 42)
41 791-147575 Muffler Mounting Bolt Assembly
42 791-182747 Sparks Arrestor
43 753-04323 Cylinder Assembly (includes 46 & 47)
44 753-1207 Piston and Rod Assembly
45 753-1197 Cylinder Gasket
46 791-182723 Cylinder Bolt
47 791-611063 Ground Tab
* 753-04134 Engine Gasket Kit
* 791-180090 O.E.M. Carburetor Repair Kit
* 791-180091 Gasket Diaphragm Repair Kit
* 753-1209 Piston Ring
* 753-04322 Short Block Assembly
(includes 10, 15, 38, 43-46)
* Items Not Shown
Item Part No. Description
1 791-180349 Air Cleaner/Muffler Cover Assembly
(includes 2 & 34)
2 791-180350 Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw Assembly
4 791-180226 Wavey Washer
5 791-182061 Choke Lever Assembly (includes 6)
6 791-182070 Choke Knob and Screw
7 791-182060 Choke Assembly (includes 5 & 6)
8 753-04320 Carburetor Assembly (includes 9 & 20)
9 791-610675 Carburetor Gasket
10 791-181860 Carb Mount Screw
11 791-181558 Primer and Hose Assembly
12 753-1196 Carb Mount Assembly (includes 10 & 13)
13 791-684451 Reed Assembly
14 753-1208 Carburetor Mount Gasket
15 753-04321 Crank Case Service Assembly (includes 10)
16 791-612134 Rear Mounting Pad
17 791-181152 Fuel Tank Assembly (includes 18 & 20)
18 791-182271 Fuel Cap Assembly
19 791-181168 Fuel Return Line
20 791-682039 Fuel Line Assembly
21 791-145308 Front Mounting Pad
22 791-182064 Shroud Extension & Stand
23 791-182736 Flywheel Assembly
24 791-610303 Square Nut Drive
25 753-04232 Recoil Pulley Assembly
26 791-613102 Recoil Spring
27 791-611061 Rope Guide
