Ryobi 767r - Installing and Adjusting the J-Handle (Model 775 r)

5. Tighten the clamp screws evenly until the
J-handle is secure.
ASSEMBLY INSTRUCTIONS
10
4. While holding the unit in the operating
position (Fig. 6), position the J-handle to the
location that provides you the best grip.
Fig. 6
Decal
Fig. 5
Model 775r

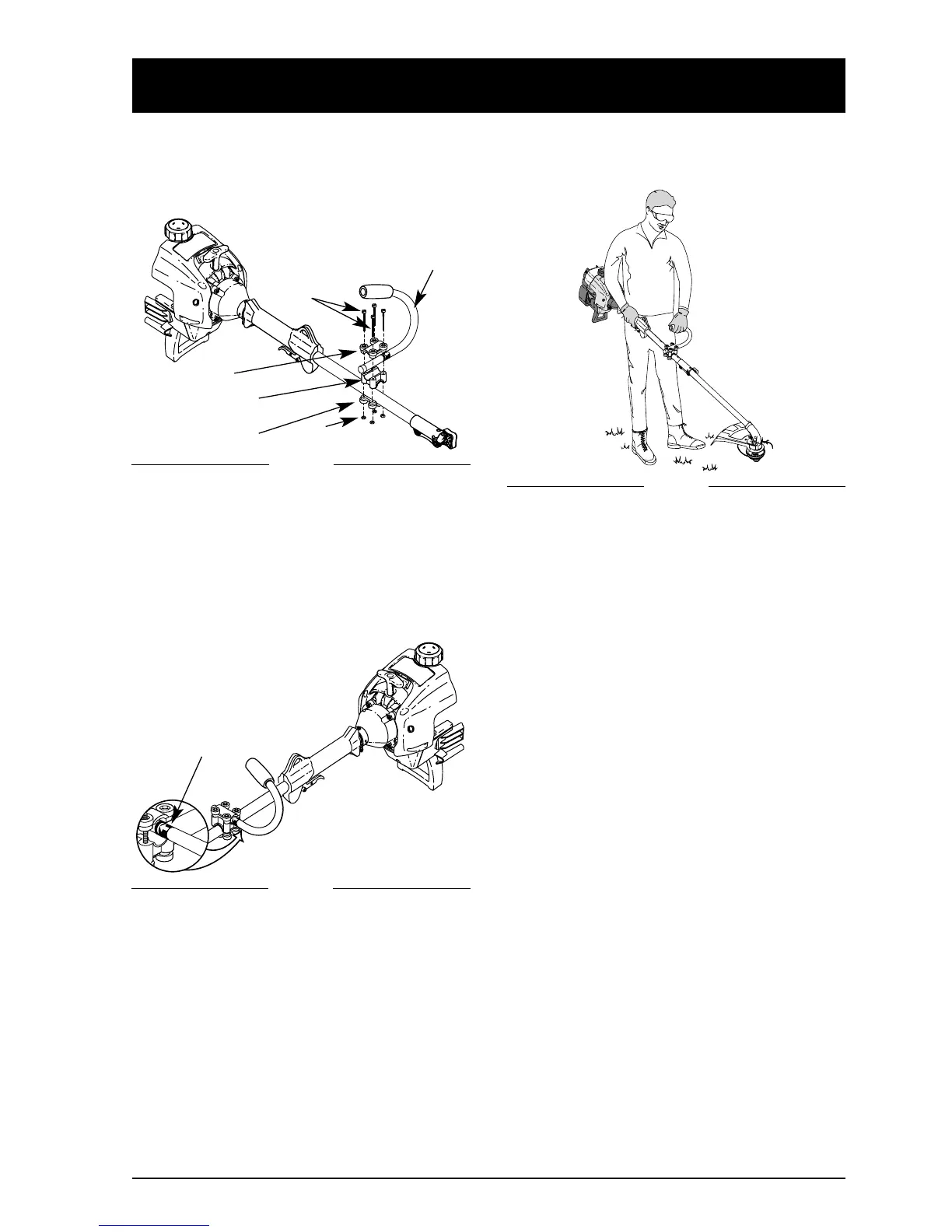

INSTALLING AND ADJUSTING THE
J-HANDLE - MODEL 775r
1. Place the J-handle between the top and
middle clamp pieces (Fig. 4).
(4) Screws
Top Clamp
J-Handle
Middle Clamp
Bottom Clamp
Nuts
2. Install, one at a time, the four (4) screws and
four (4) hex nuts through the top, middle and
bottom clamps with a large Phillips
screwdriver. Do not tighten until you make
the handle adjustment.
3. Slide the J-handle out until the arrow/white
line on the decal touches the clamp
assembly (Fig. 5).
Fig. 4
