ASSEMBLY INSTRUCTIONS
10
Fig. 4
Fig. 5
Fig. 6
INSTALLING THE CUTTING ATTACHMENT
SHIELD
Use the following instructions if the cutting attachment
shield on your unit is not installed.
WARNING: Never operate the trimmer
without the cutting attachment shield in
place to prevent serious personal injury.

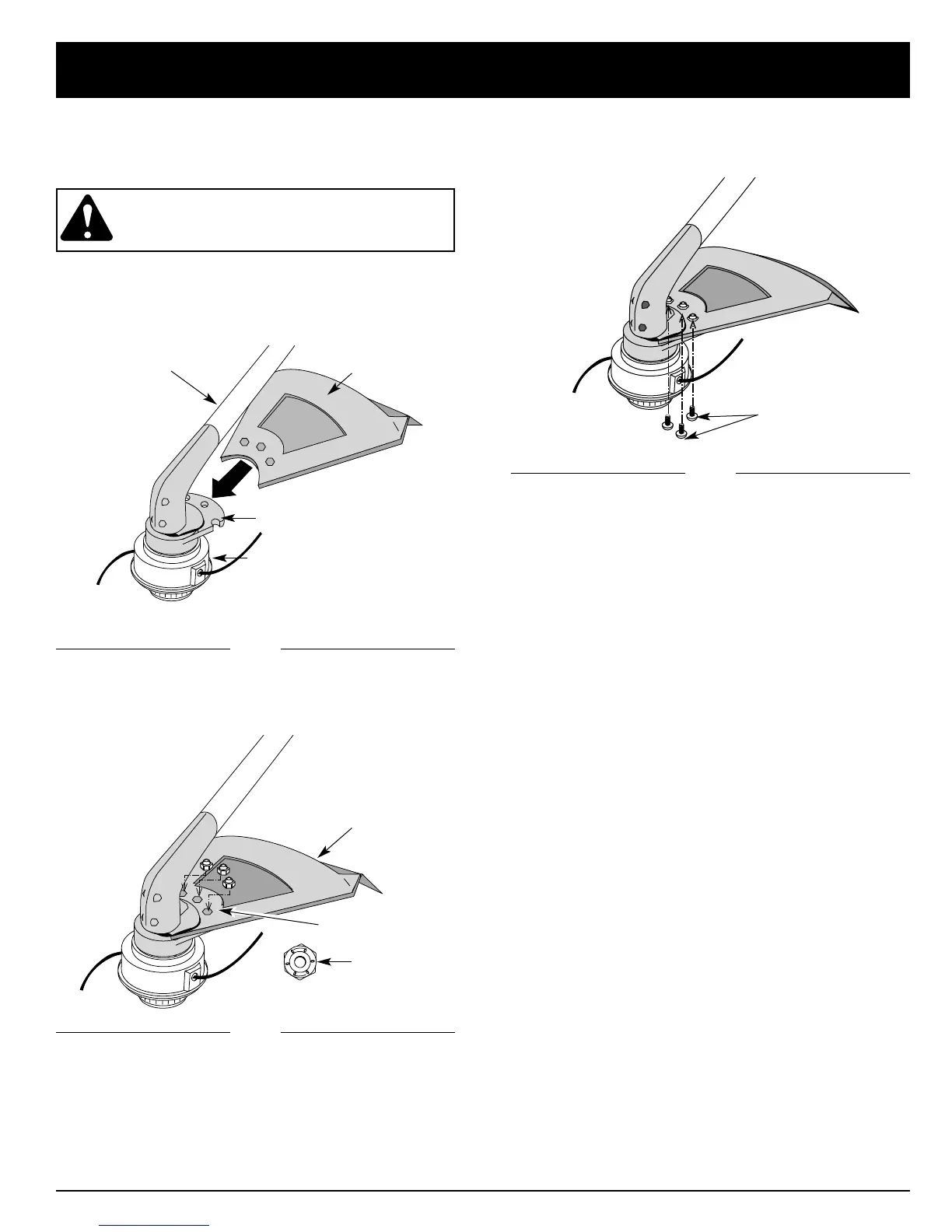

1. Slide the cutting attachment shield into the shield
mount on the cutting attachment. Align the screw
holes in the shield with the holes in the cutting
attachment (Fig. 4).
Screws
Shaft Housing
Hex Lock Nut
Cutting Attachment
Shield
Cutting Attachment
2. Place a hex lock nut into one of the three recessed
holes on the top of the cutting attachment shield
(Fig 5).
3. Install a screw into the hole from the bottom of the
cutting attachment shield and screw it into the nut
installed in step #2 (Fig 6). Do not tighten.
4. Repeat steps 2 and 3 until all three screws have
been started, then tighten securely.
Cutting Attachment
Shield
Recessed Holes
Shield Mount
