9
Inch
1
0
1
2
3
Inch
1
0
1
2
3
FEED
DIRECTION
3

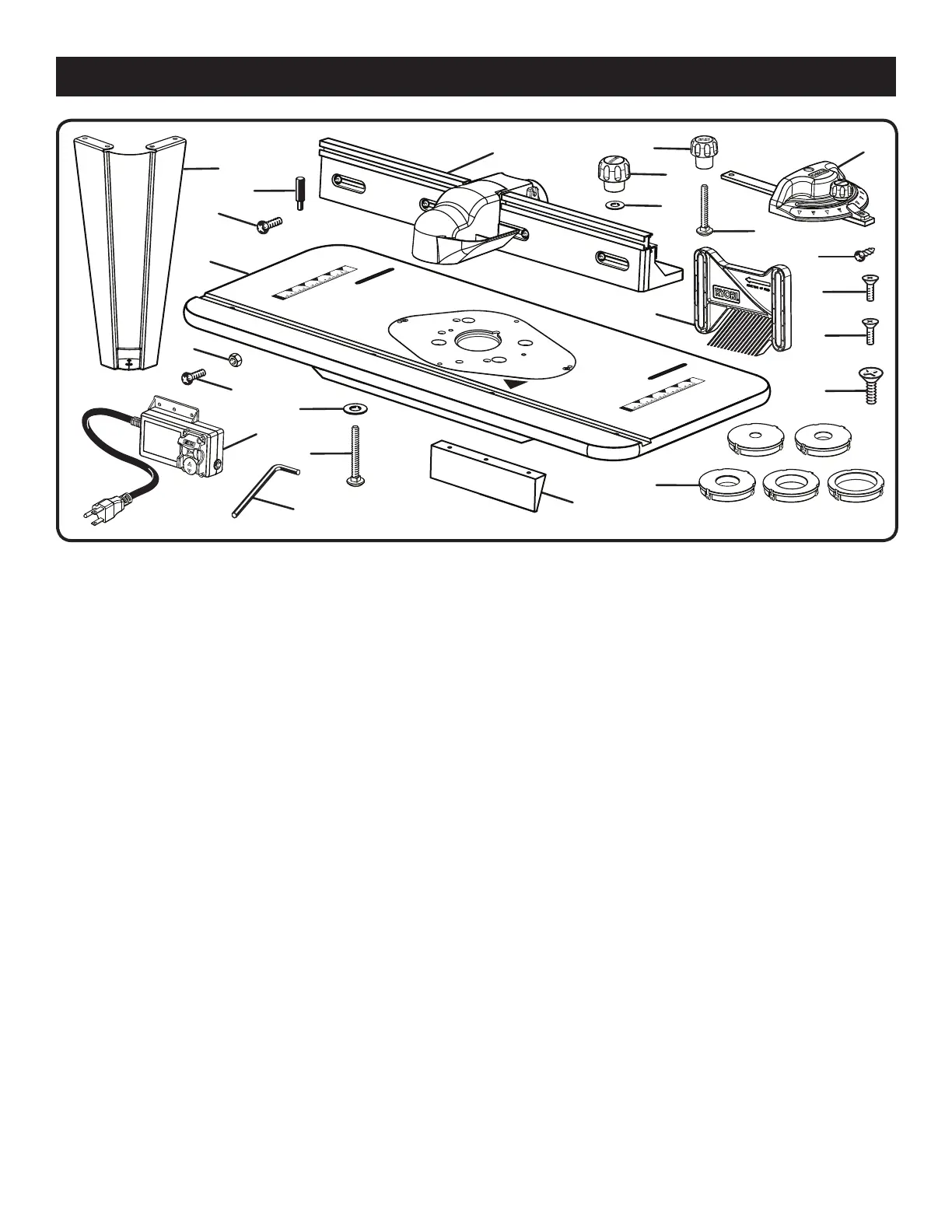

PACKING LIST
1. Table Leg (4)
2. Starting Pin
3. Table Leg Phillips Head Screw (16)
4. Table Top
5. Switch Box Nut (3)
6. Switch Box Screw (3)
7. Switch Box
8. Carriage Bolt Washer (2)
9. Carriage Bolt (2)
10. Hex Key (1)
11. Under Table Guard (2)
12. Throat Plates (5)
13. Router Insert Plate Screws (5/16-18 x 3/4 in.) (3)
14. Router Insert Plate Screws (10-24 x 5/8 in.) (3)
15. Router Insert Plate Screws (10-32 x 5/8 in.) (3)
16. Under Table Guard Screw (6)
17. Miter Gauge
18. Fence Assembly
19. Fence Lock Knobs (2)
20. Featherboard
21. Featherboard Bolts (2)
22. Fence Lock Knob Washer (2)
23. Featherboard Lock Knobs (2)
24. Operator’s Manual (not shown)
1
5
6
7
8
9
10
11
19
20
15
16
17
Fig. 4
3
12
2
4
14
13
18
22
21
23
ASSEMBLY
