Ryobi EXPAND-IT ACT05 User Manual

7
4
3
2
1
D
C
1
2
3
4
A
B
1 5 6
1
2
1
2
3
4
1/4-20 UNC-2A
3
2
4
1
1/4-20 UNC-2A
98 10
GETTING STARTED GETTING STARTED GETTING STARTED
A
B
C
D
A
B
C
D
1
2
1
2
3
32 4
Release the hook.
Install the metal cover.
Install and tighten the screw onto the metal cover.
1
2
7
Always wear safety goggles or safety glasses with side
shields when operating the product. Failure to do so could
result in objects being thrown into your eyes resulting in
possible serious injury.

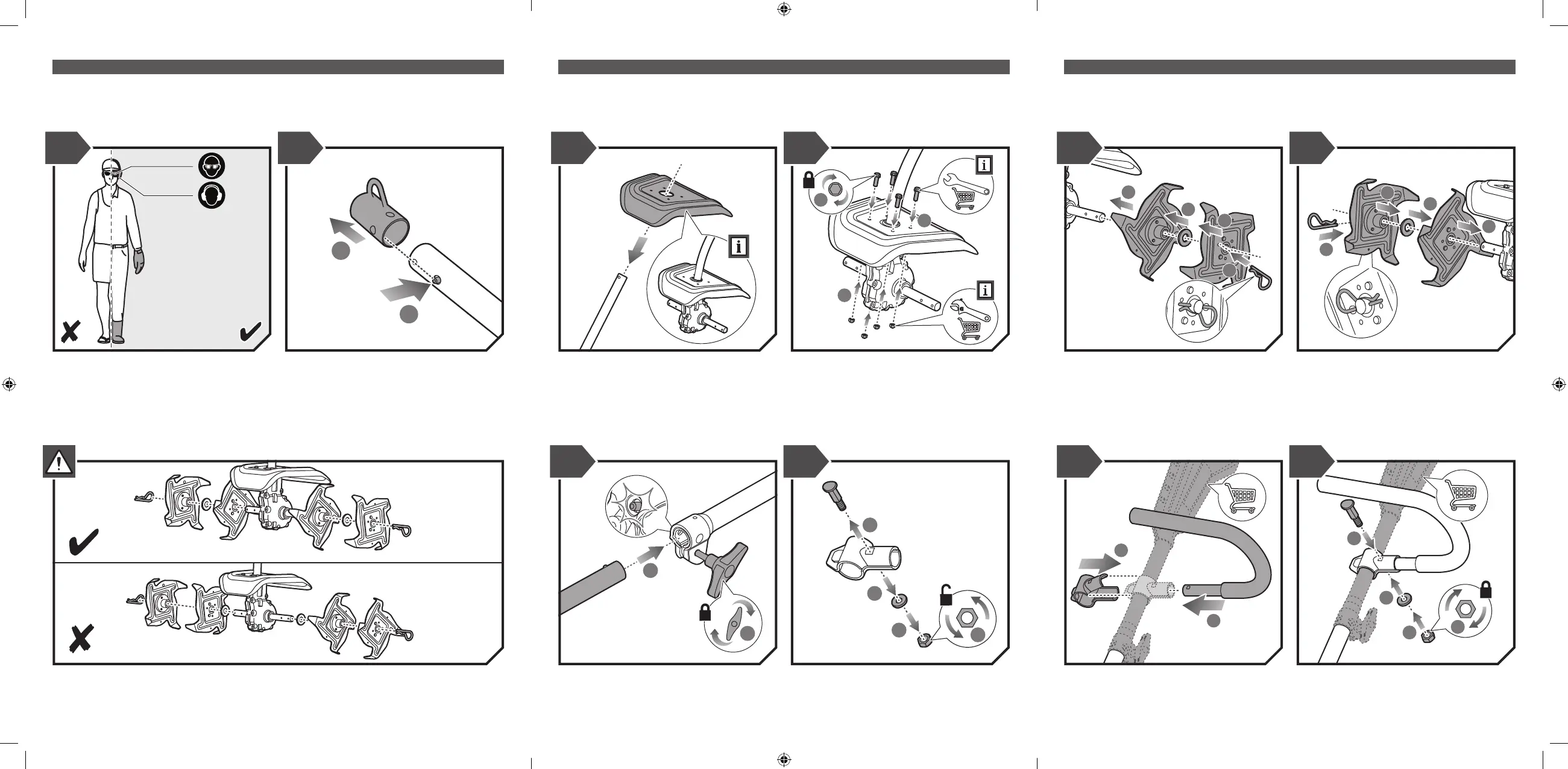

Place tine B on the tine shaft to the right of the gear box.
The stamped side of the tine should face away from the
gear box. Place a felt washer on the tine shaft. Place the
outer tine labeled A on the right side of the tine shaft. The
stamped side should face in toward tine B. To secure the
tines to the tine shaft, insert the hitch pin into the holes
located on the side of the tine shaft.
Place tine C on the tine shaft to the left of the gear box. The
stamped side of the tine should face away from the gear
box. Place a felt washer on the tine shaft. Place the outer
tine labeled D on the left side of the tine shaft. The stamped
side should face in toward tine C. To secure the tines to the
tine shaft, insert the hitch pin into the holes located on the
side of the tine shaft.
Attach the lower shaft. Tighten the knob securely. NOTE: The unit will not operate properly if the tines are installed incorrectly. Remove the nut, at washer, and bolt from the top clamp. Attach the cultivator attachment and the “J” handle. Install the bolt, at washer, and the nut. Tighten the nut securely.
