PRODUCT SPECIFICATIONS
Bar length
RY3714 .................................................... 14 in.
RY3716 .................................................... 16 in.
Chain pitch .................................................3/8 in.
Chain gauge ............................................ .050 in.
Chain type ........................Low Profile Skip Tooth

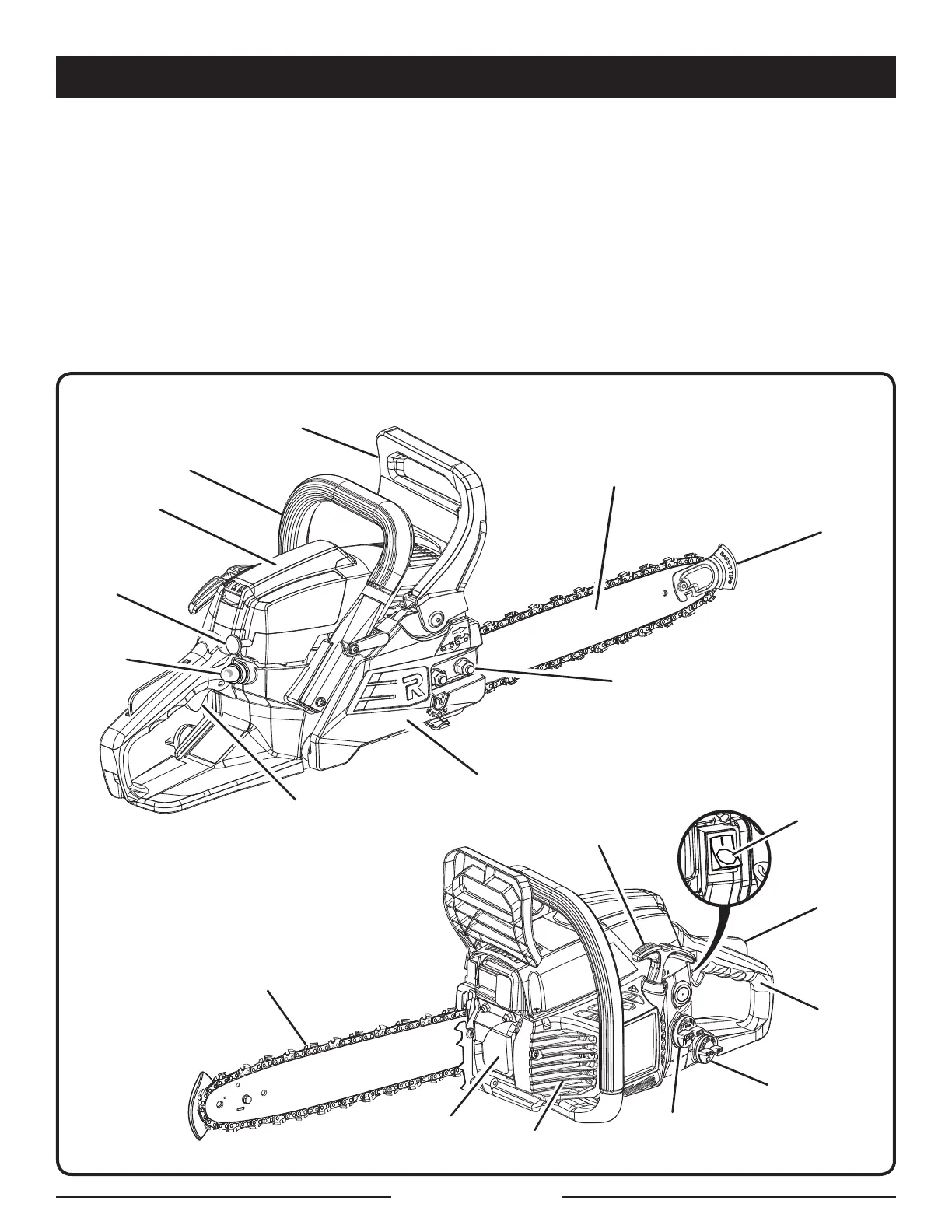

Fig. 1
PRIMER
BULB
CHAIN BRAKE / FRONT
HAND GUARD
FRONT HANDLE
CYLINDER
COVER
SAFE-T-TIP™
ANTI-KICKBACK
NOSE GUARD
CHOKE KNOB
BAR
MOUNTING NUTS
CLUTCH COVER
GUIDE BAR
REAR
HANDLE
THROTTLE
TRIGGER
STOP
SWITCH
FUEL CAP
STARTER/FAN
HOUSING
STARTER GRIP
AND ROPE
TRIGGER
RELEASE
CHAIN OIL
CAP
LOW KICKBACK
SAW CHAIN
FEATURES
Chain drive links
RY3714 .........................................................52
RY3716 .........................................................56
Drive sprocket ..........................................6-tooth
Engine displacement .................................... 38cc
Idle engine speed .........2,700 ± 200 r/min. (RPM)
Fuel tank capacity ...................................10.4 oz.
Chain lubricant tank capacity ....................7.1 oz.
MUFFLER
