ADJUSTMENTS
WARNING:
To prevent accidental starting that could cause serious
personal injury, always disconnect the cultivator from any
power source when making adjustments.
ADJUSTING WHEEL POSITION

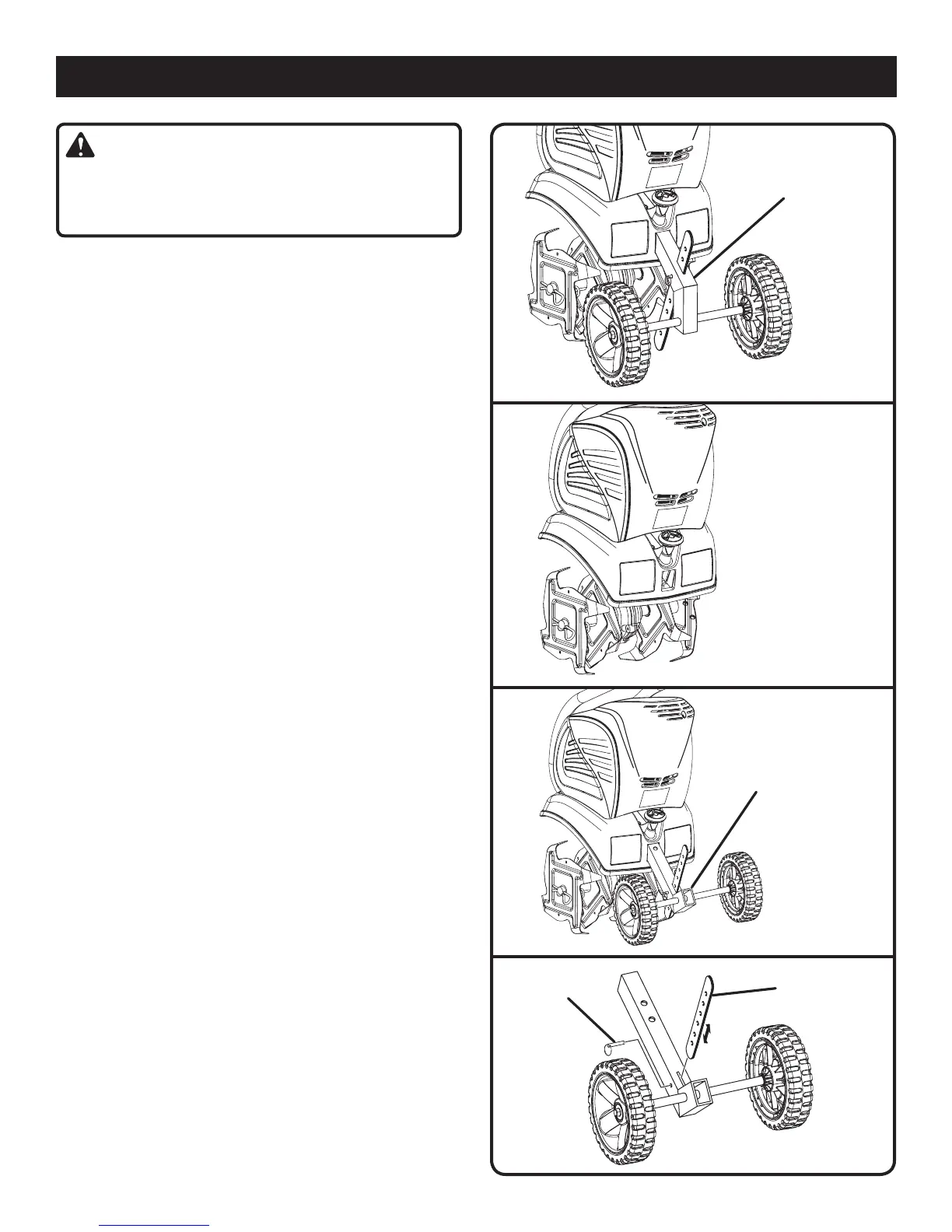

See Figures 11 - 13.
The wheel position of the unit is adjustable. Holes on the
wheel support rod offer different heights to choose from in
both the A and B positions.
n Install the wheel assembly accessory in position A to
transport the cultivator to and from the work area.
n For general cultivating, remove the wheel assembly to al-
low deep penetration of the tine blades into the cultivating
surface.
n The wheel assembly accessory may be installed in posi-
tion B to allow use of the drag bar during cultivating.
ADJUSTING DRAG BAR POSITION
See Figure 14.
The drag bar may be used to help control the cultivator’s
speed and depth of operation. It is located in a slot on the
wheel assembly support and is secured with a pull pin.
To adjust the height of the drag bar:
n Remove the pull pin.
n Shift the drag bar up or down, depending on the depth
you are trying to achieve.
n Reinsert the pull pin through the wheel support and drag
bar to secure.
Fig. 14
Fig. 13
Fig. 12
Fig. 11
WHEEL
SUPPORT
POSITION A
WHEEL
SUPPORT
POSITION B
DRAG
BAR
PULL PIN
WHEEL ASSEMBLY
ACCESSORY
REMOVED FOR
GENERAL CULTIVATING
